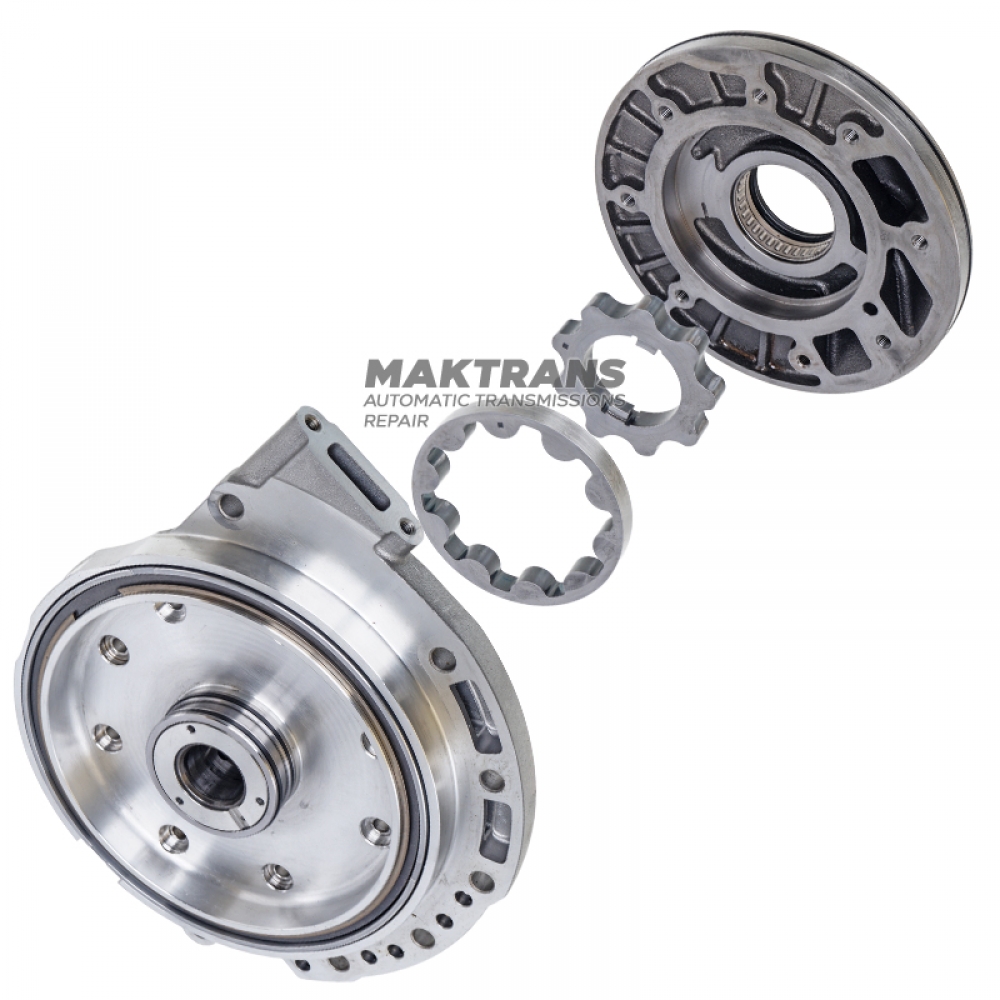

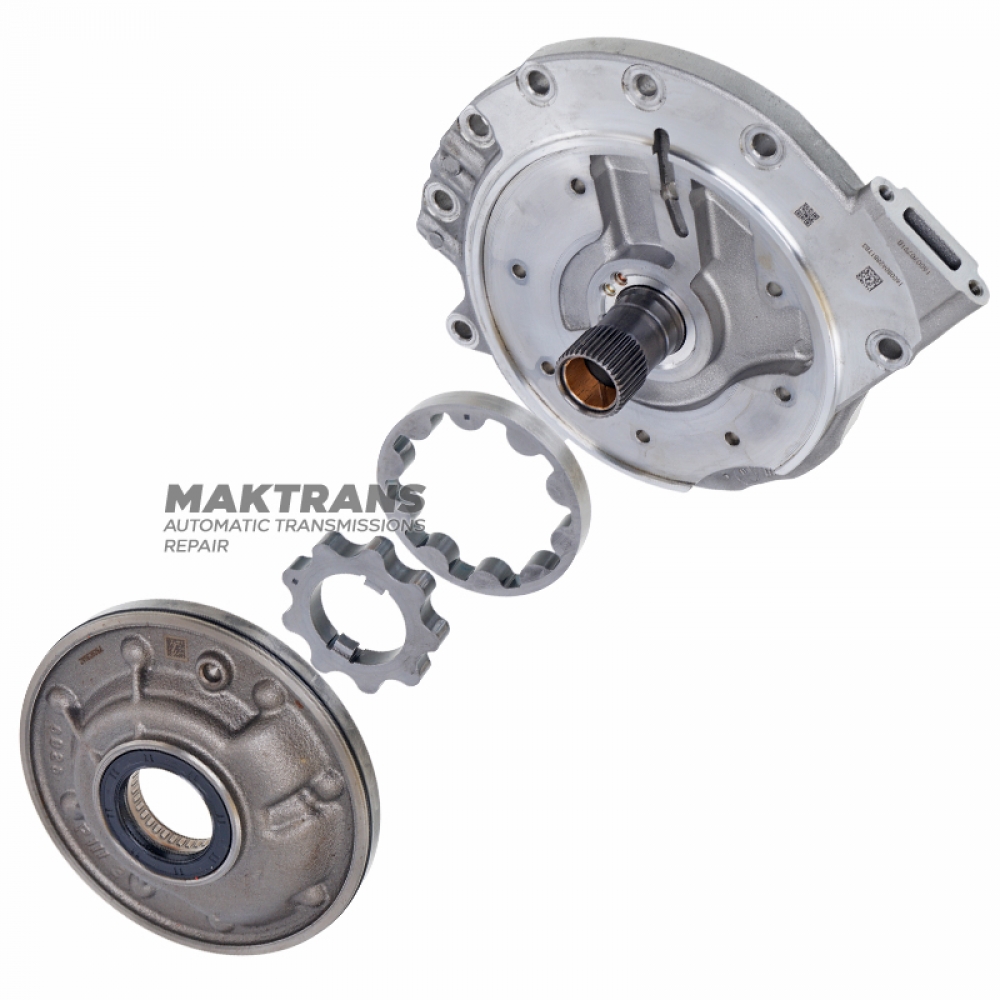

Oil pump A6MF1 09-up - 46100-3B660, 461003B660 (with a bearing on the inner side of the gear housing)

Oil pump hub:

• Overall height - 85 mm;

Front side:

• Stator height - 50 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 31.10 mm;
• Inner diameter of the sleeve - 22.95 mm;

Back side:

• Hub height - 21 mm;
• Hub outer diameter - 56.30 mm;

Oil pump gear housing:

• Height - 33 mm;
• Outer body diameter - 160 mm;
• Inner diameter for gears - 89.60 mm;
• The depth of the seat for the gears is 11.50 mm;

Pinion gear:

• Thickness - 11.30 mm;
• Inner diameter - 43.10 mm;
• Number of teeth - 9 pcs.;

Driven gear:

• Thickness - 11.30 mm;
• Outer diameter - 89.75 mm;
• Number of teeth - 10 pcs.;

461003B600

Hyundai Avante MD (2.0L), Azera (3.3L, 3.8L), Elantra (1.8L, 2.0L), Grandeur (2.4L, 2.7L), i30 (1.2L, 1.6L, 1.8L, 2.0L), IX35 (2.0L, 2.4L), Santa Fe (2.0L, 2.4L, 2.7L, 3.3L, 3.5L), Sonata (2.0L, 2.4L), Tucson (2.0L, 2.4L), Tucson ix (2.0L, 2.4L), Verna (1.6L)

Kia Carens (1.7L, 2.0L), Forte (1.8L, 2.0L, 2.4L), Grand Carnival (2.2L, 3.5L), K5 (2.0L, 2.4L, 2.7L), K7 (2.0L, 2.4L, 2.7L), Lotze (2.0L, 2.4L), Opirus (2.7L), Optima (2.0L, 2.4L), Sedona (3.5L), Sorento (2.4L, 2.7L, 3.5L), Soul (1.6L, 2.0L), Sportage (2.0L, 2.4L)
