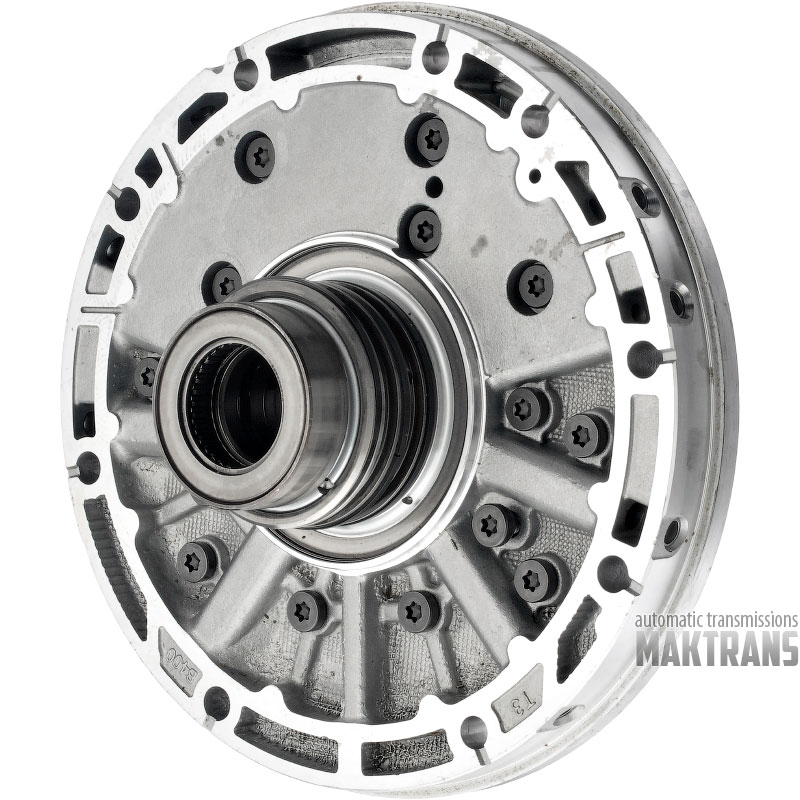

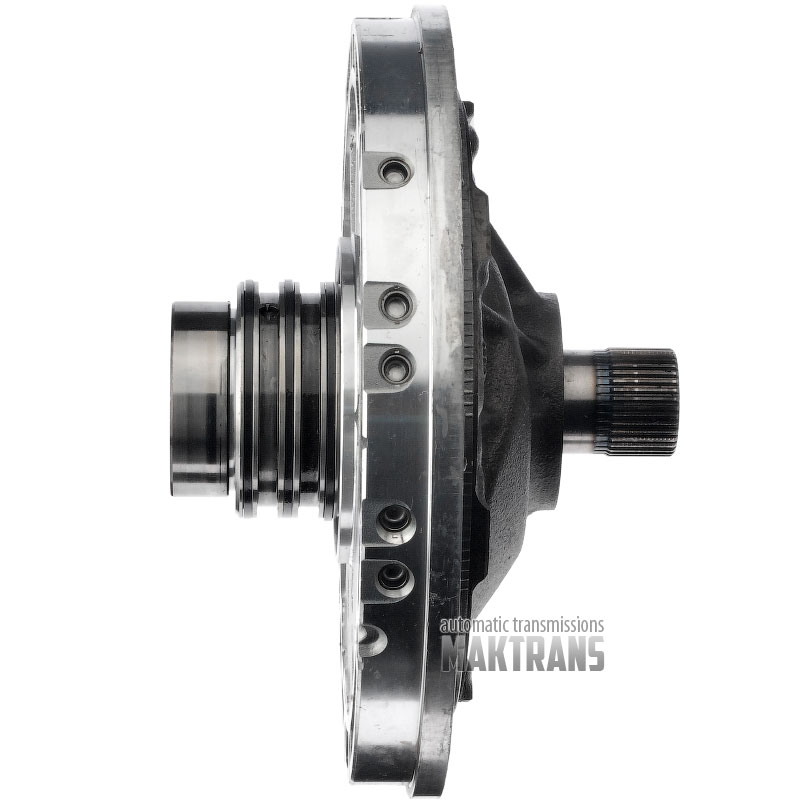

Oil pump Toyota / Lexus A960E - 3530122030, 3537022070, 3532222140, 3532122140

Oil pump hub:

• Overall hub height - 141 mm;

Front side:

• Stator height - 72 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 30.80 mm;
• Inner diameter of the sleeve - 21.50 mm;

Outside body diameter - 222.35 mm | 215.05 mm;

Back side :

• Stator height - 50 mm;
• Number of Teflon rings - 3 pcs.;
• Outer diameter (by Teflon rings) - 66.95 mm;
• Outer diameter (working part) - 55.25 mm;
• Bearing inner diameter - 33.25 mm;
• Bearing marking - DB503307A;

Oil pump gear housing:

• Overall height - 38 mm;
• Outer body diameter - 168.80 mm;

Oil pump gears:

Pinion gear:

• Thickness - 10 mm;
• Inner diameter - 38.15 mm;
• Number of teeth - 9 pcs.;

Driven gear:

• Thickness - 10 mm;
• Outer diameter - 93.40 mm;
• Number of teeth - 10 pcs.;

• Lexus GS300 (V6 3.0L), GS400 (4.0L), GS430 (4.3L), IS250 (V6 2.5L), IS350 (3.5L)

Tags: 3530122030, 3537022070, 3532222140, 3532122140
