Oil pump TOYOTA AB60E, AB60F — (gear thickness 11.70 mm), 353010C040, 353010C030, 353700C020, 353210C080, 353220C080

Oil pump housing:

• Total height - 43 pcs.;
• The inner diameter of the sleeve is 45 mm;
• Outer case diameter - 204.55 mm;

Oil pump gears:

Pinion:

• Thickness - 11.70 mm;
• Number of teeth - 9 pcs.;
• Inner diameter - 45.05 mm;

Driven gear:

• Thickness - 11.70 mm;
• Number of teeth - 10 pcs.;
• Outer diameter - 93.40 mm;

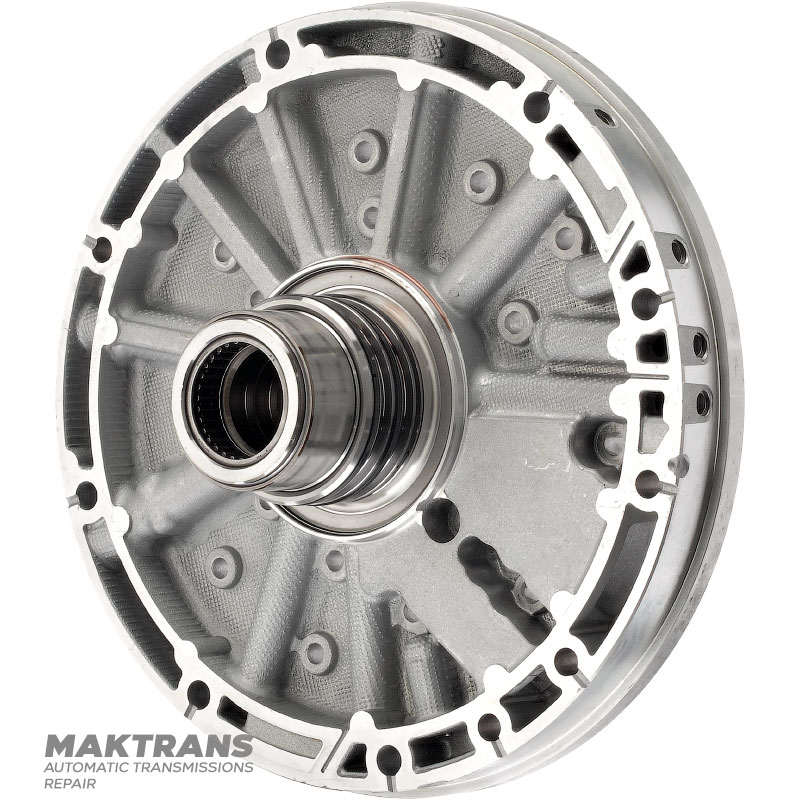

Oil pump hub:

• Overall height - 165 mm;
• Outer body diameter - 262.40 mm;

Front side:

• Stator height - 80 mm;
• Number of splines - 43 pcs.;
• The outer diameter of the splined part is 34.75 mm;
• Inner diameter of the sleeve - 25.85 mm;

Back side:

• Overall height - 59 mm;
• Outer diameter of the working part - 57.10 mm;
• Number of Teflon rings - 3 pcs.;
• Outer diameter over Teflon rings - 66.65 mm;

353010C040, 353010C030, 353700C020, 353210C080, 353220C080

Lexus GX470 (V8 4.6L), LX570 (V8 5.7L)

Toyota Landcruiser (5.7L), Sequoia (5.7L), Tundra (4.6L, 5.7L)
