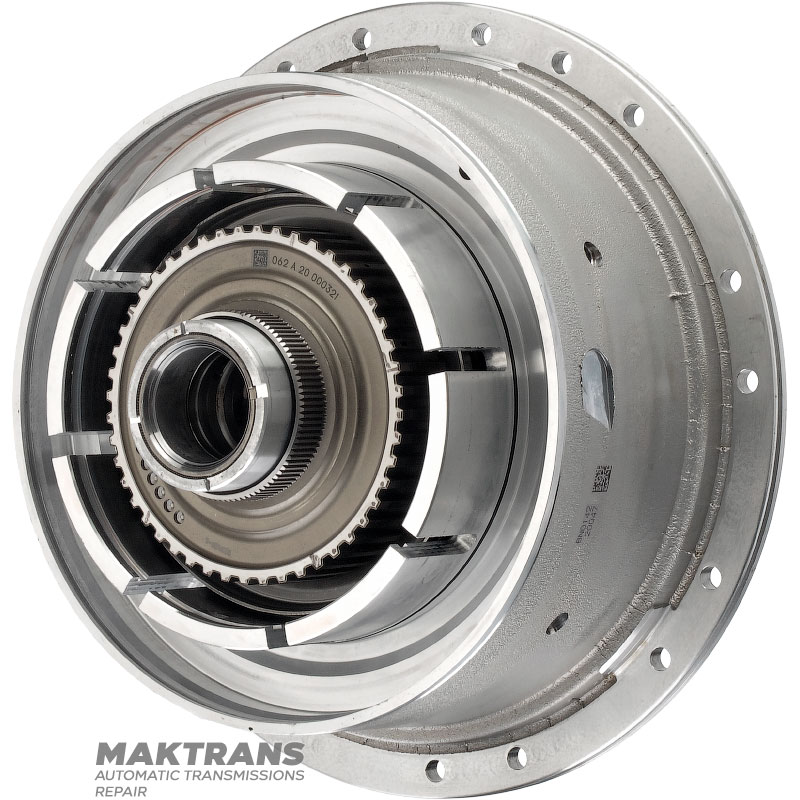

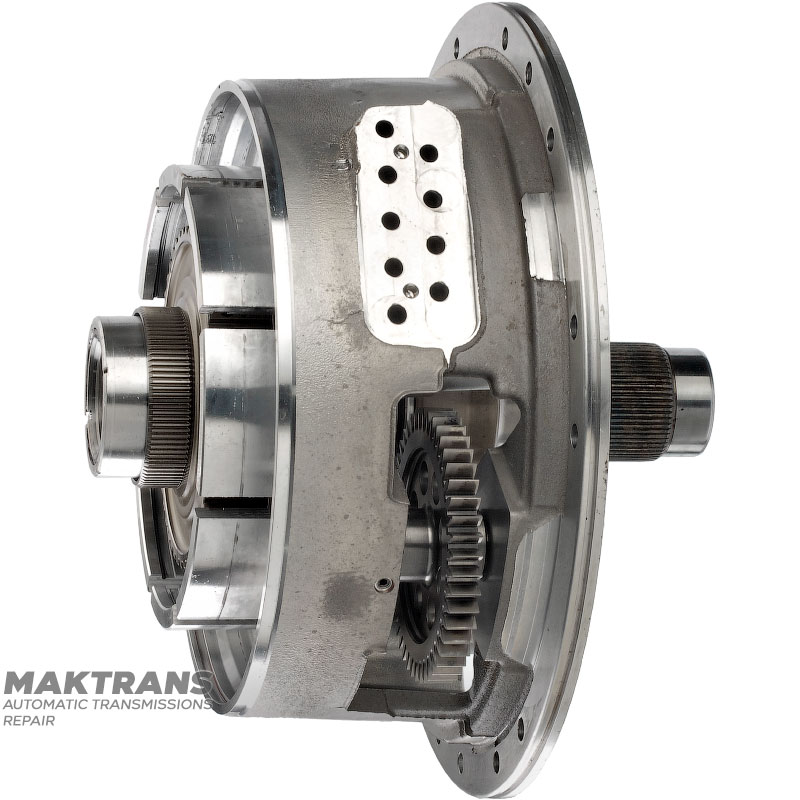

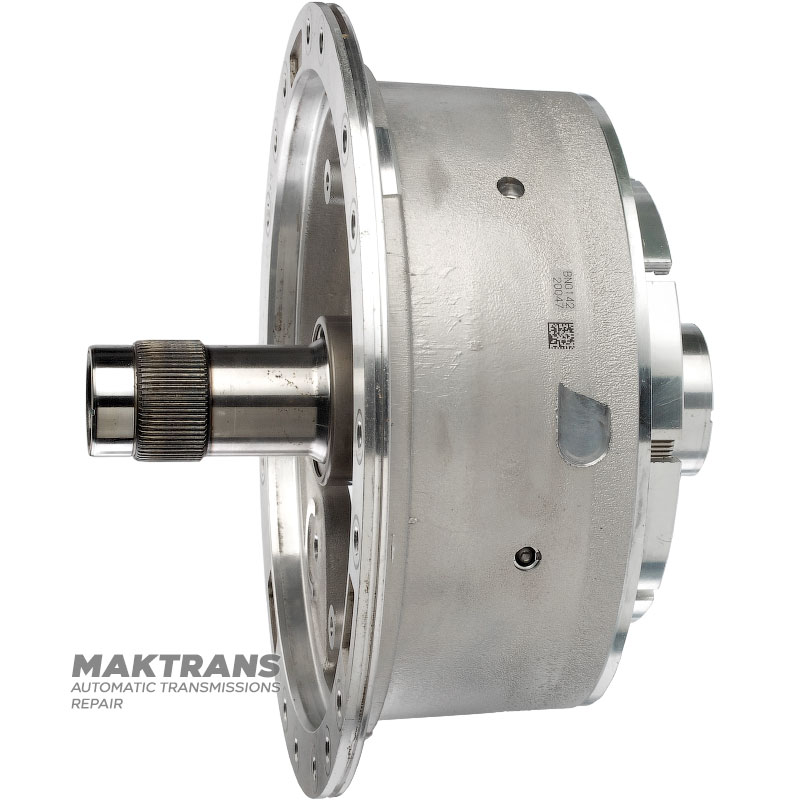

Oil pump hub FORD 10R140 - LC3P-7F335-AB

Oil pump hub:

• Overall height - 247 mm;

Front side:

• Stator height - 145 mm;
• Number of splines on the stator - 64 pcs.;
• The outer diameter of the splined part is 48.65 mm;

Oil pump gears:


Pinion:

• Overall height - 32.60 mm;
• Number of teeth - 52 pcs.;
• Gear outer diameter - 113.30 mm;
• Number of splines on the inner side - 52 pcs.;

Driven gear:

• Number of teeth - 46 pcs.;

Back side:


B Brake Overrunning Clutch:

• Number of teeth on the hub/overrunning clutch - 48 pcs.;
• Outer diameter - 134.20 mm;
