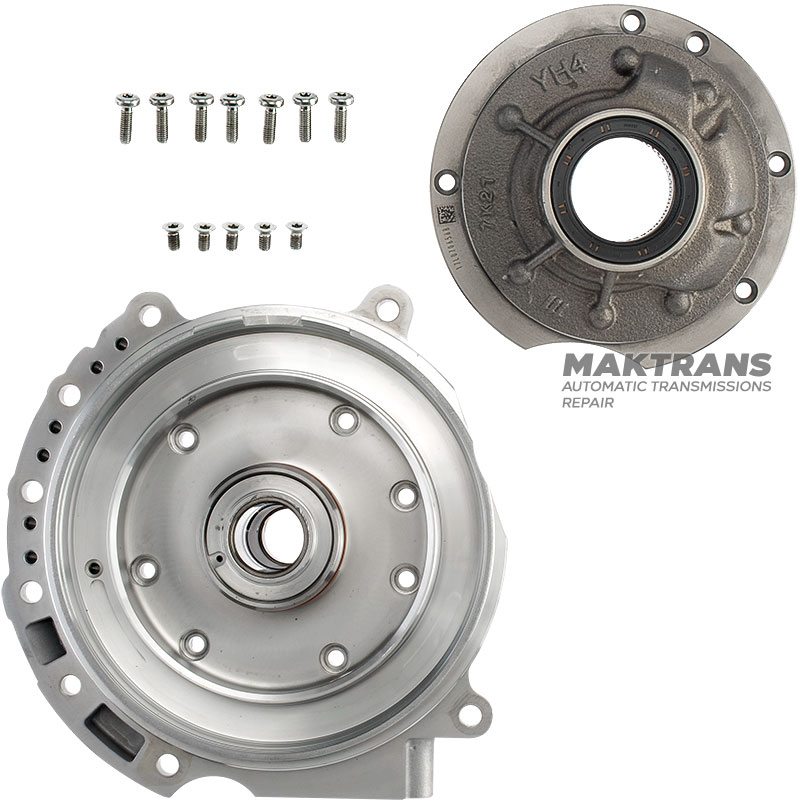

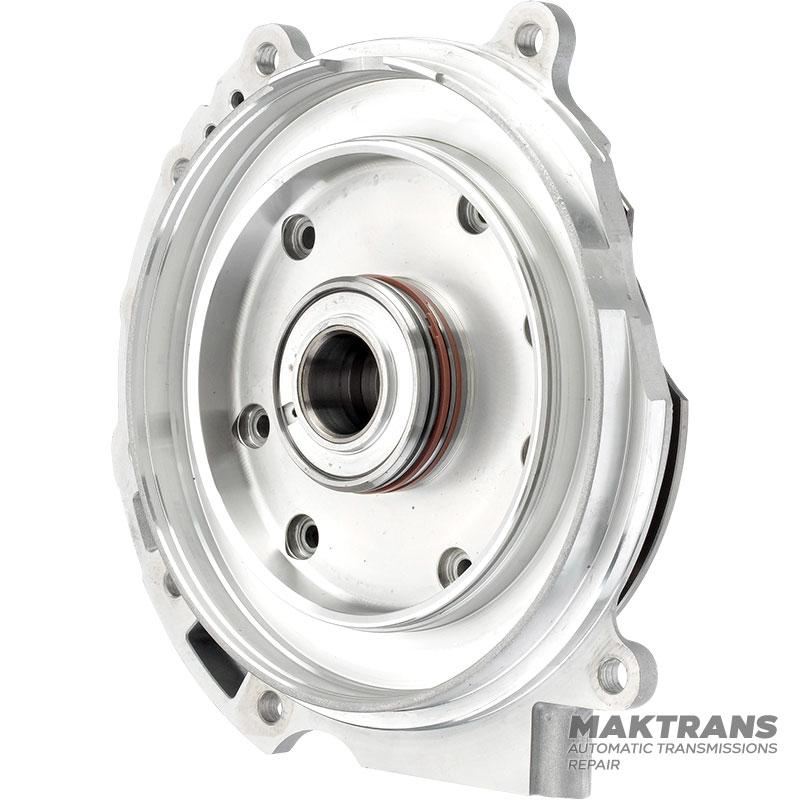

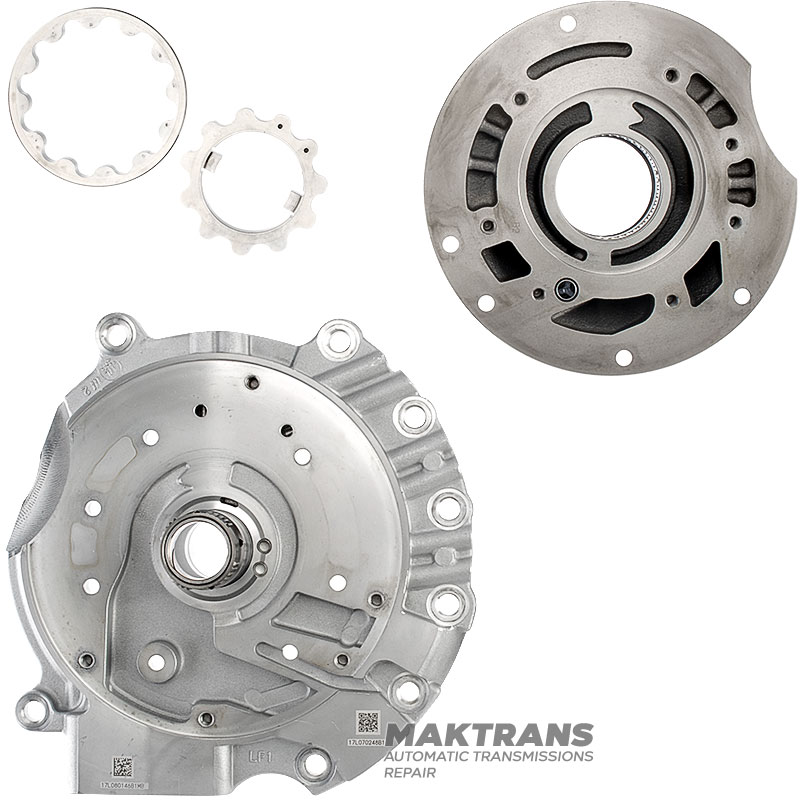

Oil pump Hyundai / KIA A8LF1 461004G100

Oil Pump Hub (without Low/Reverse Brake ):

• Total height - 80 mm;
• Stator height (front) - 45 mm;
• The outer diameter of the working part is 34.50 mm;
• Number of splines - 20 pcs.;
• The outer diameter of the spline part is 33.85 mm;
• Inner diameter of the sleeve - 24.35 mm;
• Outer diameter of the hub - 60.40 mm;
• Hub height - 22 mm;
• Inner diameter - 28.15 mm;
• Outer diameter of the piston cylinder Low / Reverse - 174.90 mm;

Oil pump gear housing:

• Total height - 33 mm;
• The outer diameter of the case is 167.95 mm;

Drive gear:

• Number of teeth - 11 pcs.;
• Inner diameter - 47.10 mm;
• Gear thickness - 7.85 mm;

Driven gear:

• Number of teeth - 12 pcs.;
• Outer diameter - 83.75 mm;
• Gear thickness - ​7.85 mm;​​​​​​
