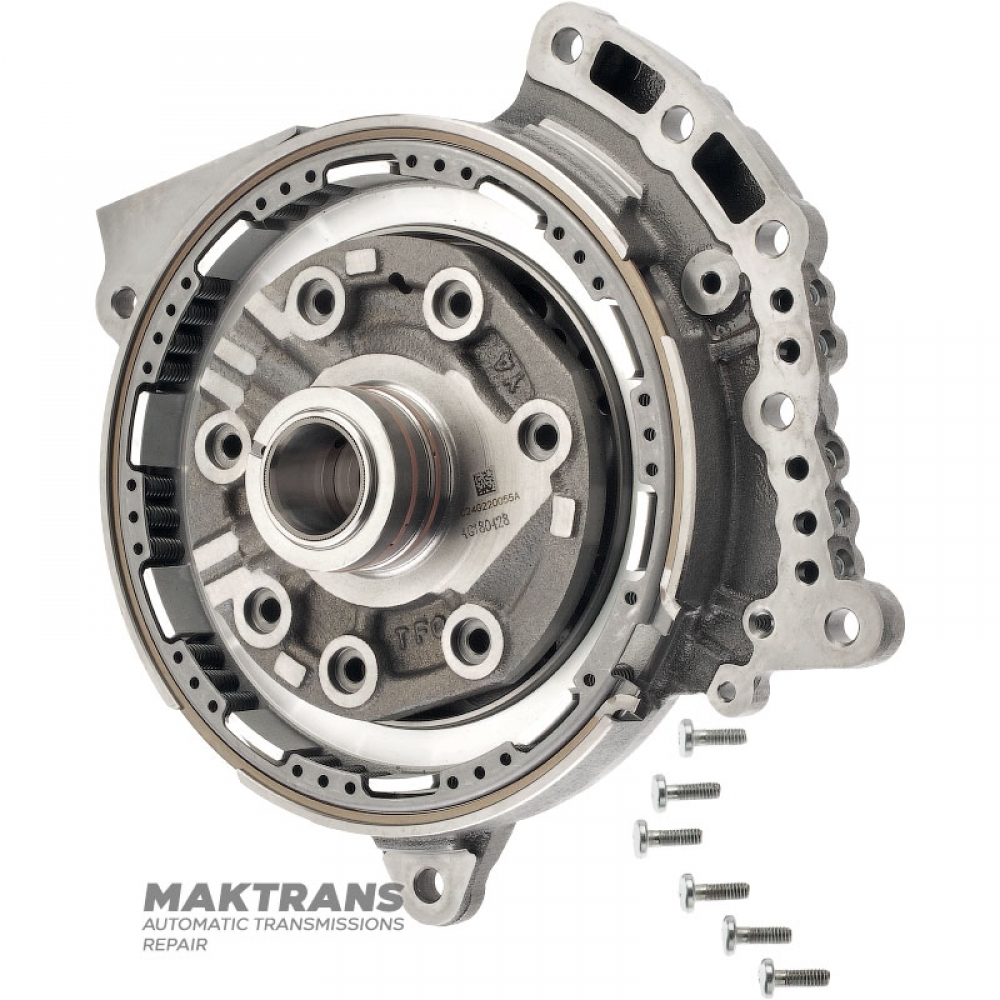

Oil pump VAG 09H, AQ451 (8-speed transmission) - gear thickness 8.35 mm

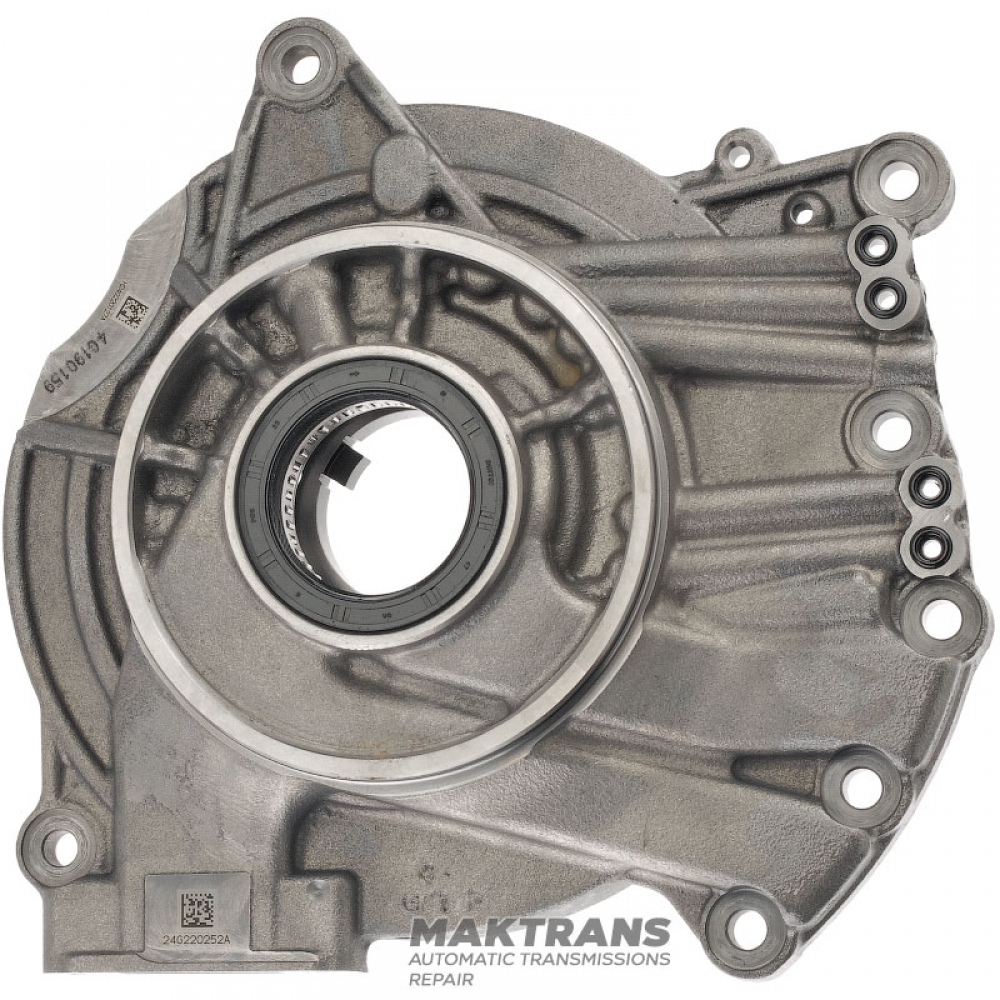

Oil pump gear housing:

• Total height - 60 mm;
• Bearing inner diameter - 47.25 mm;

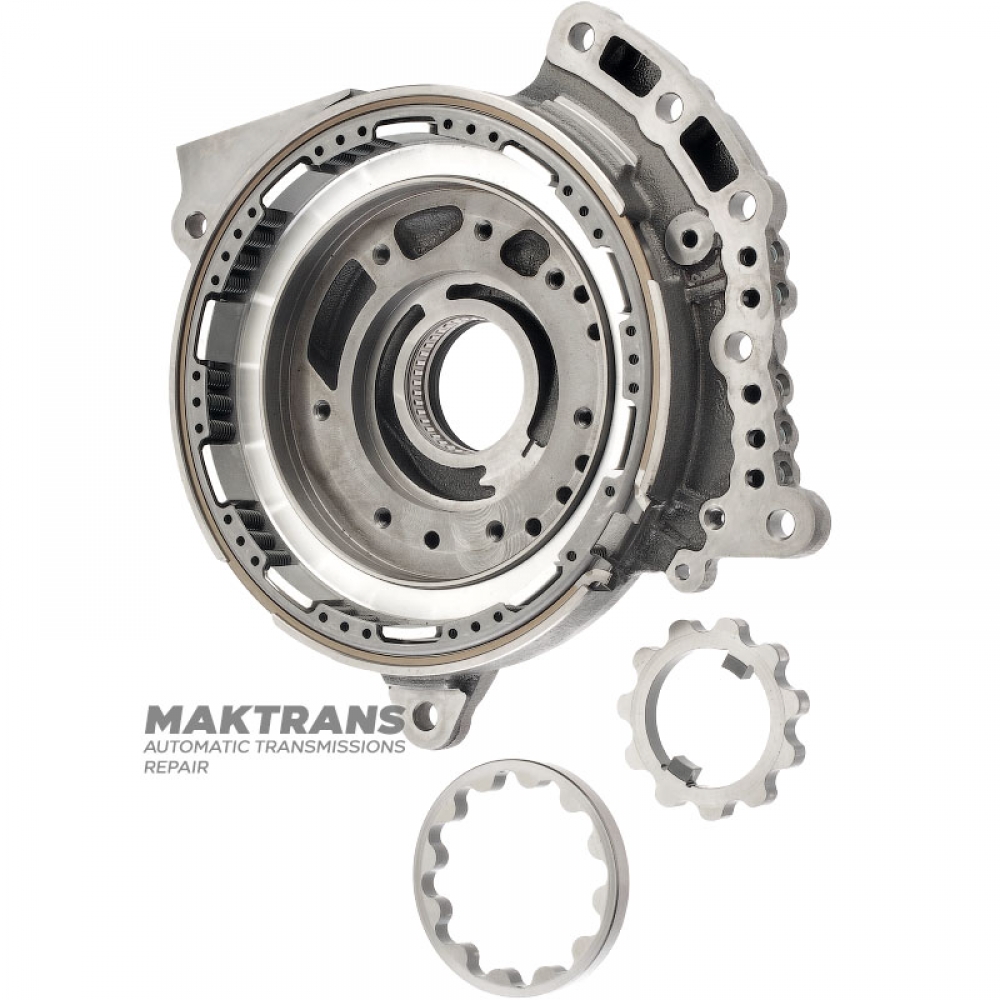

Oil pump gears:

Leading gear:

• Thickness - 8.35 mm;
• Number of teeth - 11 pcs.;
• Inner diameter - 47.10 mm;

Driven gear:

• Thickness - 8.35 mm;
• Number of teeth - 12 pcs.;
• Outer diameter - 83.75 mm;

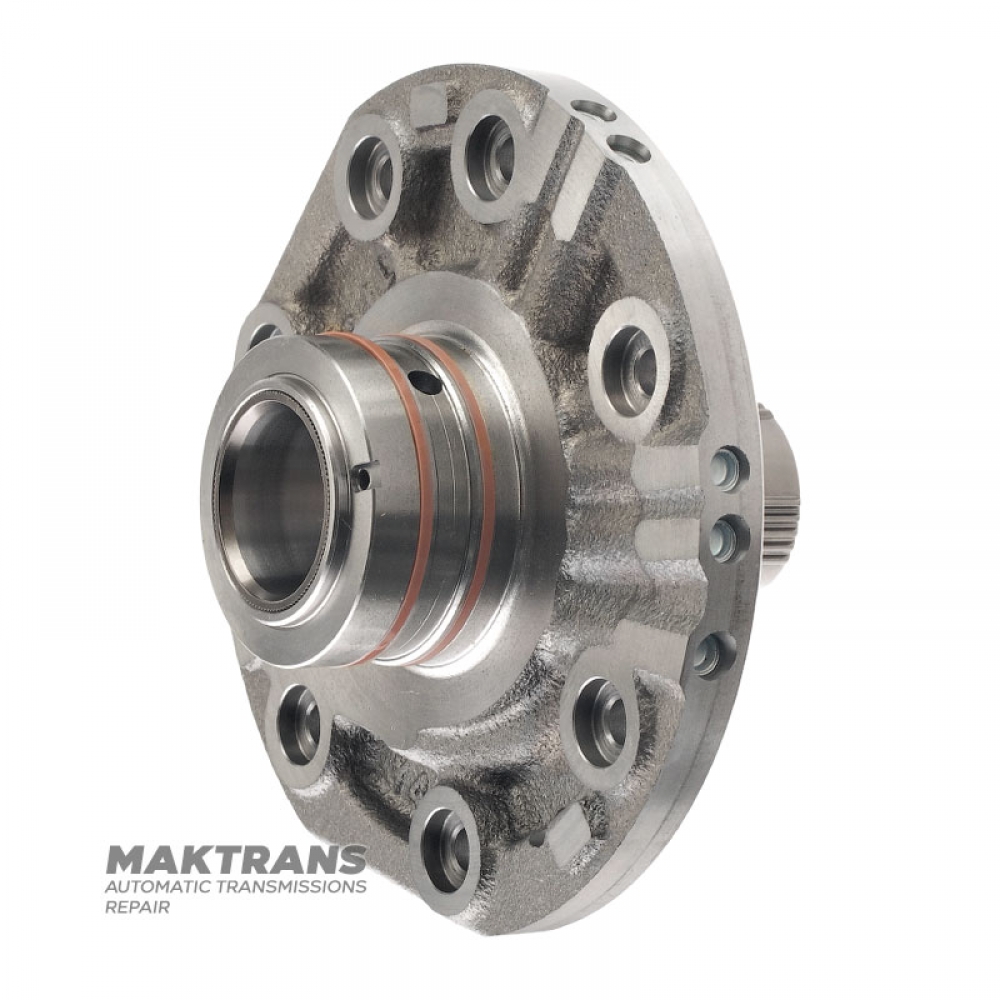

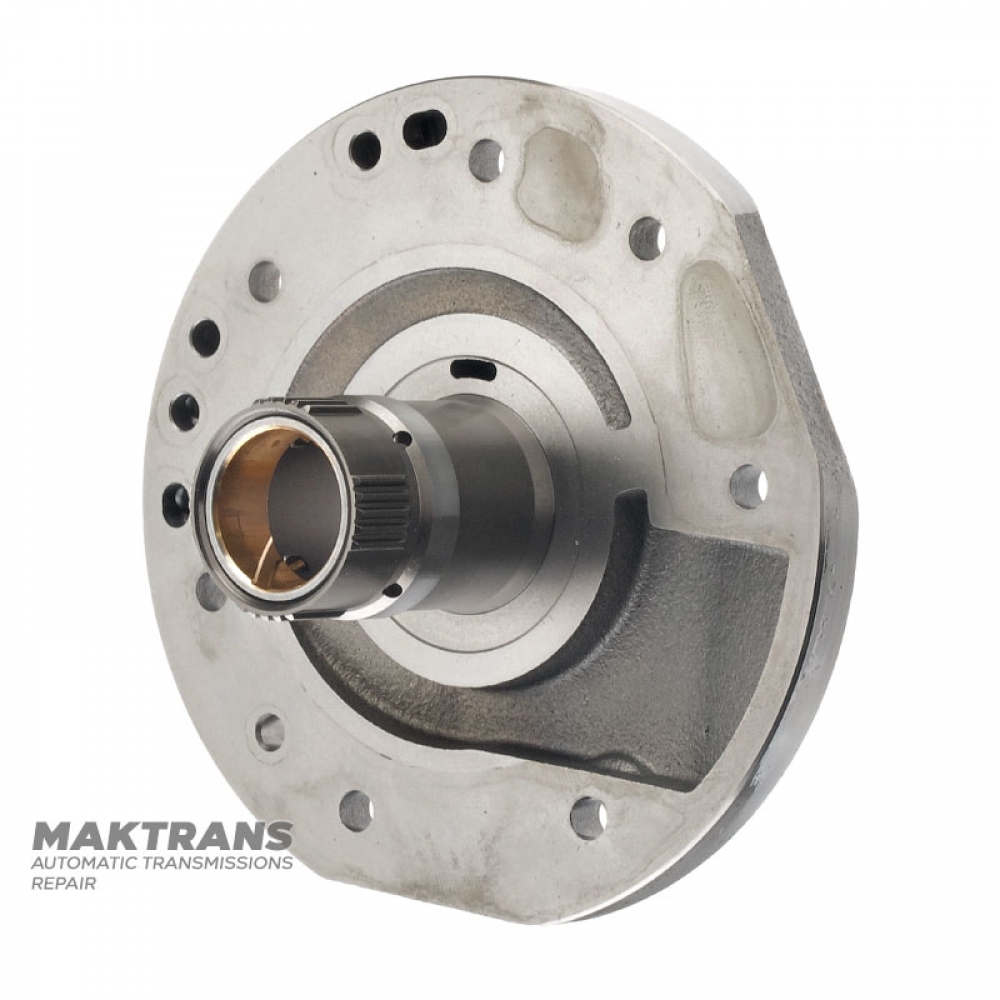

Oil pump hub:

• Total height - 90 mm;

Front side:

• Height - 48 mm;
• Number of splines - 20 pcs.;
• Inner diameter of the sleeve - 24.30 mm;
• The outer diameter of the working part of the neck is 34.55 mm;

Outer diameter of skirt - 135.05 mm;

Back side:

• Height - 30 mm;
• Inner diameter - 28.35 mm;
• Outer diameter - 50.35 mm;
