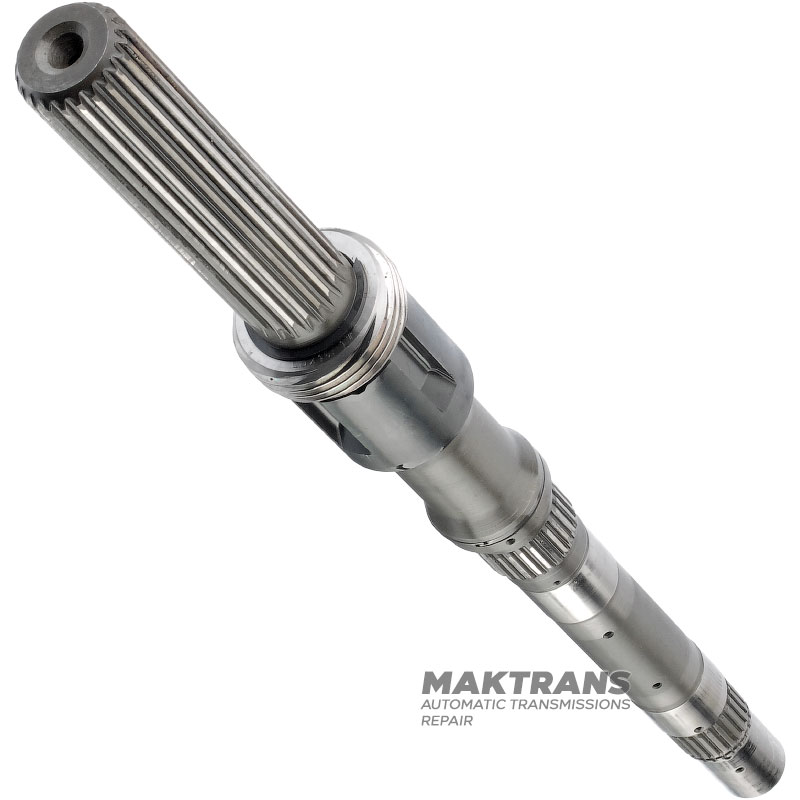

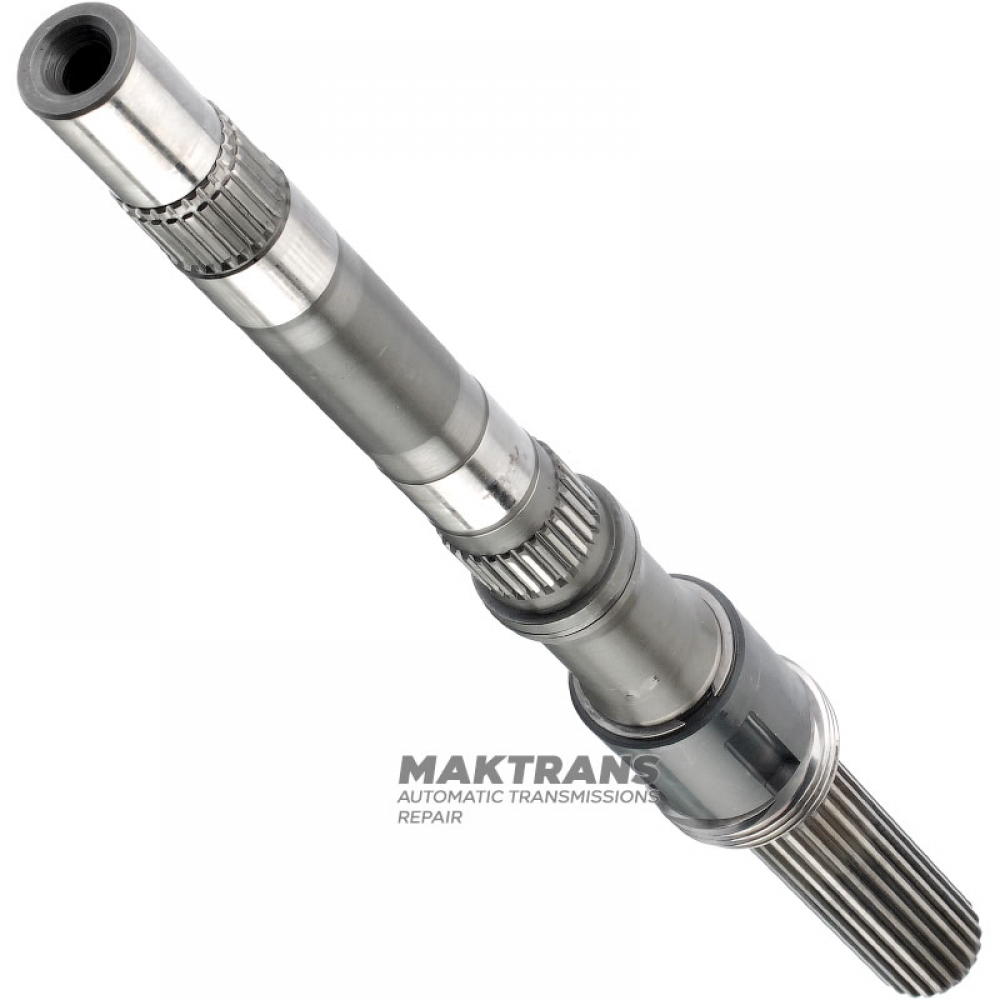

Output shaft 2WD (RWD) Aisin Warner 30-40LE / TOYOTA A340 3577134010 - shaft length 465 mm

• Total shaft length - 465 mm;
• The outer diameter of the hypoid gear of the speedometer is 47 mm;

Number of splines on shaft:

• 24 splines - outer Ø 25.85 mm - length of spline part 19 mm (total 24 mm);
• 28 splines - outer Ø 30.30 mm - length of spline part 19 mm;
• 23 splines - outer Ø 30.80 mm - length of splined part 123 mm;
