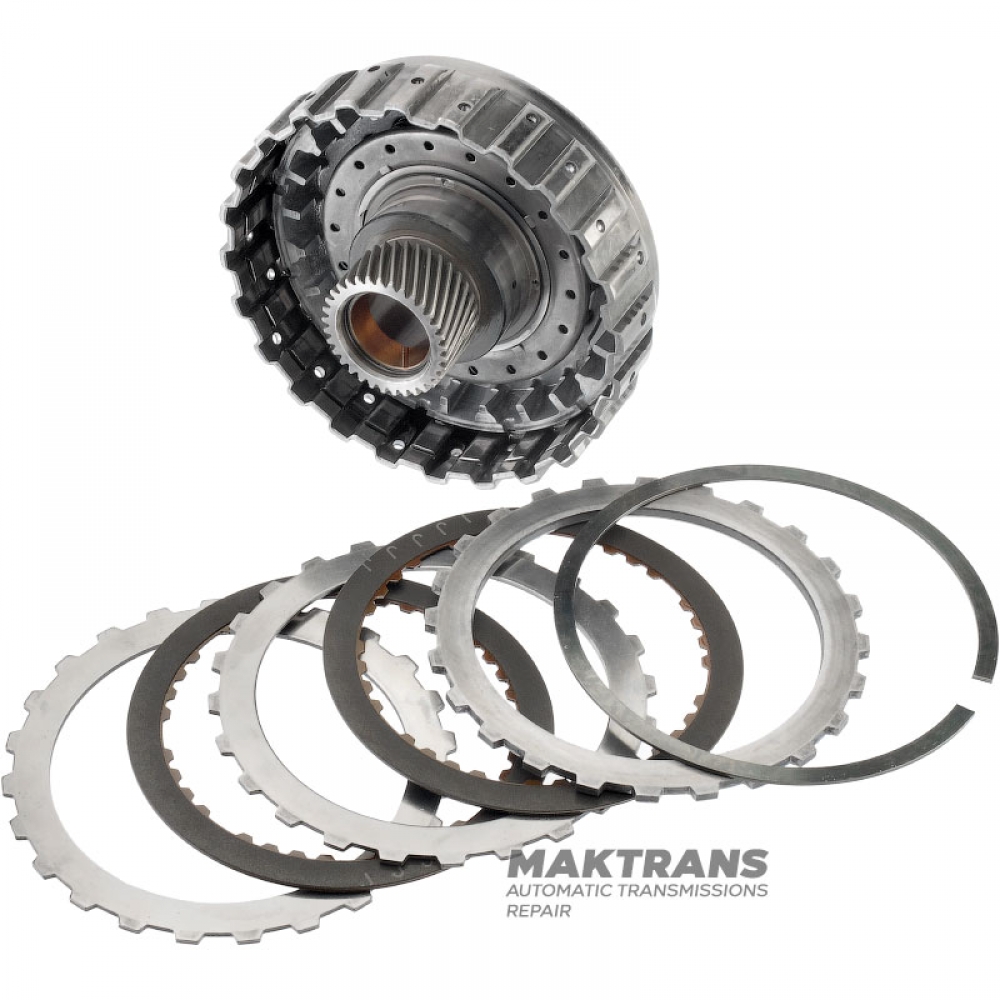

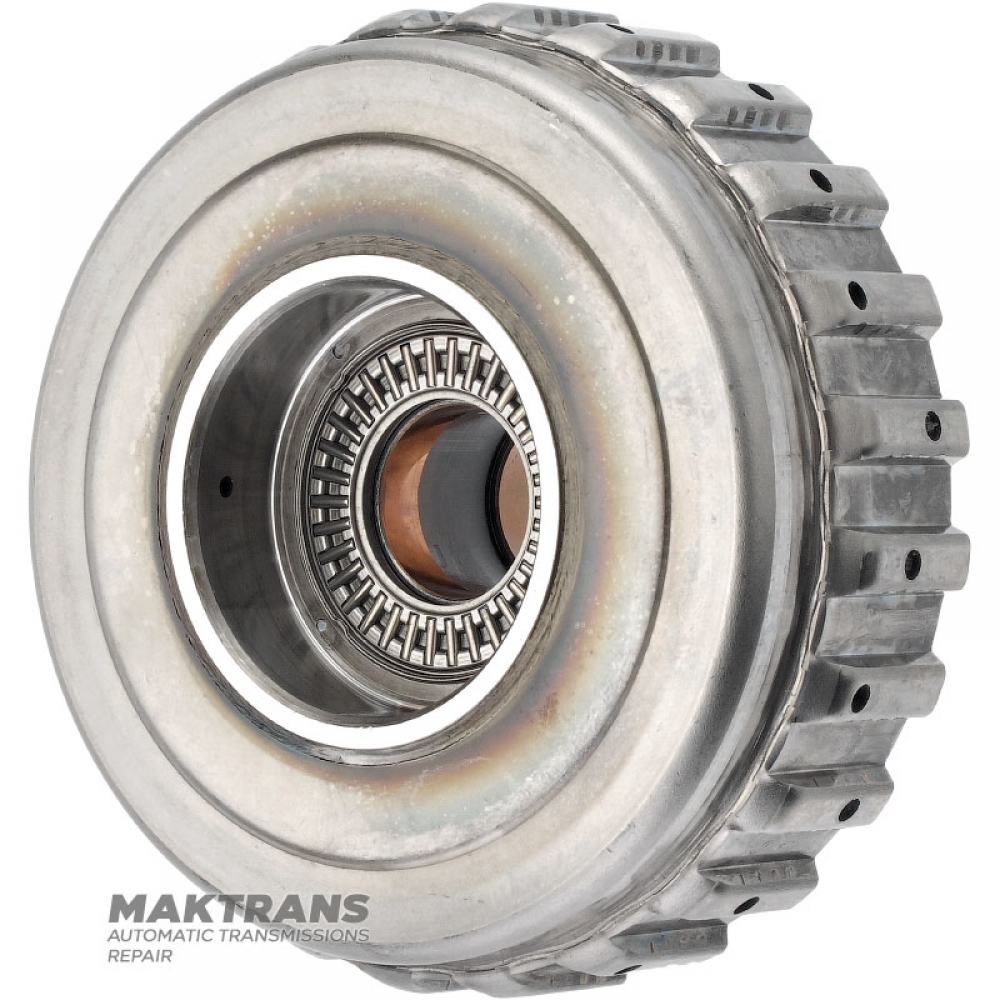

OVERDRIVE Clutch Drum (2 friction discs) / OVERDRIVE planetary sun gear (33 teeth, outer Ø 43.30 mm) —3563330040 3460150010 Aisin Warner 30-40LE, 30-80LE / TOYOTA A340 A343

• Overall height - 68 mm;
• Number of teeth on the sun gear - 33 pcs.;
• Gear outer diameter - 43.30 mm;
• Inner diameter of the sleeve - 27.05 mm;
• Drum outer diameter - 140.90 mm;

  ***Without speed sensor ring gear;

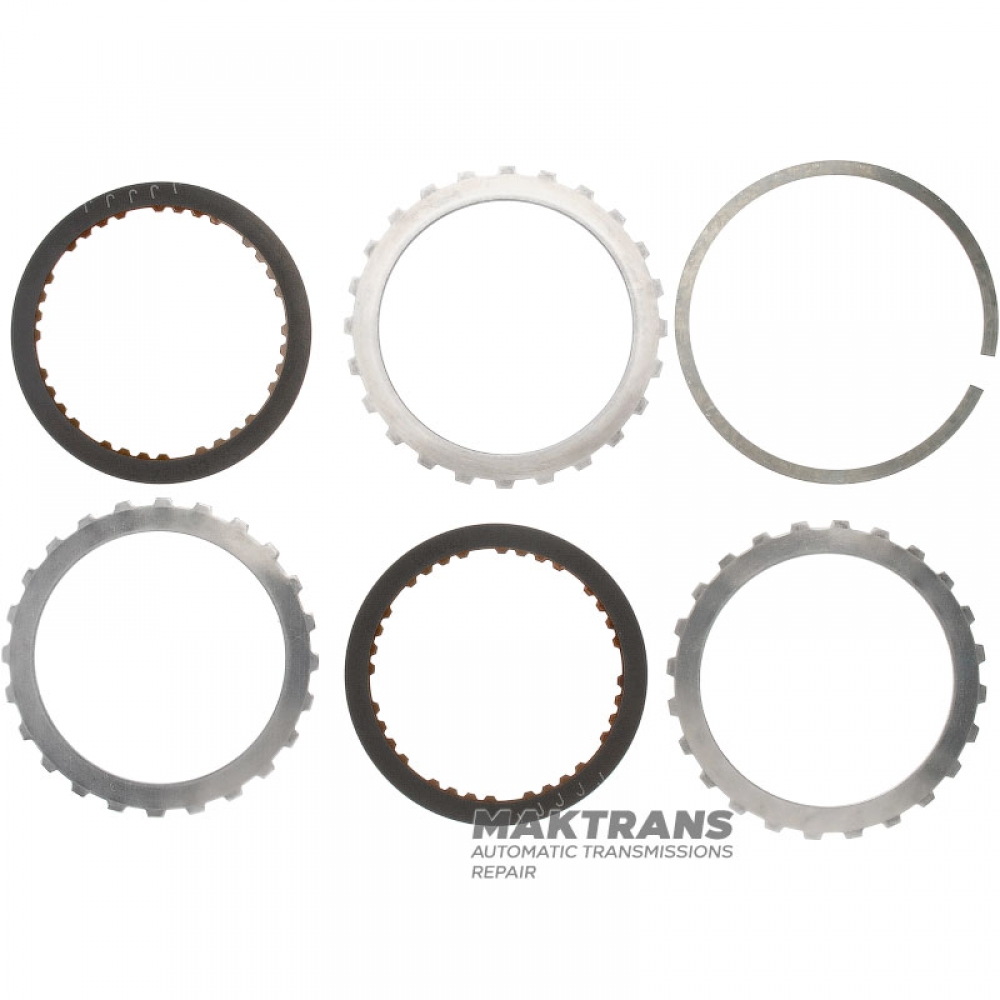

OVERDRIVE Clutch:

• Height from piston to drum retaining ring - 13 mm;
• The total thickness of the disc set is 11.75 mm;

Support disk:

• Thickness - 3.45 / 4.15 mm;
• Inner diameter - 104.85 mm;
• Number of teeth - 24 pcs.;
• Number of disks in the set - 1 pc.;

Friction disc:

• Thickness - 2.05 mm;
• Outer diameter - 126.05 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 105 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 2 pcs.;
