the asking price is $126.00
Shipping to United States from $92.78
Main Specifications
Condition (used, new):
used and inspected
Type:
front cover
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)

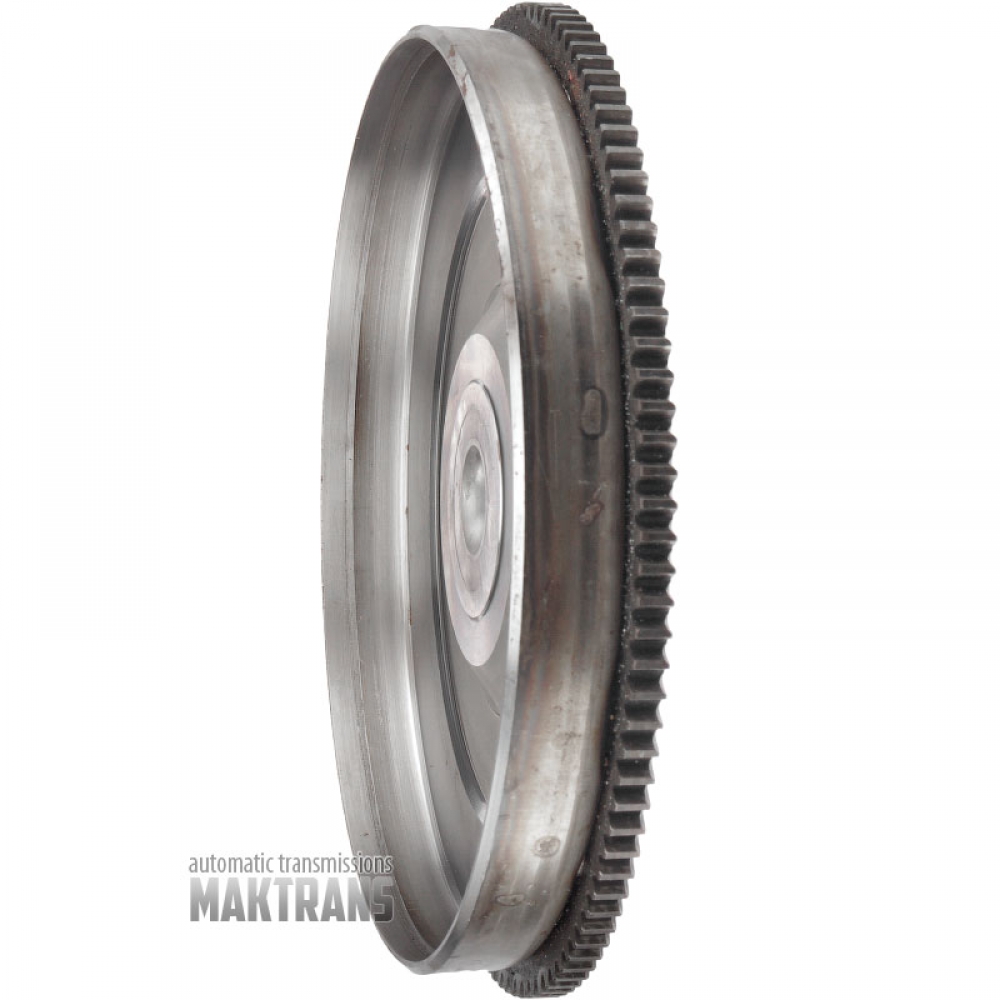

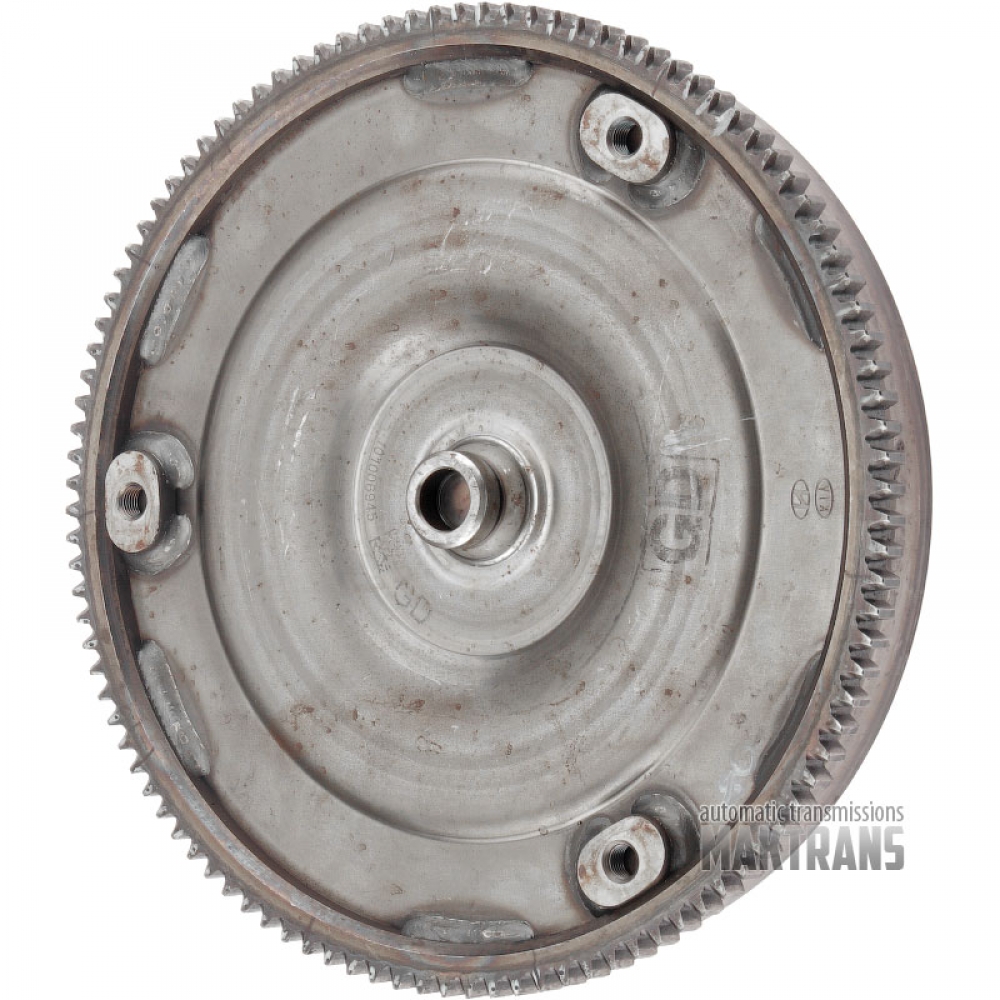

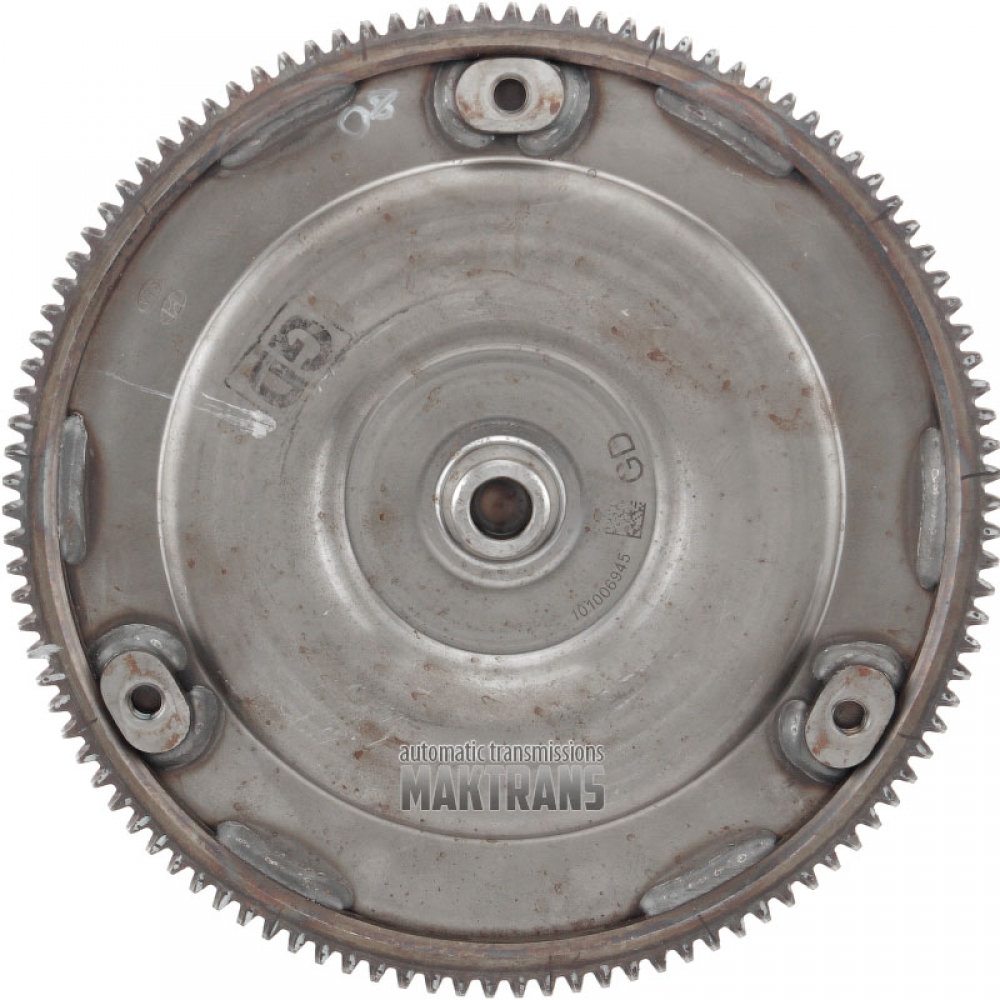

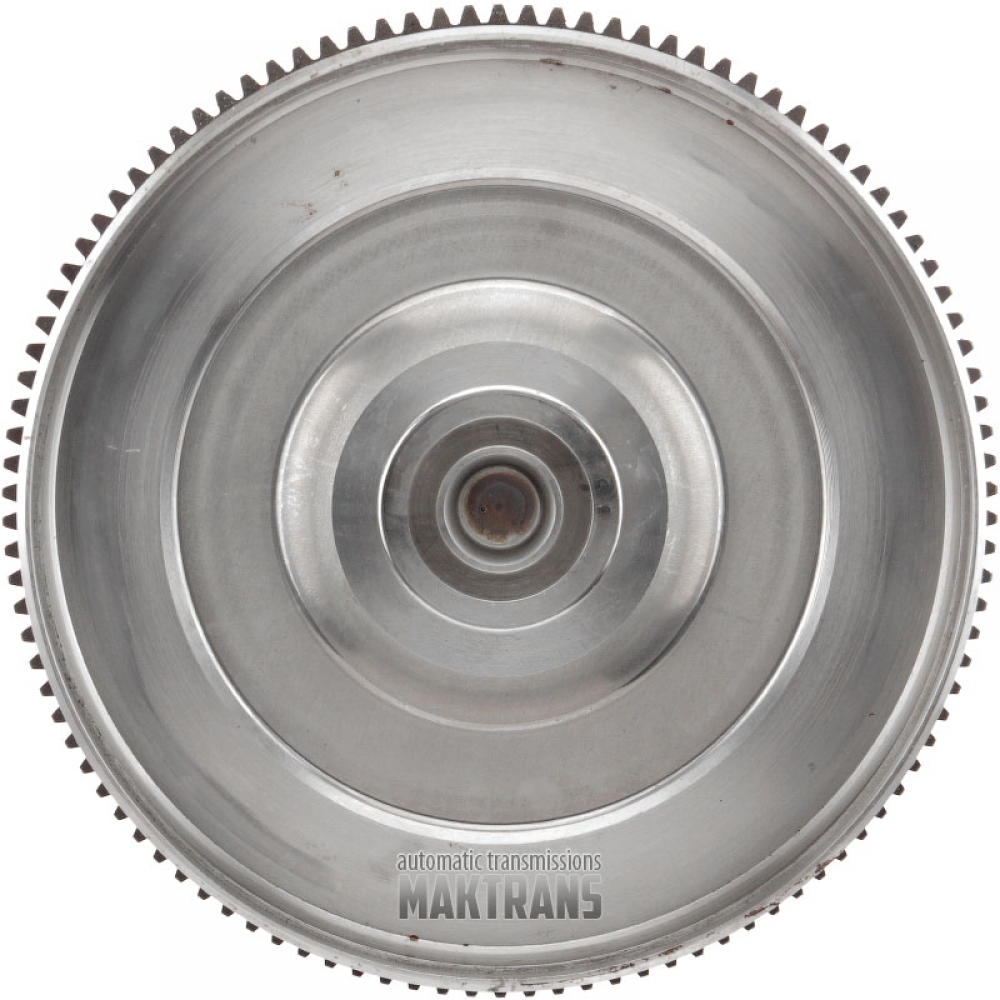

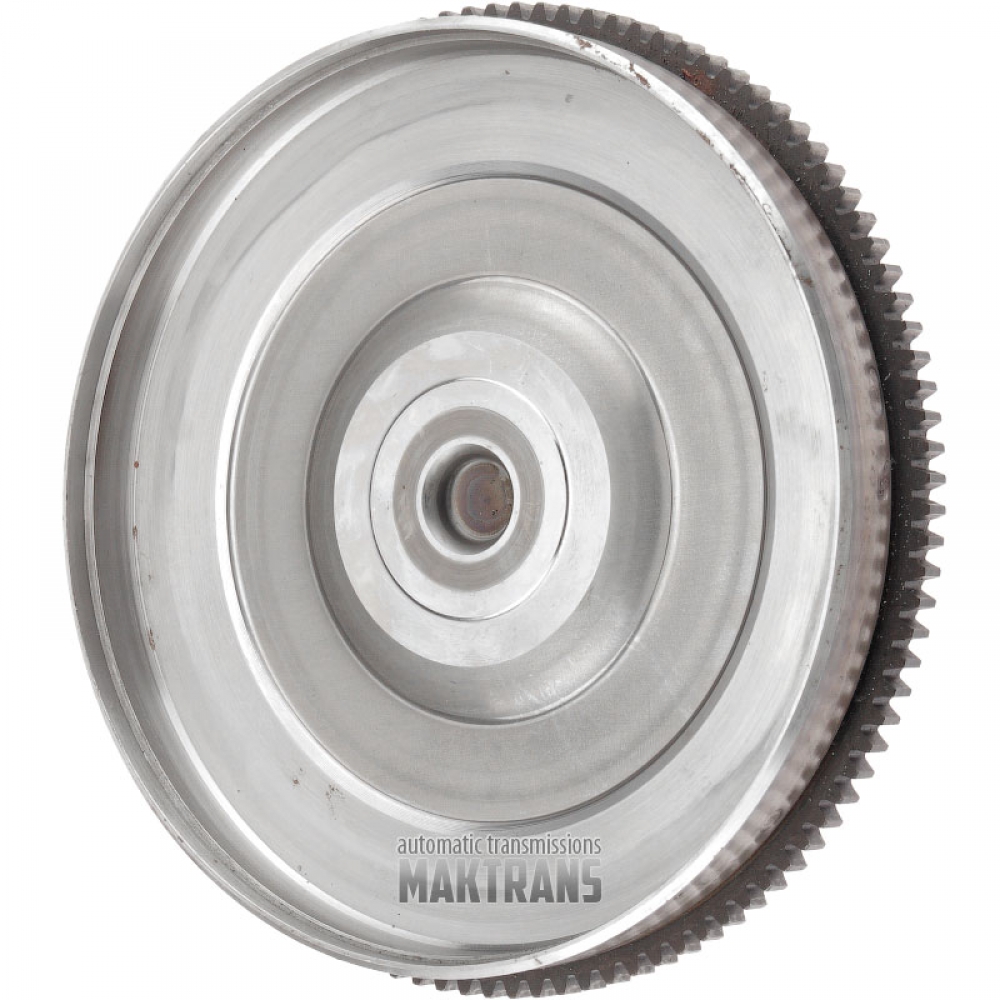

- Total height - 42 mm;
- The outer diameter of the case is 256.60 mm;
- The number of teeth on the ring gear is 106 mm;
- The outer diameter of the ring gear is 271.25 mm;
- Pilot height - 19 mm;
- The outer diameter of the pilot is 26.95 mm;
- Number of mounting holes - 3 pcs.;
- The inner diameter of the mounting hole is 8.85 mm;
- The radius from the center of the pilot to the center of the mounting hole is 110 mm;
- The distance between the centers of the mounting holes is 192 mm;
