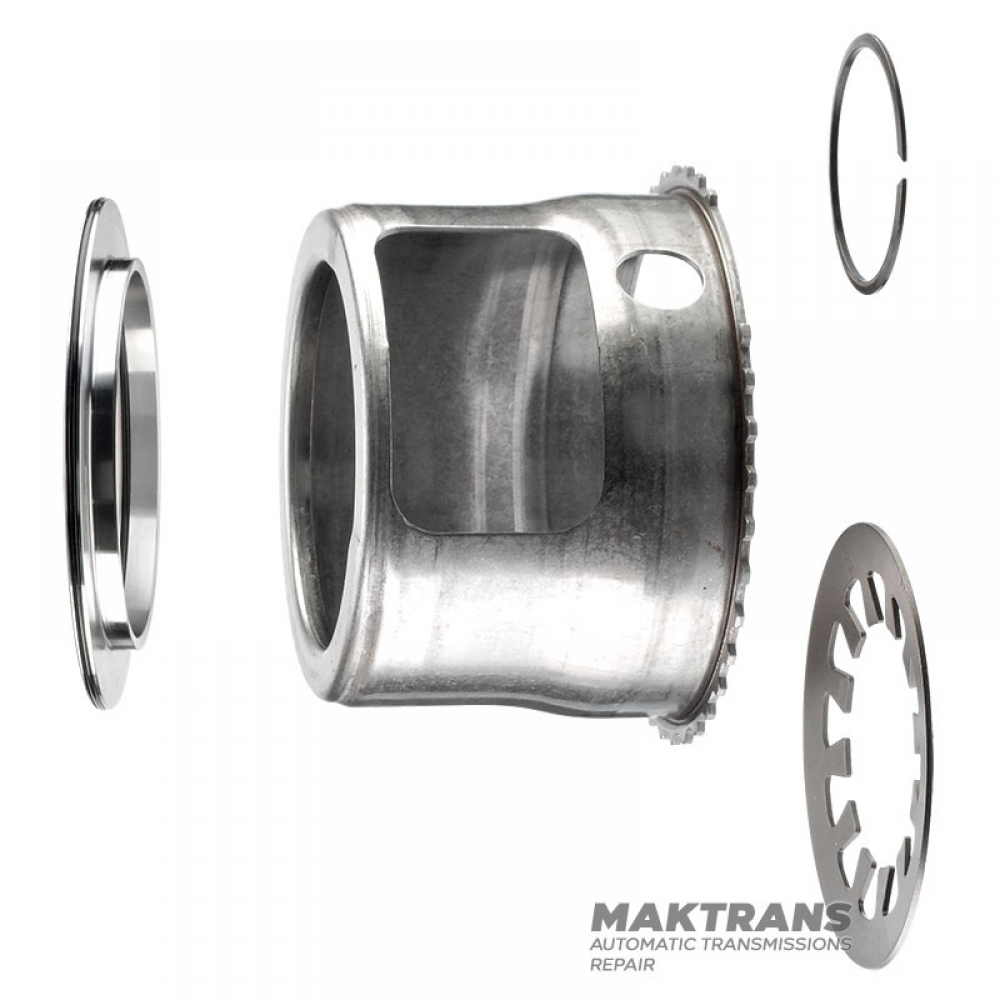

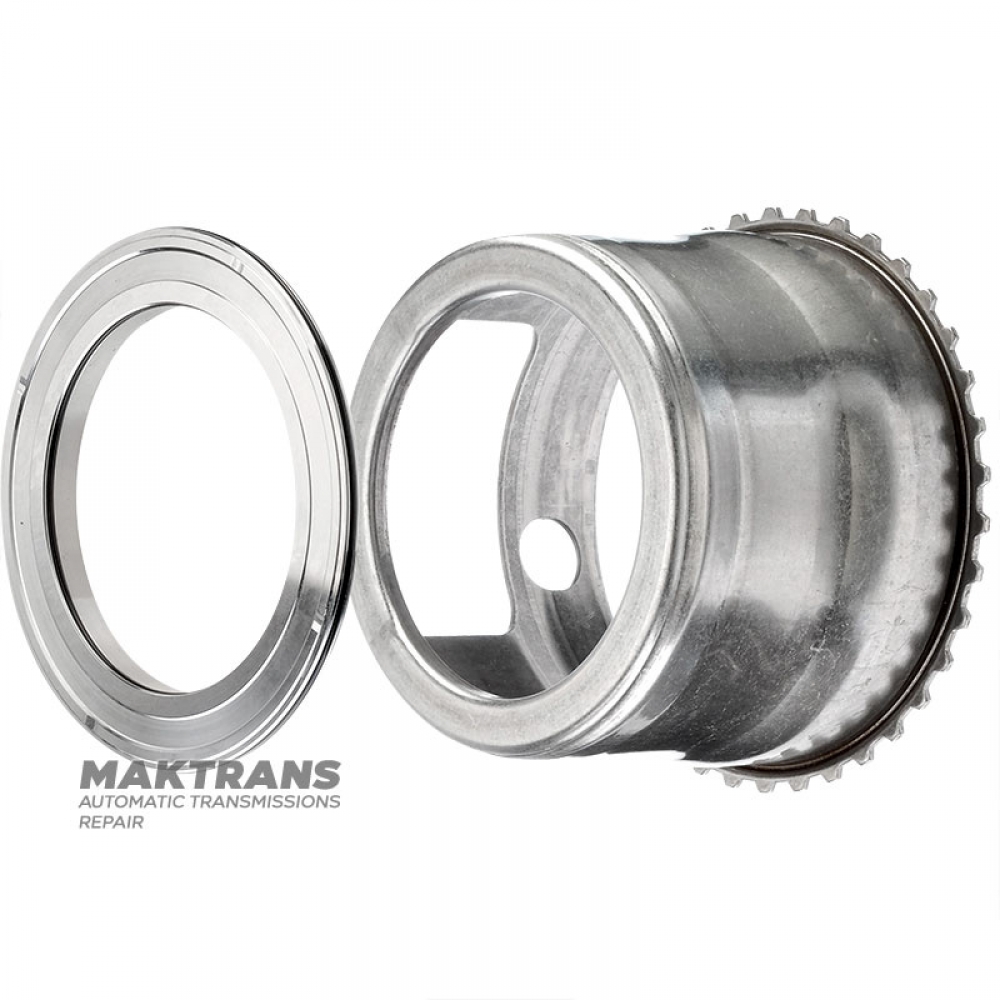

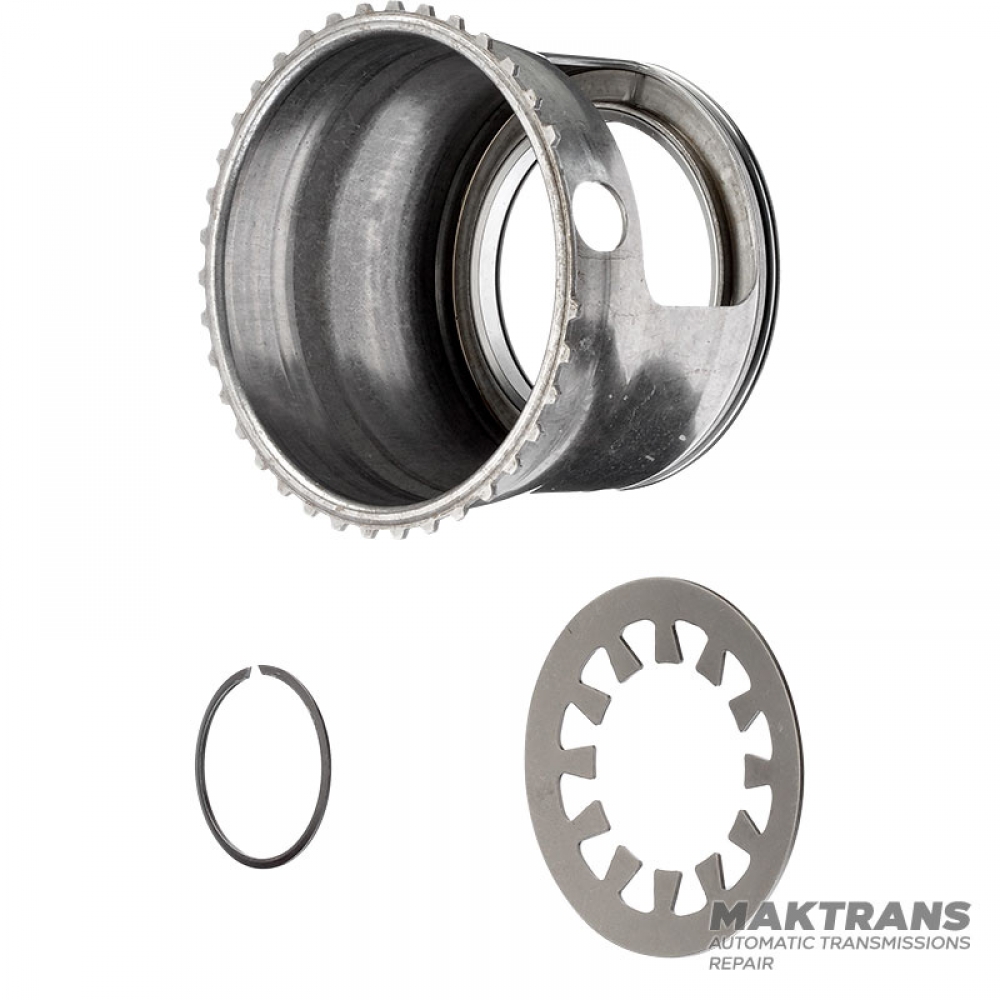

Piston B06 Clutch Mercedes-Benz 725.0 AMG — A 7252723700, A 7252727204 (total cylinder height 124 mm)

Push cylinder:

• Overall height - 124 mm;
• Outside diameter (tooth ring) - 187.80 mm;
• Inner diameter - 123.20 mm;

Steel piston:

• Overall height - 13.25 mm;
• Piston outer diameter - 159.50 mm;
• Outer diameter of the neck - 122.85 mm;
• Inner diameter - 114.45 mm;

Return spring:

• Outer diameter - 129.60 mm;
• Thickness - 2 mm;
