Main Specifications
Condition (used, new):
used and inspected
Type:

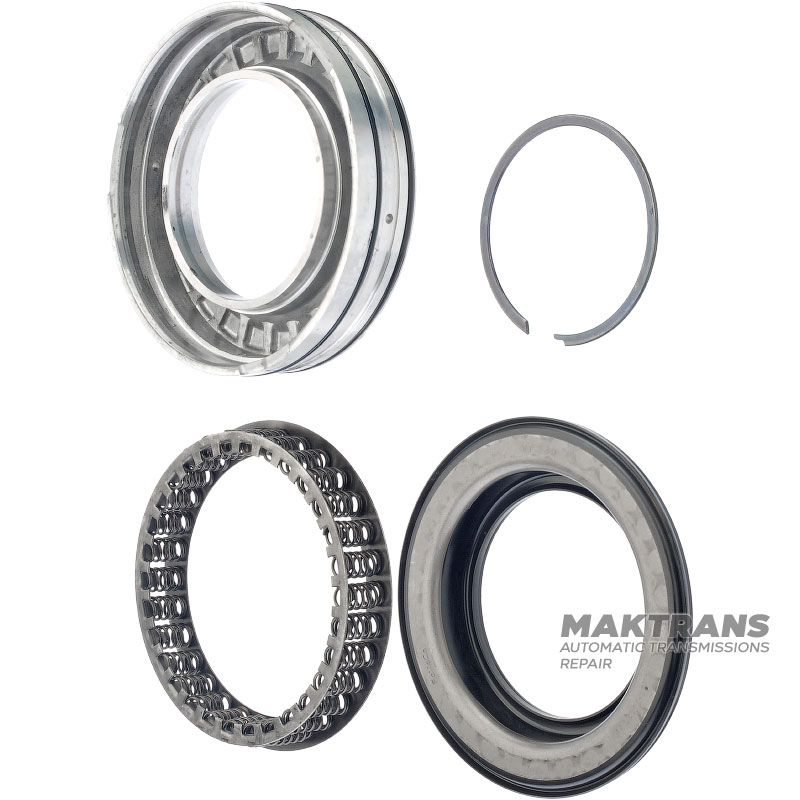

4-5-6 Clutch Piston Kit
Equipment level:
rubber coated piston, aluminum piston, return spring unit, retaining ring
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)
Rubberized piston:
- Total height - 15.65 mm;
- Outer diameter - 109.85 mm;
- Inner diameter - 66.45 mm;
Aluminum piston:
- Overall height - 27.75 mm;
- Outer diameter - 117.50 mm (116 mm);
- Inner diameter - 69.60 mm;
- The internal diameter of the rubber-coated piston cylinder is 110.20 mm;
Return spring block:
- Total height - 17.25 mm;
- Outer diameter - 107.45 mm (101.70 mm);
- Inner diameter - 85.30 mm;
