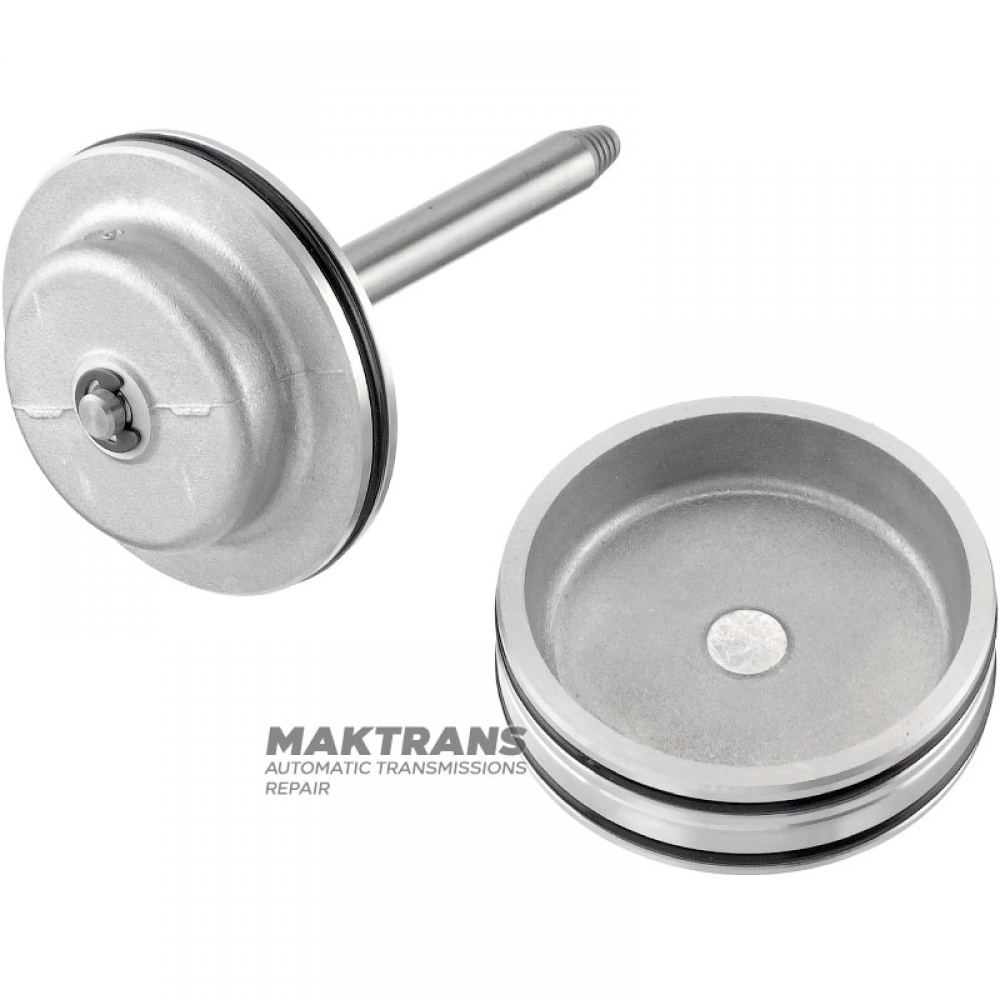

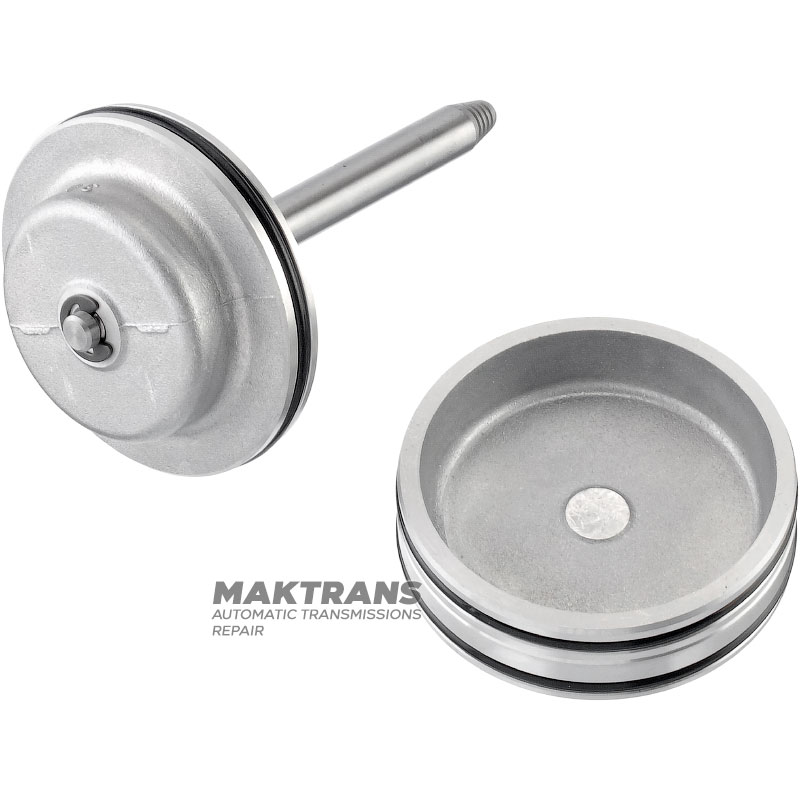

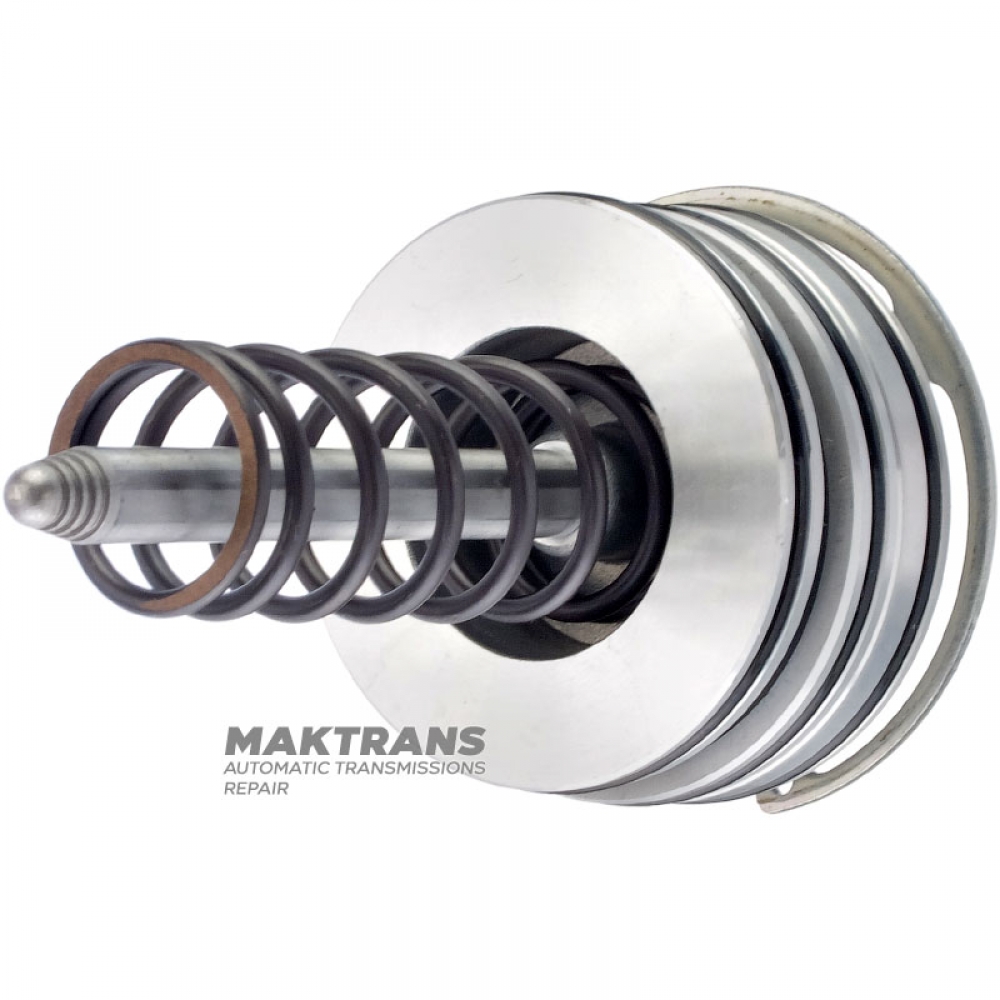

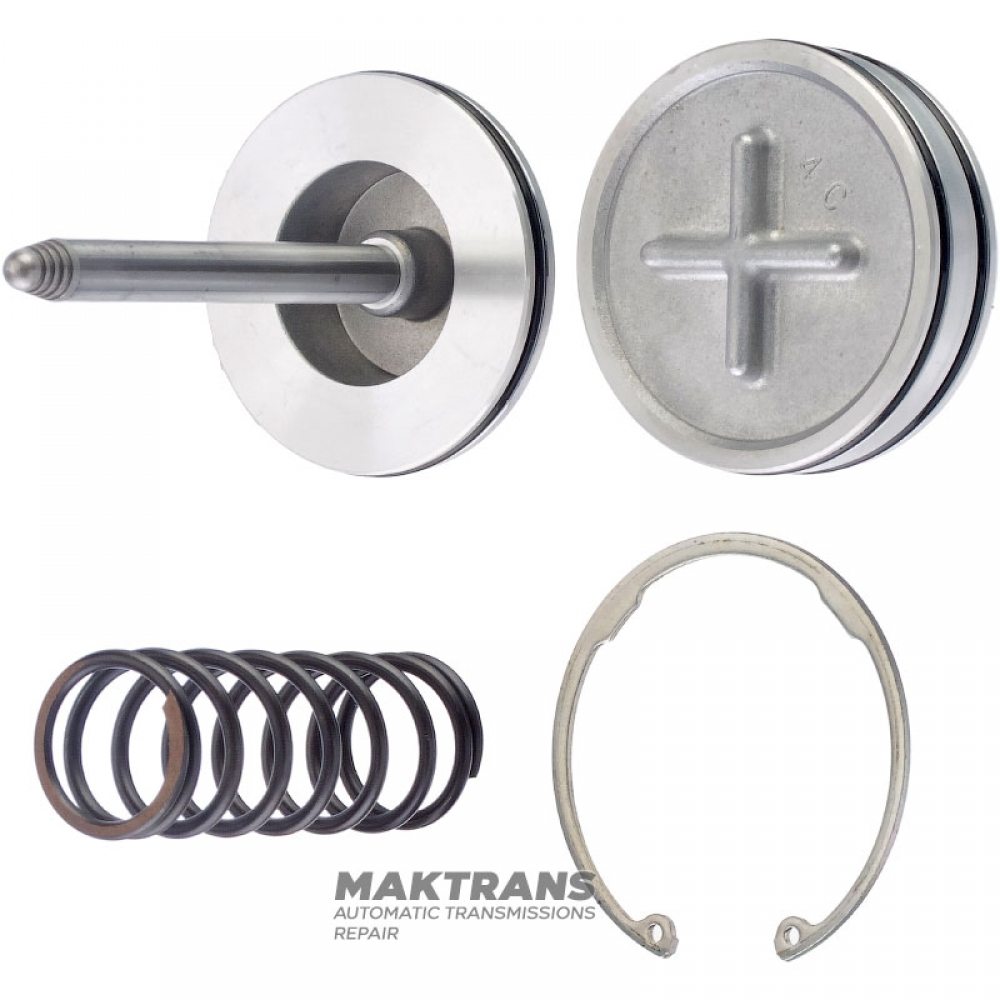

Piston (set) of brake band B1 Brake TG-81SC / AWF8F45 / AF50-8 / U881E/F — (total length of rod 103.80 mm, outer Ø of piston 59.80 mm)

• Total length of the rod - 103.80 mm;
• Outer diameter of the rod - 9 mm;
• Piston outer diameter - 59.80 mm;
• Overall piston height - 18.60 mm;
• Spring height 73.95 mm;
• The outer diameter of the spring rod is 2.70 mm;

Piston cover:

• Height - 18.05 mm;
• Outer diameter - 61.30 mm;
