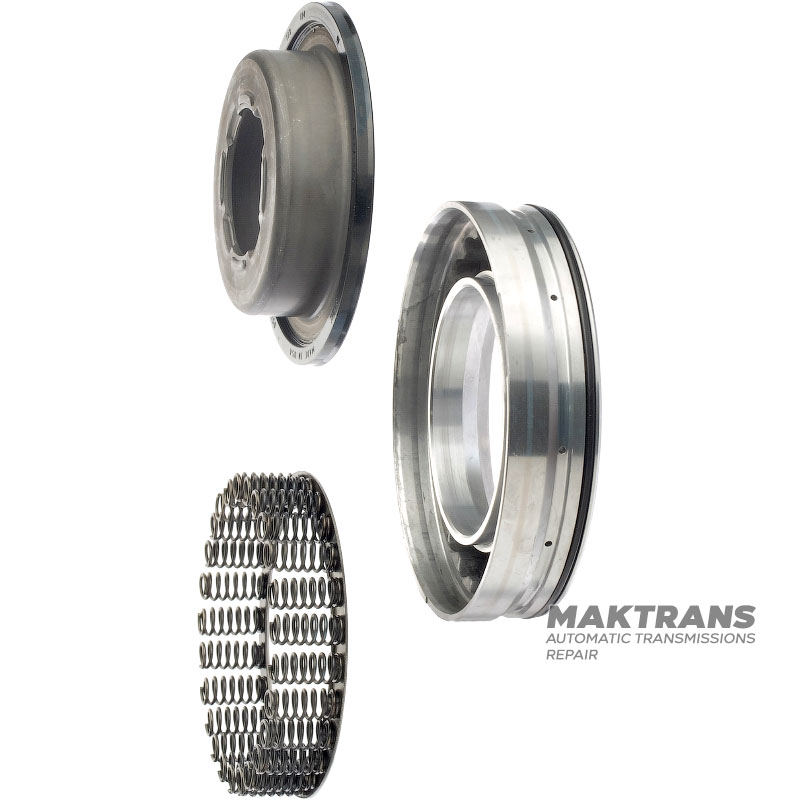

Piston set with spring block 4-5-6 Clutch GM 6T40, 6T45 (GEN2, GEN3) — 24249623, 24275024, 24261299

Aluminum piston:

• Overall height - 27.50 mm;
• Piston outer diameter - 117.30 mm;
• Piston inner diameter - 69.65 mm;

Rubberized piston:

• Overall height - 27 mm;
• Outer diameter - 112.40 mm;
• Inner diameter - 45.50 mm;

Return spring block:

• Height - 22.85 mm;
• Outer body diameter - 105.40 mm;
• Inner case diameter - 80.95 mm;
• Number of springs in the block - 25 pcs.;
