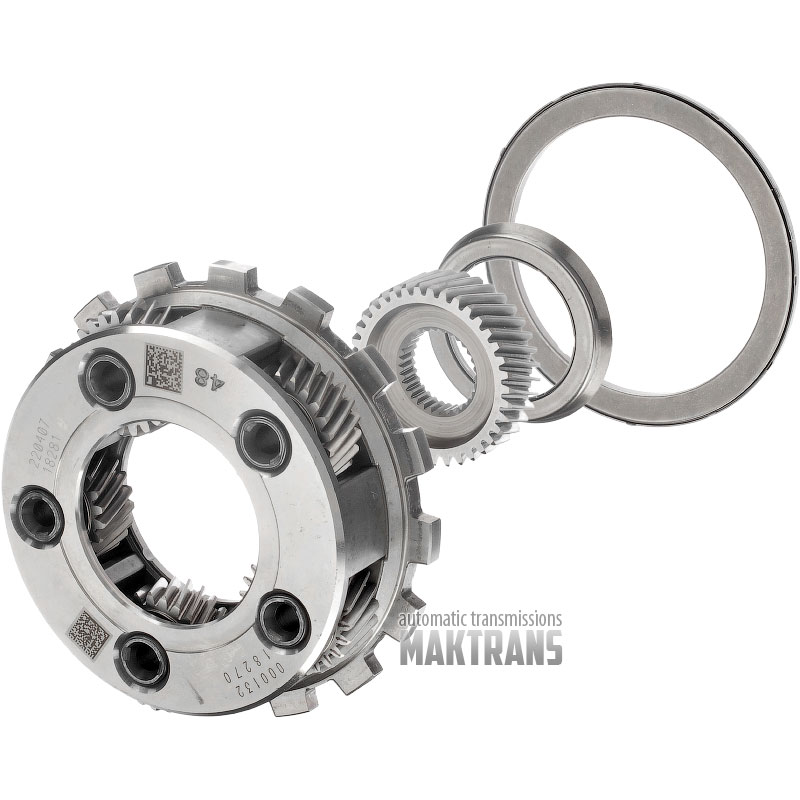

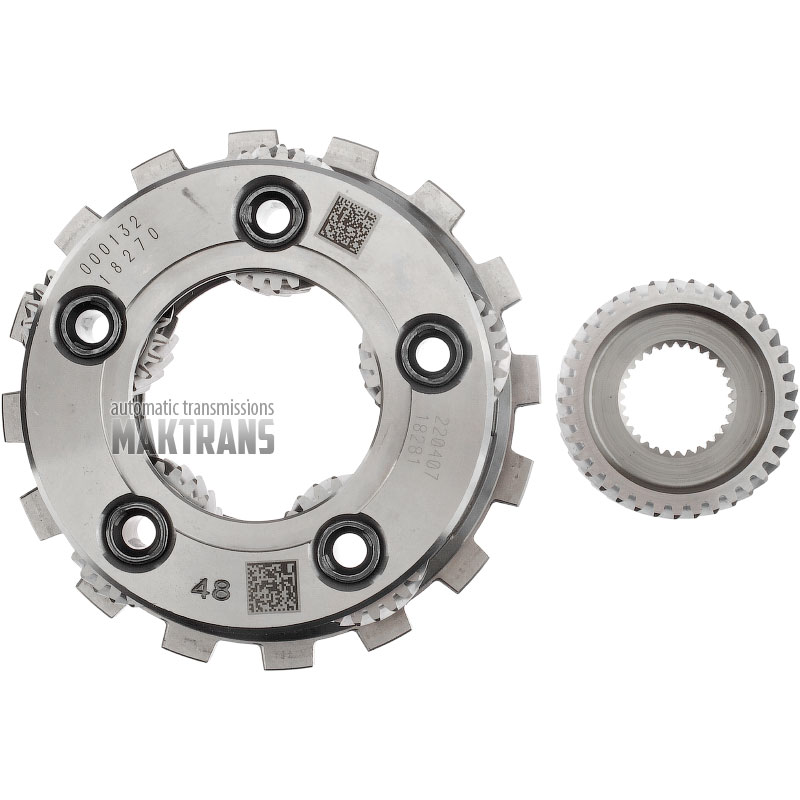

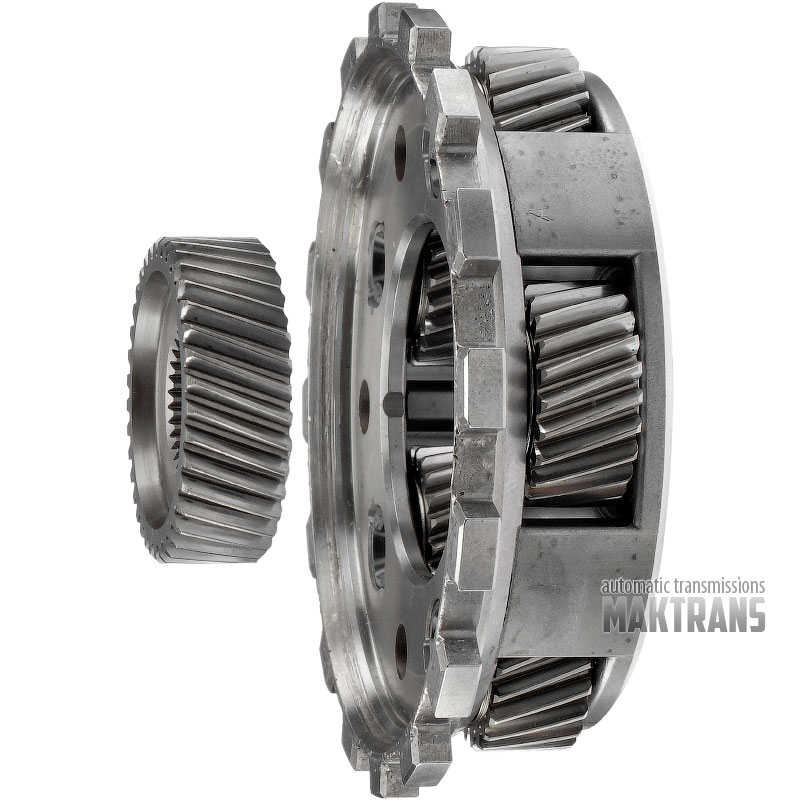

Input Planet (5 pinions, 23 teeth per pinion) FORD 8F35 / [without Output Planetary ring gear]

• Total height - 54 mm;
• Number of satellites - 5 pcs.;
• The number of teeth on the satellite is 23 pcs.;
• The outer diameter of the satellite is 34.35 mm;

Sun gear:

• Number of teeth - 37 pcs.;
• Outer diameter - 52.40 mm;
• Gear width - 16.75 mm;
• Number of splines on the inside - 31 pcs.;
