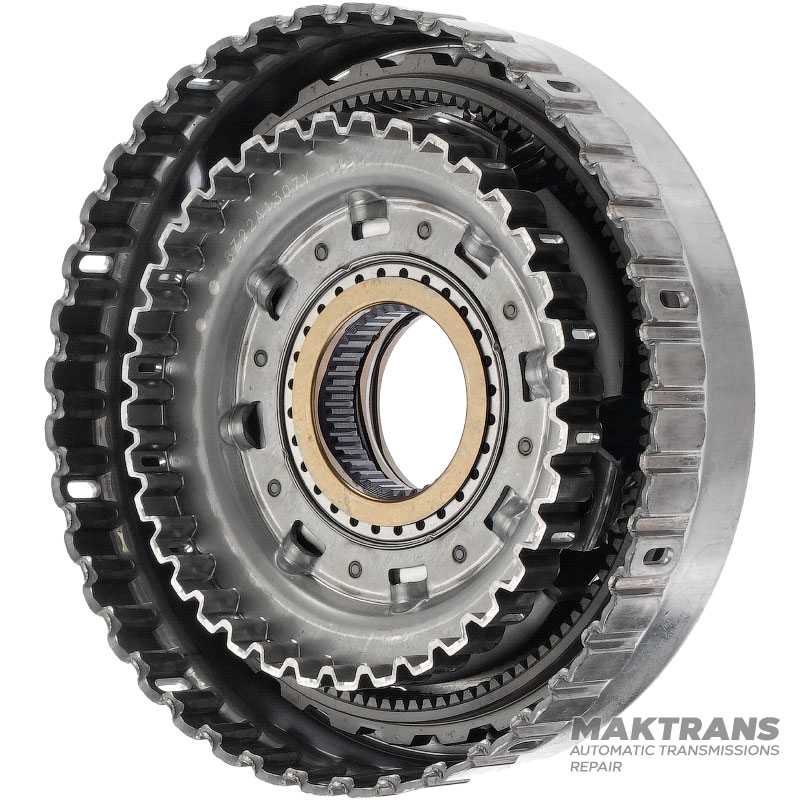

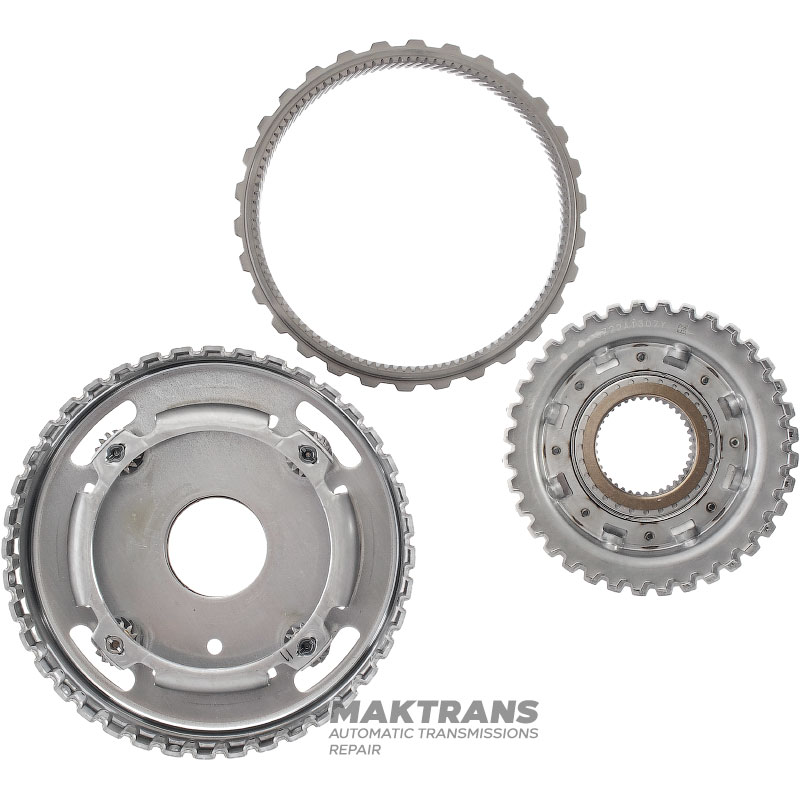

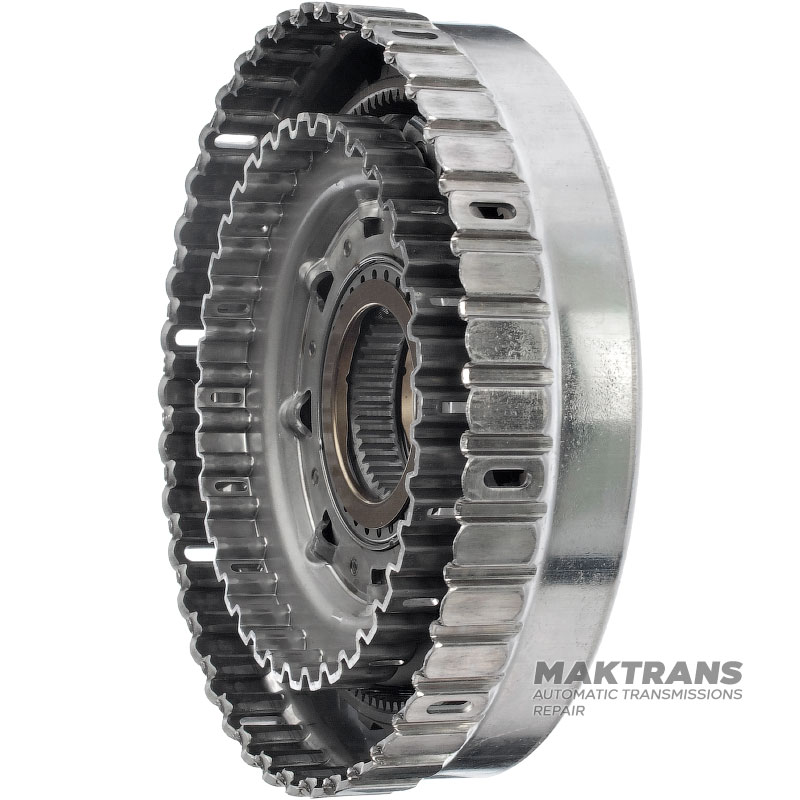

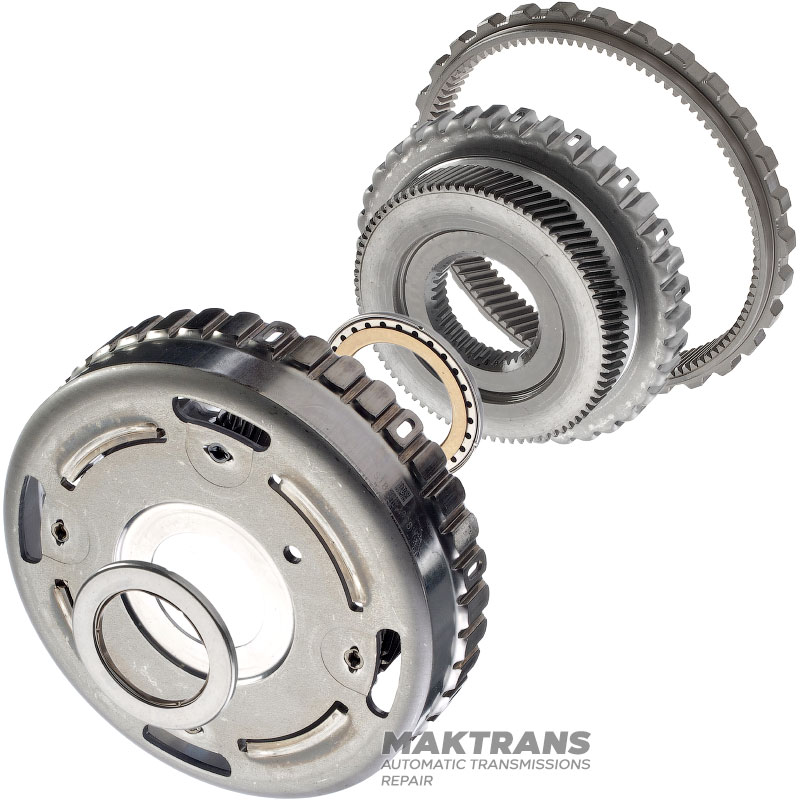

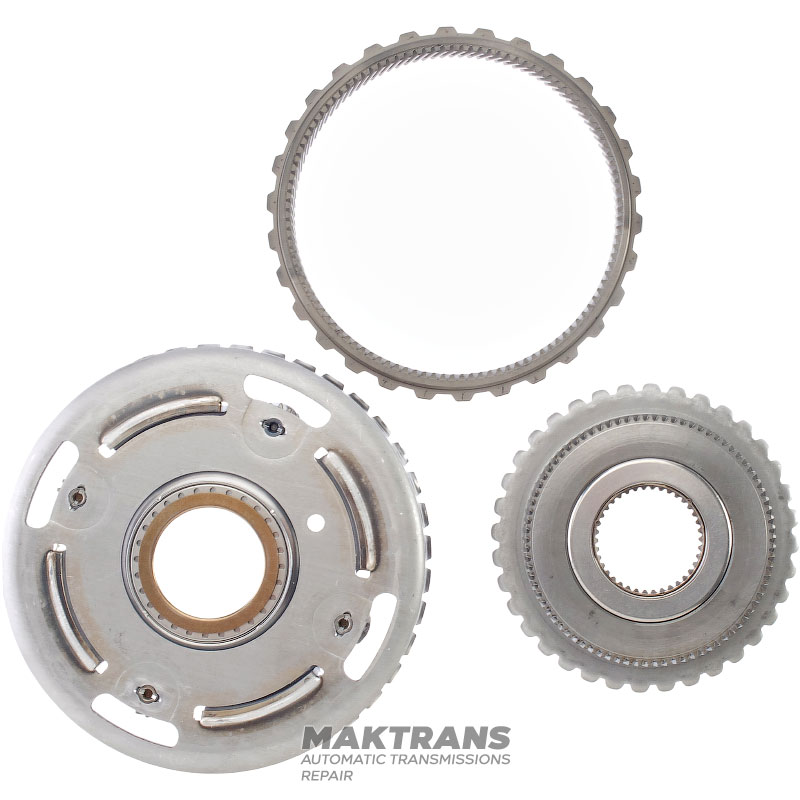

Planet JATCO CVT JF016E / [4 satellites (14 teeth), ring gear 110 teeth (width 16.15 mm), sun gear 82 teeth (outer Ø 93.50 mm]

Planet 2762A002:

• The total height of the case is 42 mm;
• The outer diameter of the case is 162.05 mm;
• Inner diameter - 42 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 14 pcs.;

Sun gear 2763A016:

• Total height - 35 mm;
• Number of teeth on the gear - 82 pcs.;
• Gear outer diameter - 93.50 mm;
• Hub outer diameter - 117.90 mm;
• Hub height - 13.80 mm;
• The number of splines on the inside is 38 pcs.;

Ring gear 2721A030:

• Number of teeth - 110 pcs.;
• Gear width - 16.15 mm;
• Number of teeth on the outside - 30 pcs.;
• Outer diameter on the outer toothed side - 144.30 mm;

Thrust needle bearing 2950A005:

• Outer diameter - 60.85 mm;
• Inner diameter - 40.25 mm;
• Thickness - 3.80 mm;
• Quantity - 3 pcs.;

Tags: 2950A005
