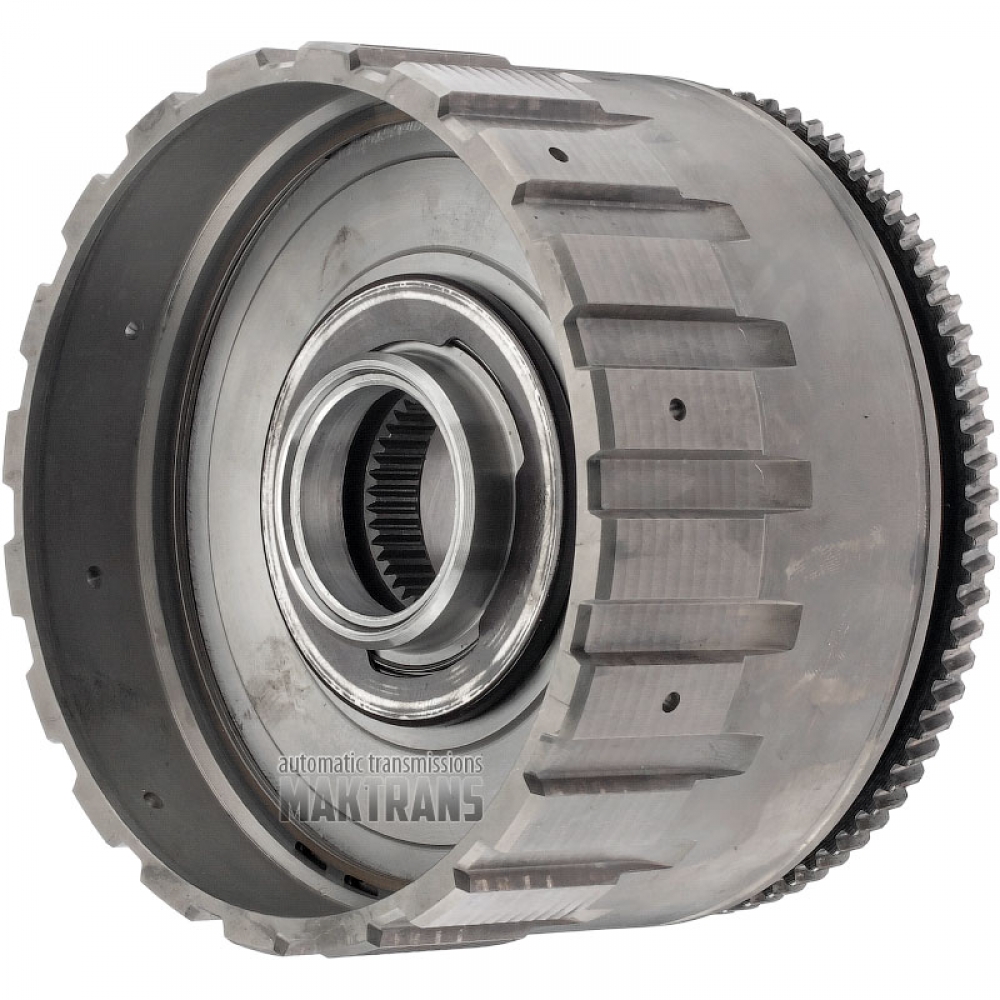

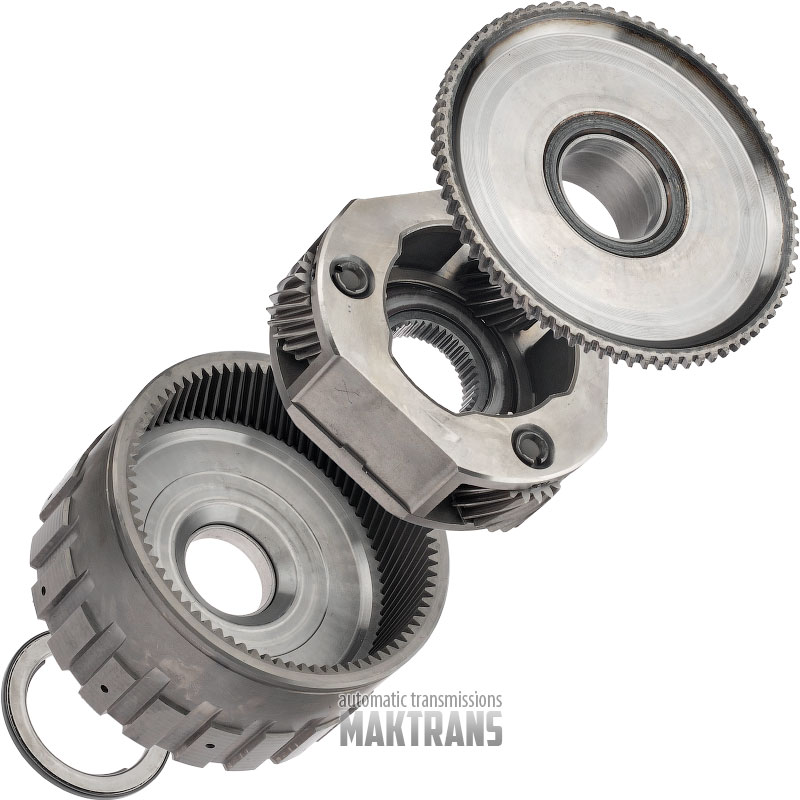

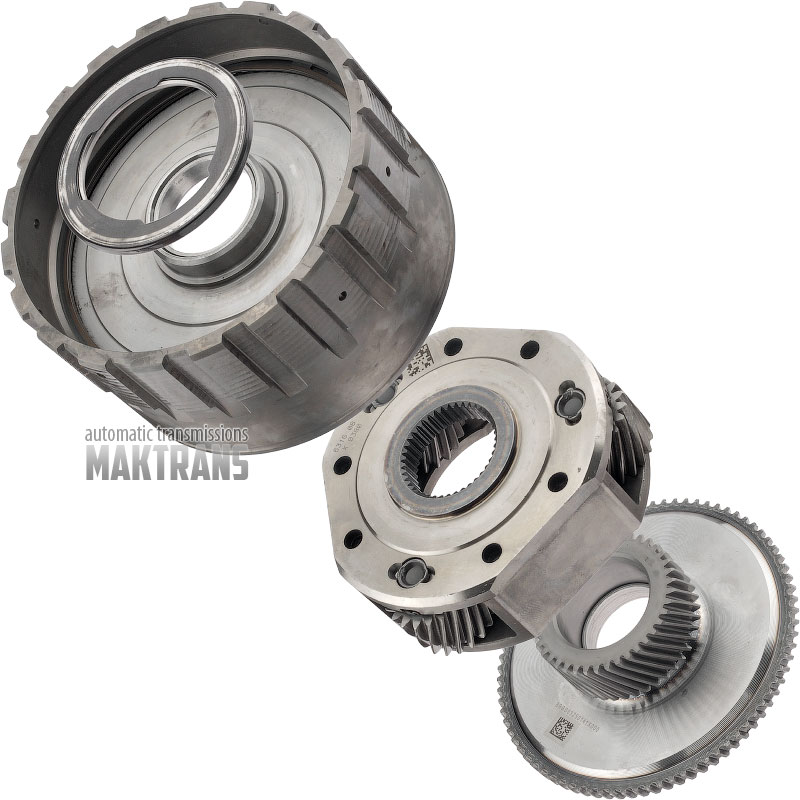

Overdrive Planetary GM 8L45 / [3 pinions (19 teeth on satellites), sun gear 41 teeth (outer Ø 55.20 mm), ring gear 79 teeth]

Ring gear:

• Total height - 64 mm;
• Outer diameter - 118.05 mm;
• Inner diameter of the sleeve - 30.95 mm;
• Number of teeth on the outside - 20 pcs.;
• Number of teeth on the gear - 79 pcs.;

Planet:

• Total height - 38 mm;
• The outer diameter of the case is 98.60 mm;
• The number of splines on the internal side 41 pcs.;
• Number of satellites - 3 pcs.;
• The number of teeth on the satellites is 19 pcs.;
• The outer diameter of the satellites is 28.45 mm;

Sun gear:

• Total height - 36 mm;
• Number of teeth on the gear - 41 pcs.;
• Inner diameter of the sleeve - 32.25 mm;
• Gear outer diameter - 55.20 mm;
• The outer diameter of the outer ring gear is 115.90 mm;
