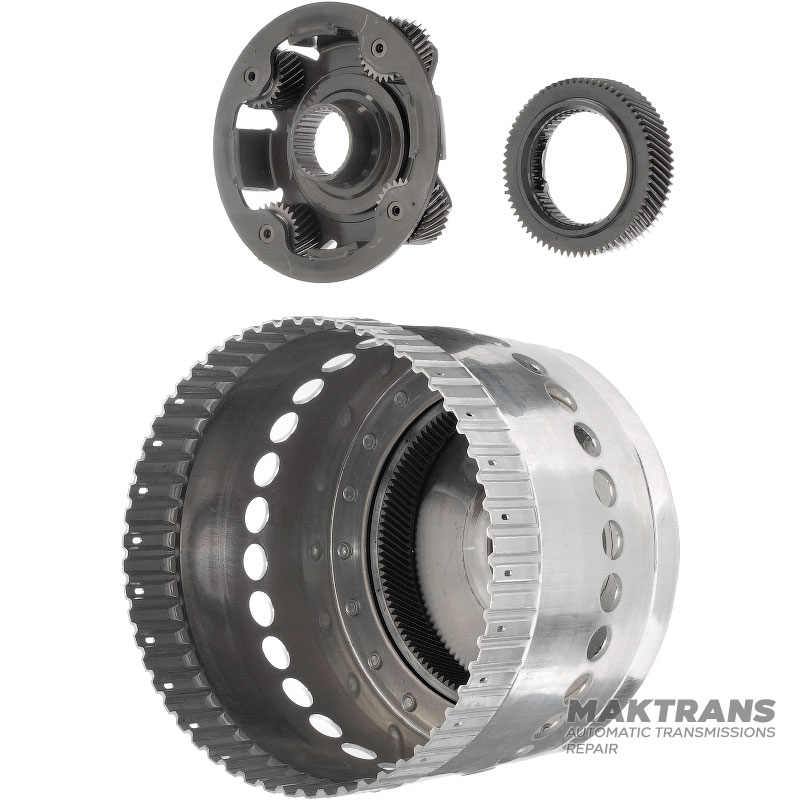

Planetary gear No. 2 MAZDA CX-90 / CX-60 2.5L-3.3L HYBRID - 4 stellites (36 teeth per planet), ring gear 122 teeth, sun gear 70 teeth

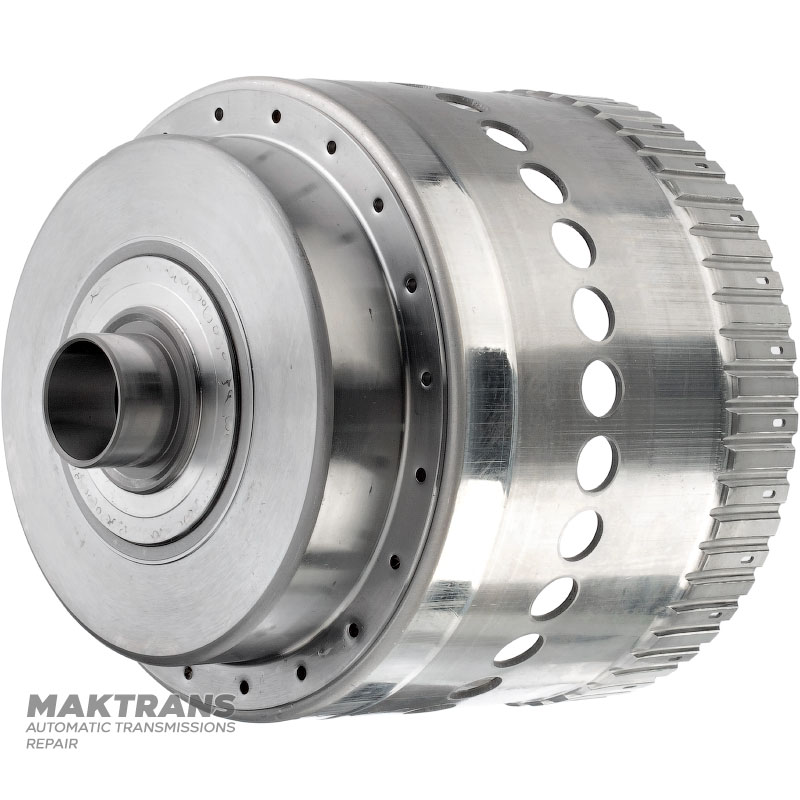

Shell/ring gear:

• Total height - 208 mm;

Shell outer diameter:

• 40.75 mm;
• 162.60 mm;
• 207.25 mm;
• The number of teeth on the ring gear is 122 pcs.;

Planetary gear:

• Total height - 31 mm;
• The outer diameter of the case is 138.70 mm;
• The number of slots on the inside is 32 pcs.;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 26 pcs.;

Sun gear:

• Total height - 22.15 mm;
• Number of teeth - 70 pcs.;
• Outer diameter - 84.50 mm;
• Gear width - 19.55 mm;
• The number of slots on the inside is 52 pcs.;
