Planetary gear #3 MAZDA CX-90 / CX-60 2.5L-3.3L HYBRID — 4 satellites (34 teeth on the satellite), sun gear 38 teeth / 40 splines (outer Ø 56.70 mm), ring gear 106 pcs (outer Ø 123.65 mm)

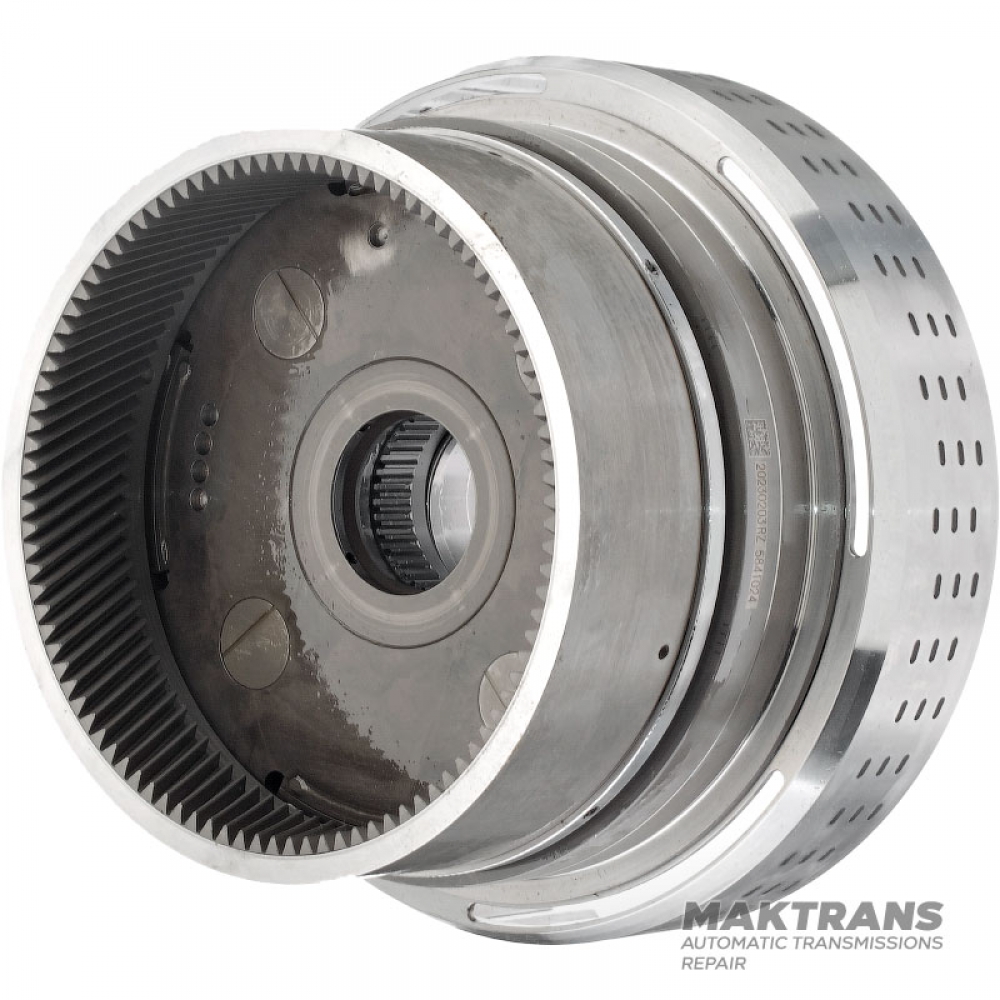

Ring gear:

• Total height - 72 mm;
• Number of teeth - 106 pcs;
• Gear outer diameter - 123.65 mm;
• The outer diameter of the hub is 193.85 mm;
• Inner diameter (central hole) - 44.95 mm;

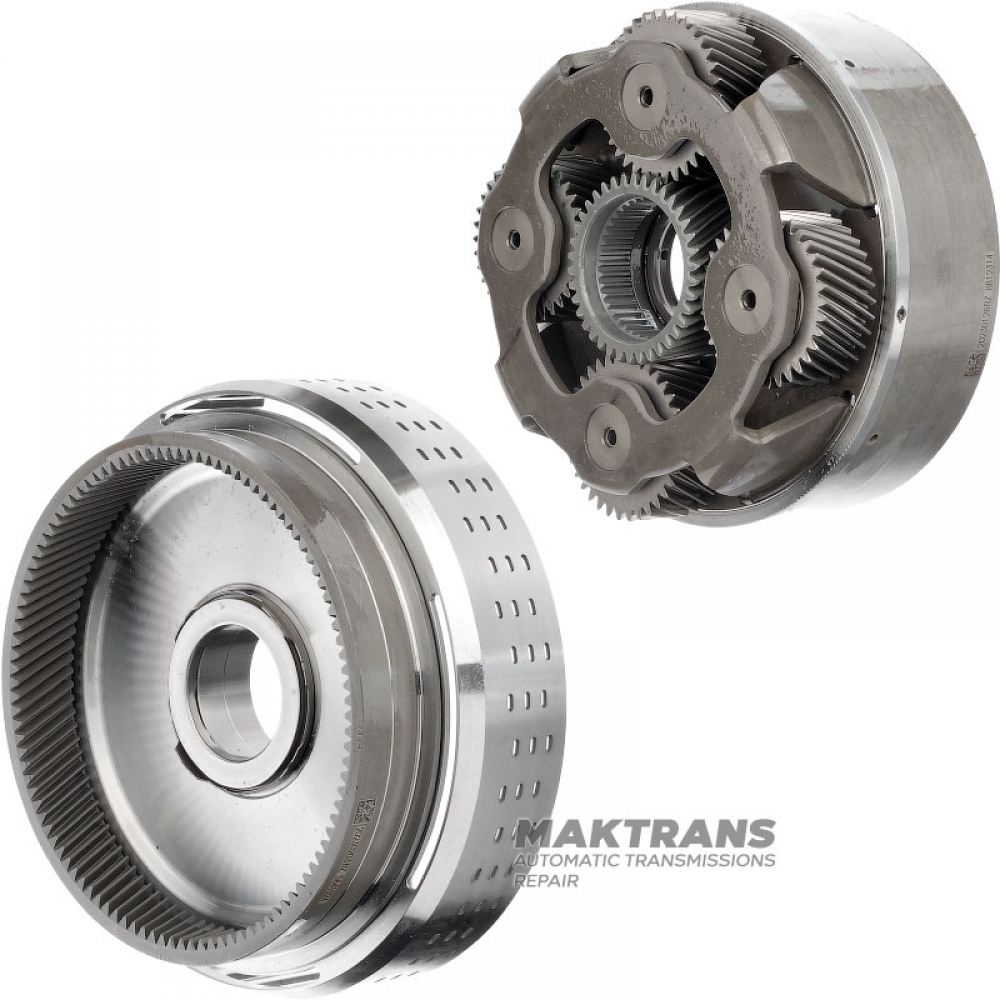

Planetary gear:

• Total height - 80 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 34 pcs.;
• The number of teeth on the ring gear is 98 pcs.;
• The outer diameter of the ring gear is 154.15 mm;

Sun gear:

• Total height - 25.75 mm;
• Number of teeth - 38 pcs.;
• Outer diameter - 56.70 mm;
• Number of splines - 40 pcs.;
