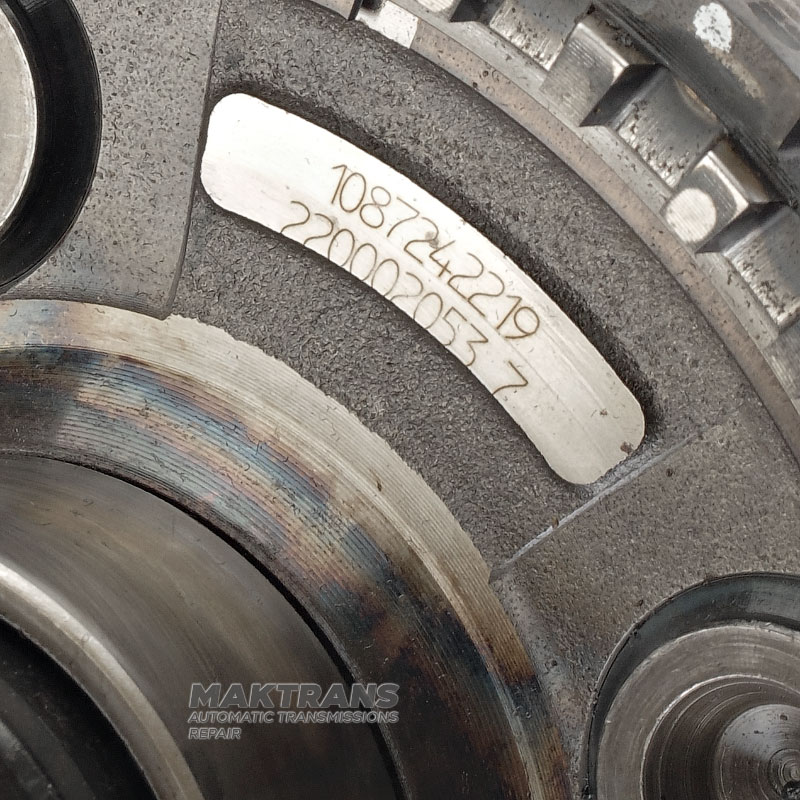

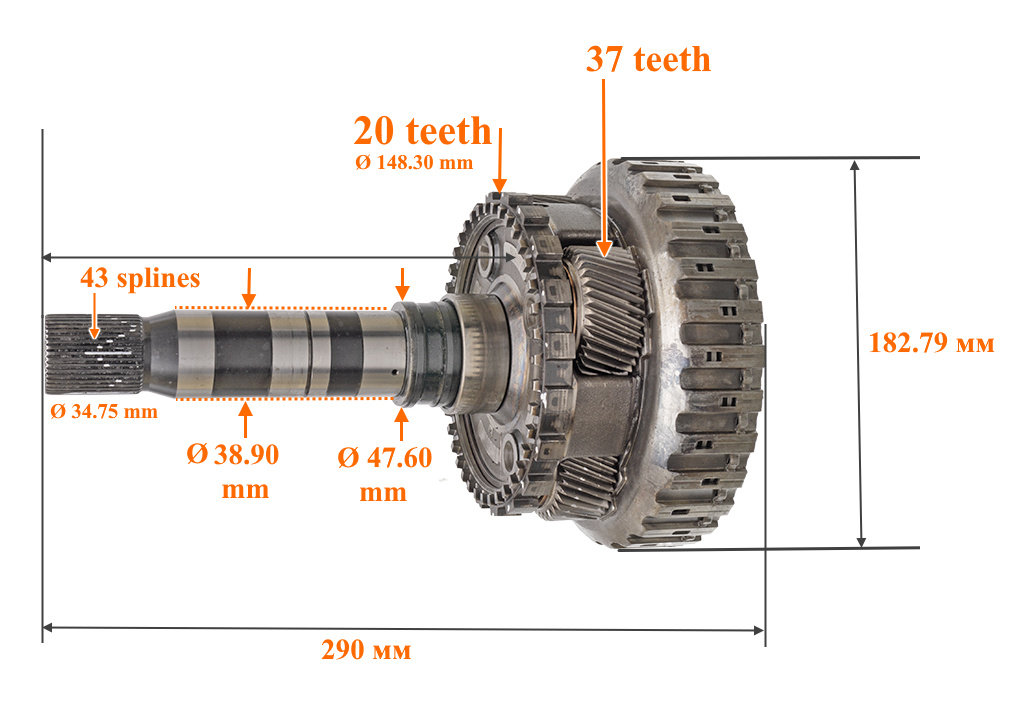

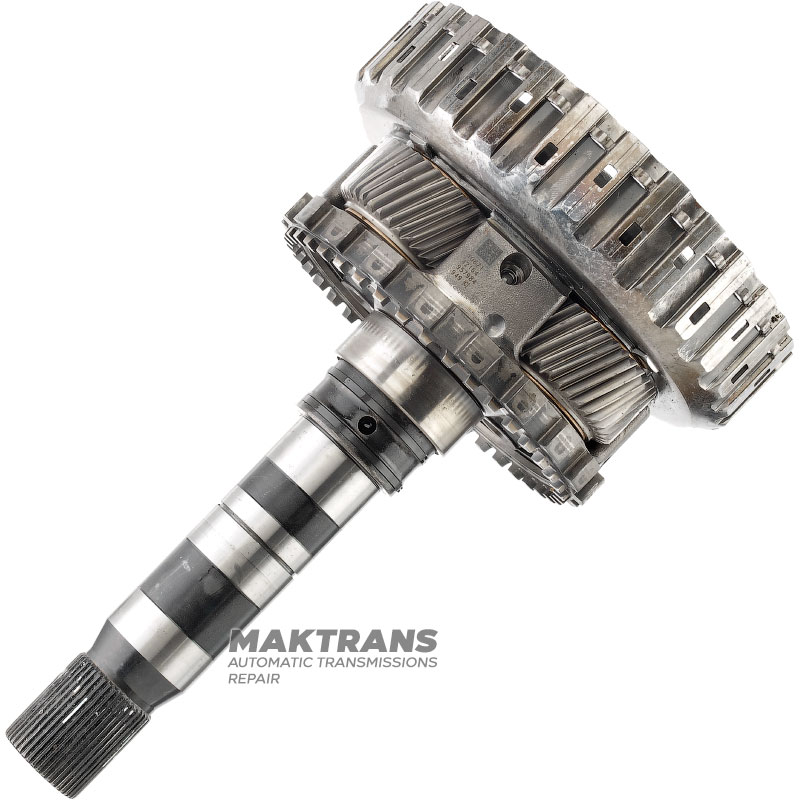

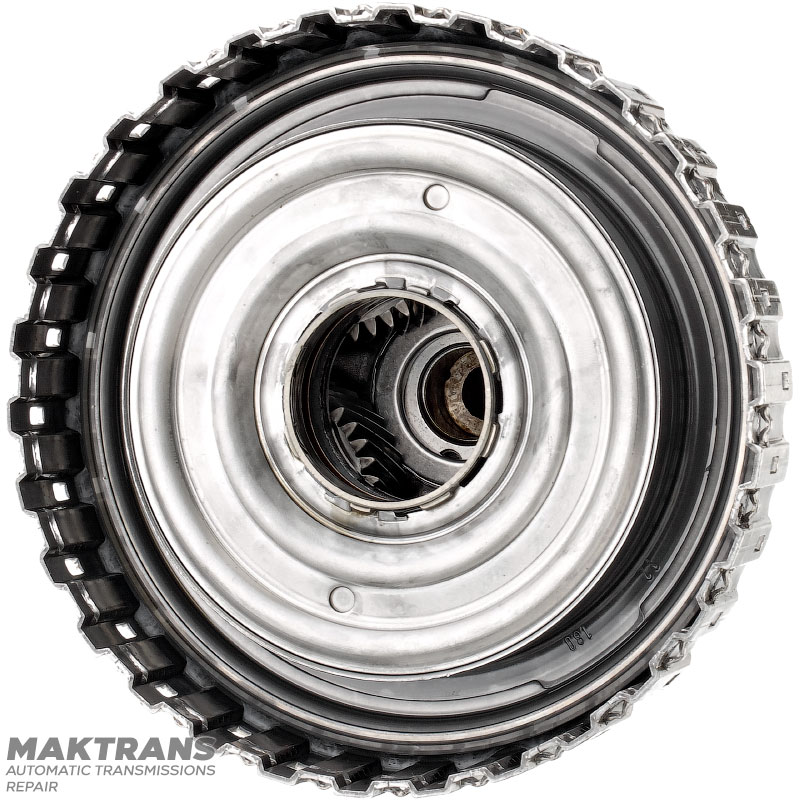

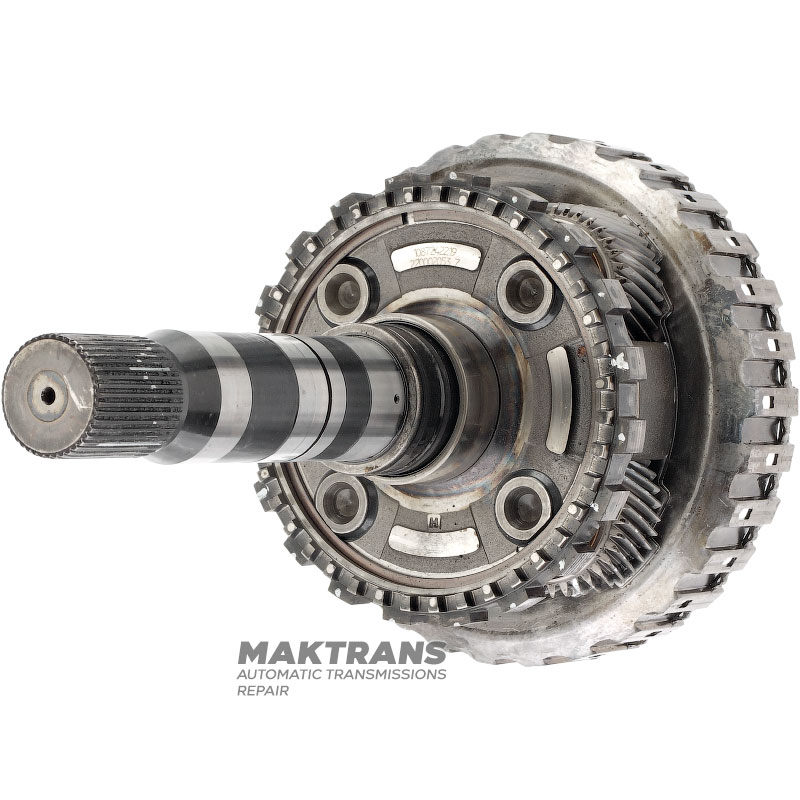

Planetary gear No. 4, D-clutch drum (4 friction discs), output shaft (4WD) ZF 8HP70, 8HP75 - 1087242219, overall height 290 mm, 43 splines (outer Ø spline 34.75 mm), 4 satellites (37 teeth)

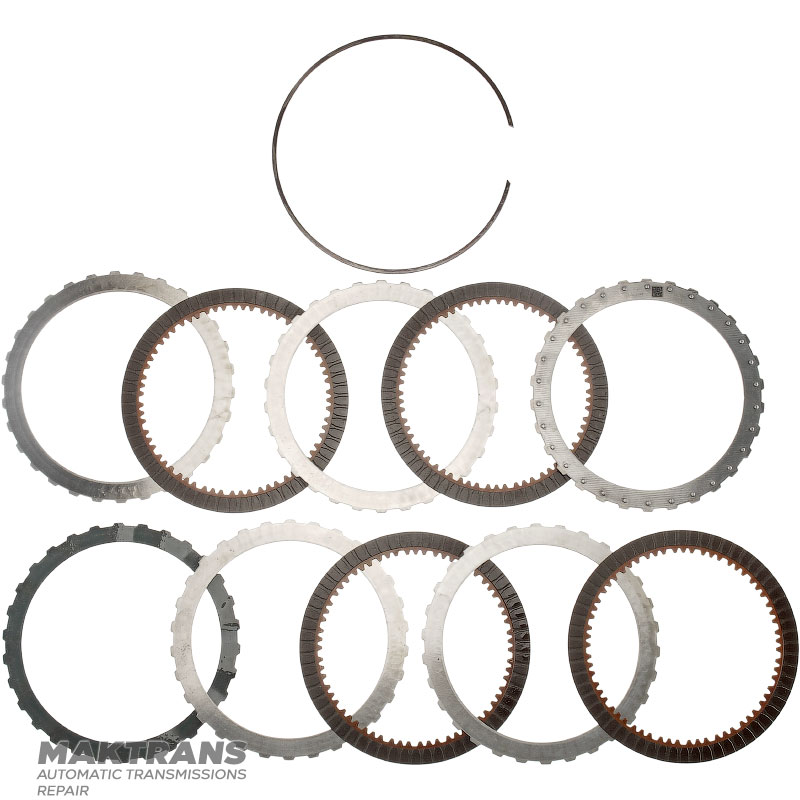

D Clutch Steel and Friction Disc Set:

• The total thickness of the set is 19.95 mm;
• Height from piston to retaining ring - 20 mm;

Support disk:

• Thickness - 3.05 mm;
• Inner diameter - 145.35 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.15 mm;
• Outer diameter - 172 mm;
• Number of teeth - 63 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 145.45 mm;
• Number of teeth - 30 mm;
• Number of discs in the set - 4 pcs.;
