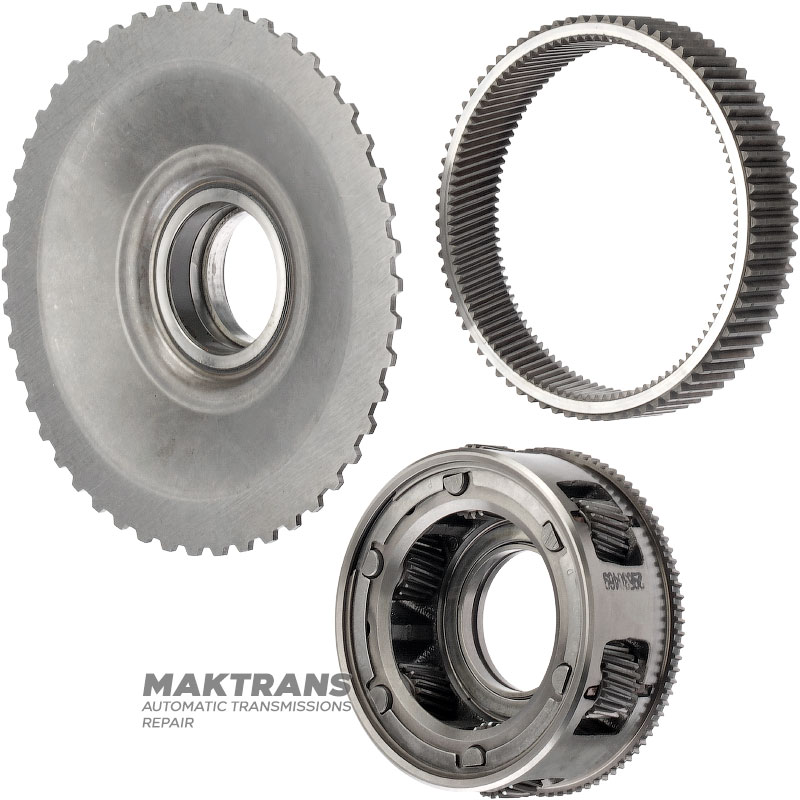

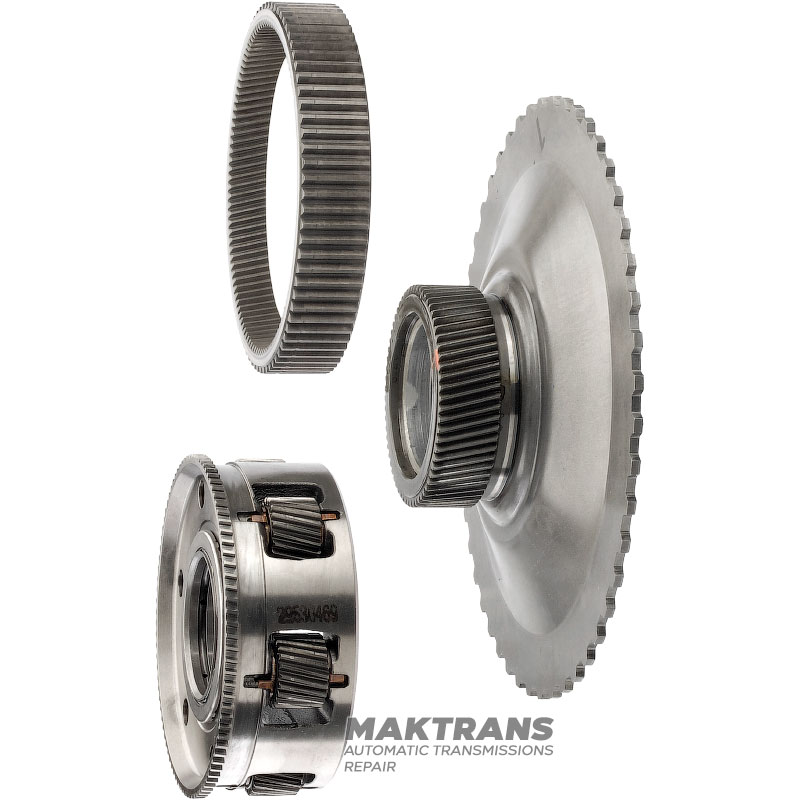

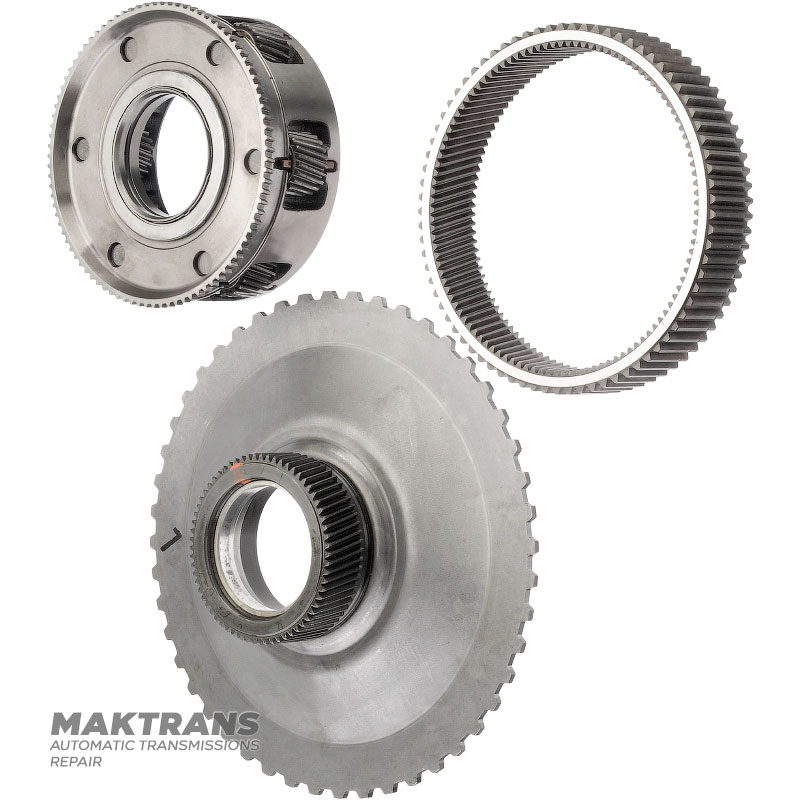

Planetary gear P1 ALLISON 3000 Series - 6 satellites (22 teeth, external Ø 36.45 mm)

Planetary gear:

• Overall height - 66.50 mm;
• Outer case diameter - 163.55 mm;
• Inner diameter - 104.85 mm / 68.95 mm;
• Number of satellites - 6 pcs.;
• Number of teeth on satellites - 22 pcs.;
• The outer diameter of the satellites is 36.45 mm;

Ring gear:

• Overall height - 36.25 mm;
• Outer diameter - 190.50 mm;
• Number of teeth on the helical gear - 109 pcs.;
• Number of teeth on the outer side - 77 pcs.;

Sun gear:

• Number of teeth - 67 mm;
• Gear outer diameter - 103.45 mm;
• Inner diameter of the sleeve - 68.15 mm;
• Number of teeth on the gear ring - 48 pcs.;
• The outer diameter of the flange gear ring is 281.10 mm;
