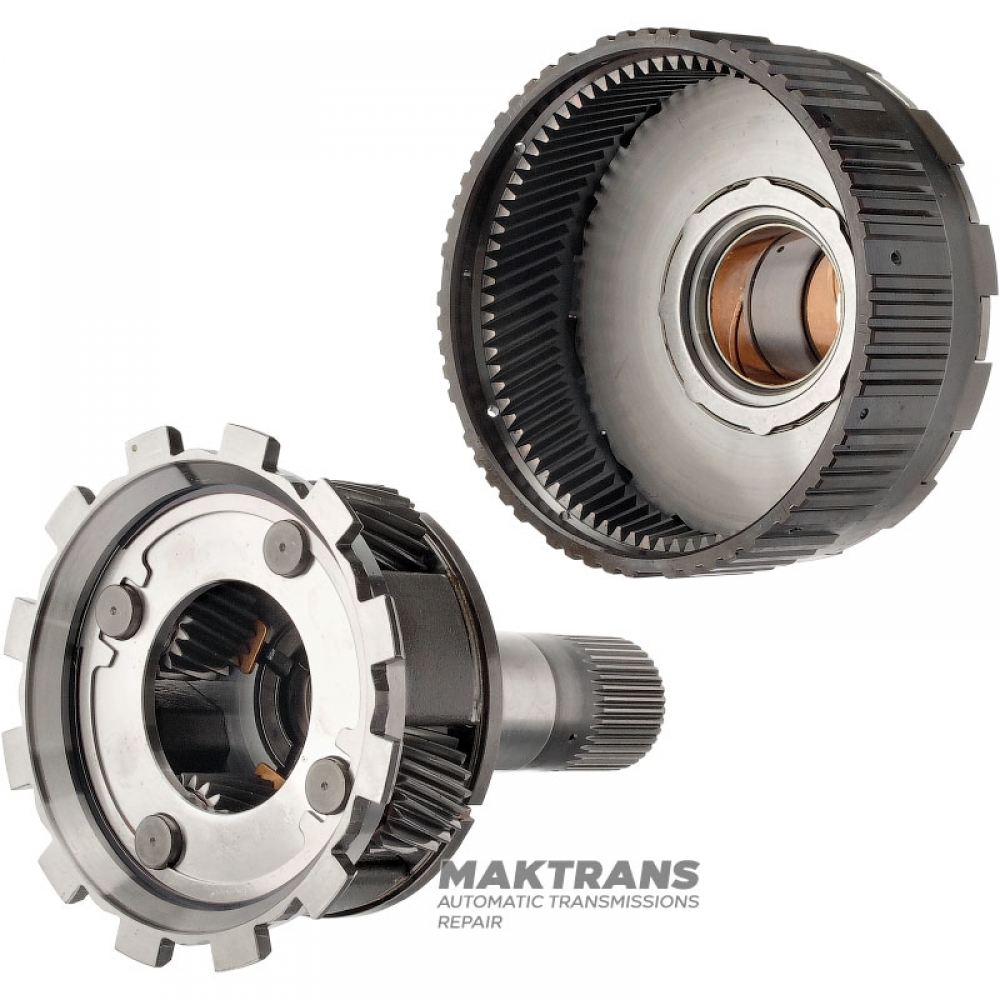

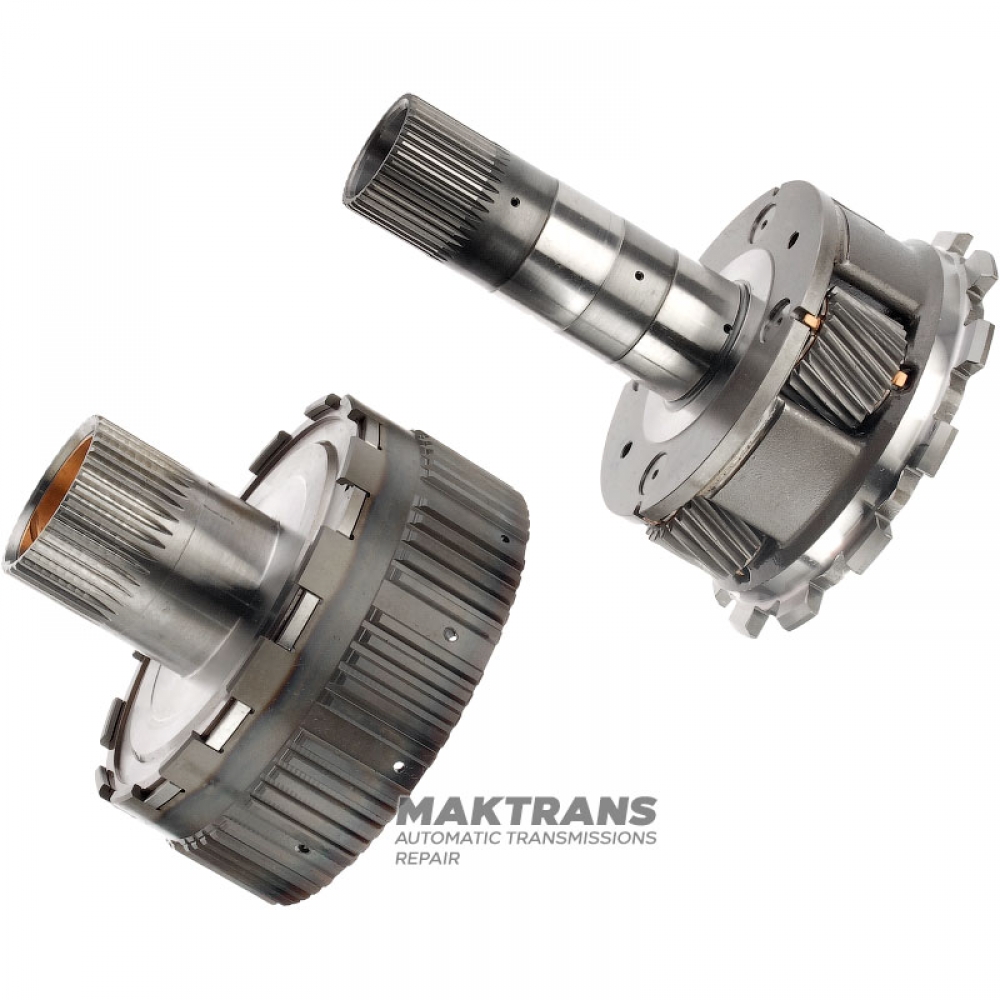

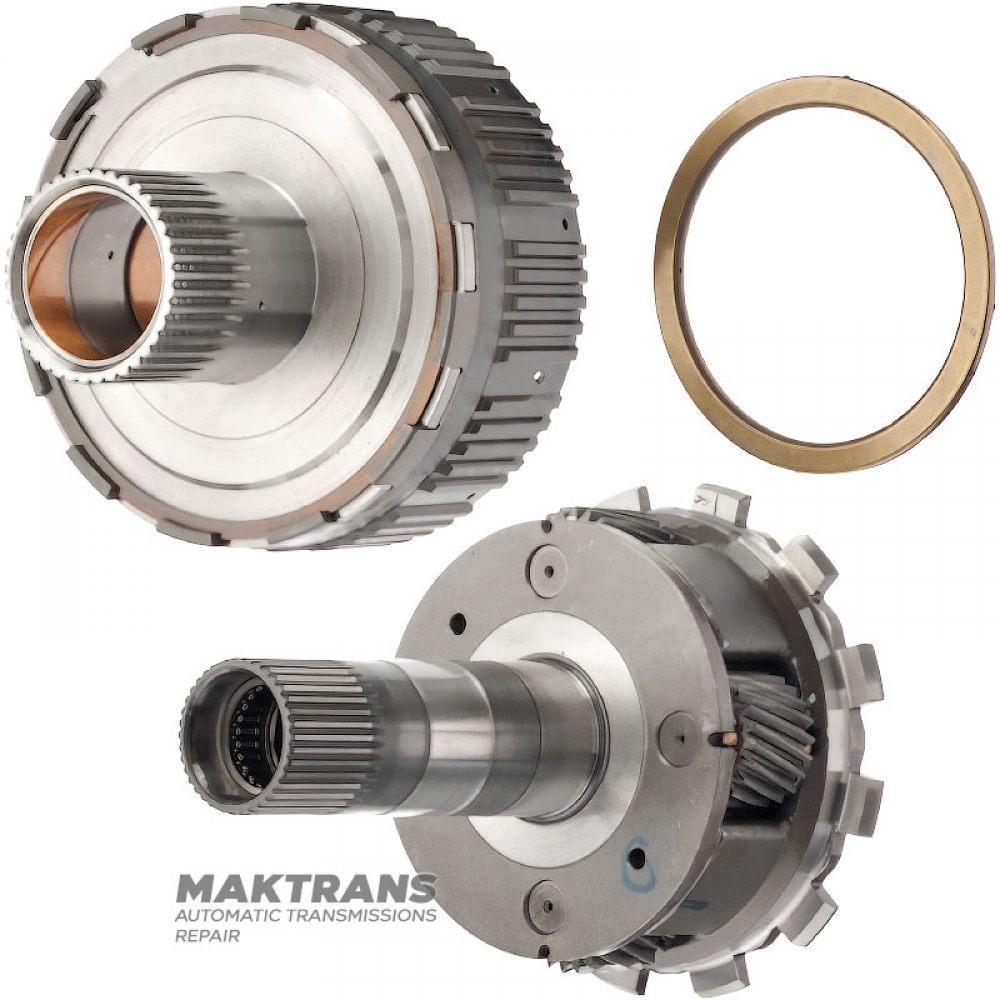

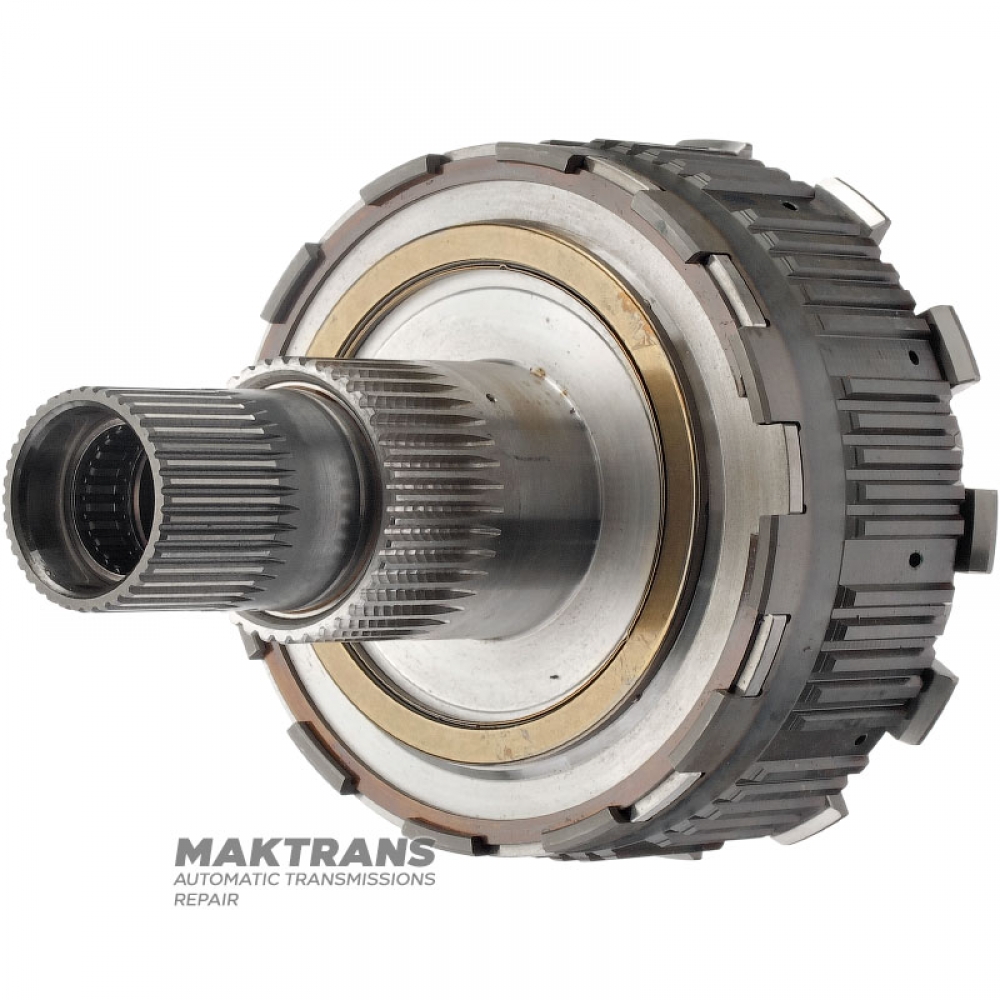

Planetary gear P2 NISSAN RE6R01A / AISIN WARNER A466ND - 4 satellites (22 teeth), 82 teeth on the ring gear

Planetary gear P2:

• Overall height - 184 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 40.90 mm;
• The outer diameter of the working parts of the neck is 41.95 mm;
• Number of teeth on the gear ring - 12 pcs.;
• Outer diameter of gear ring - 149.05 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the satellite - 22 pcs.;

Ring gear:

• Overall height - 121 mm;
• Neck height - 63 mm;
• Number of splines on the neck - 39 pcs.;
• Inner diameter of the sleeve - 41.95 mm;
• The outer diameter of the splined part is 53.95 mm;
• Ring gear outer diameter: 144.95 mm;
• Number of teeth on the ring gear - 82 pcs.;
