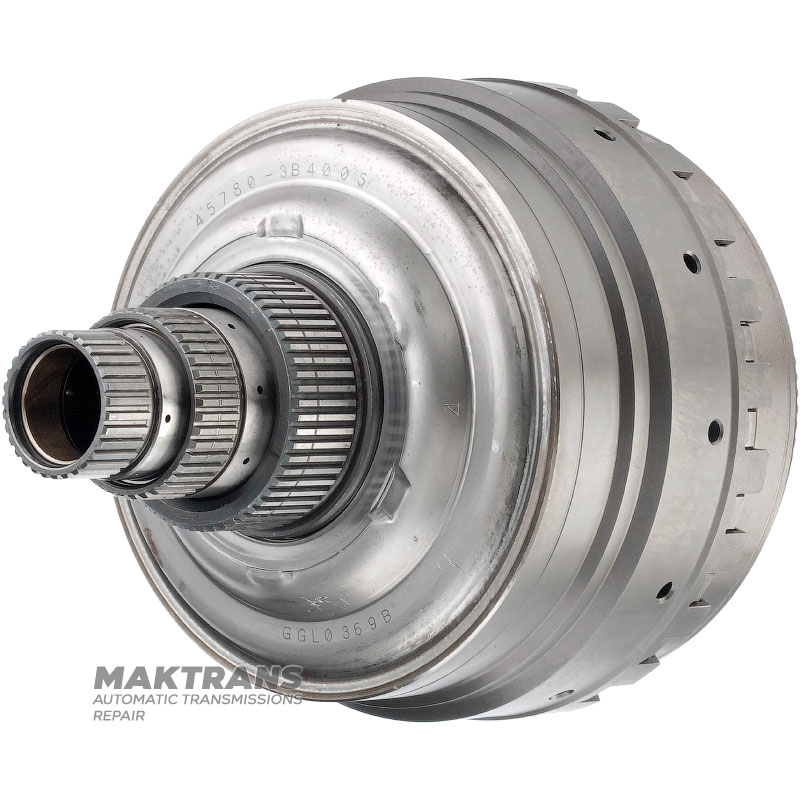

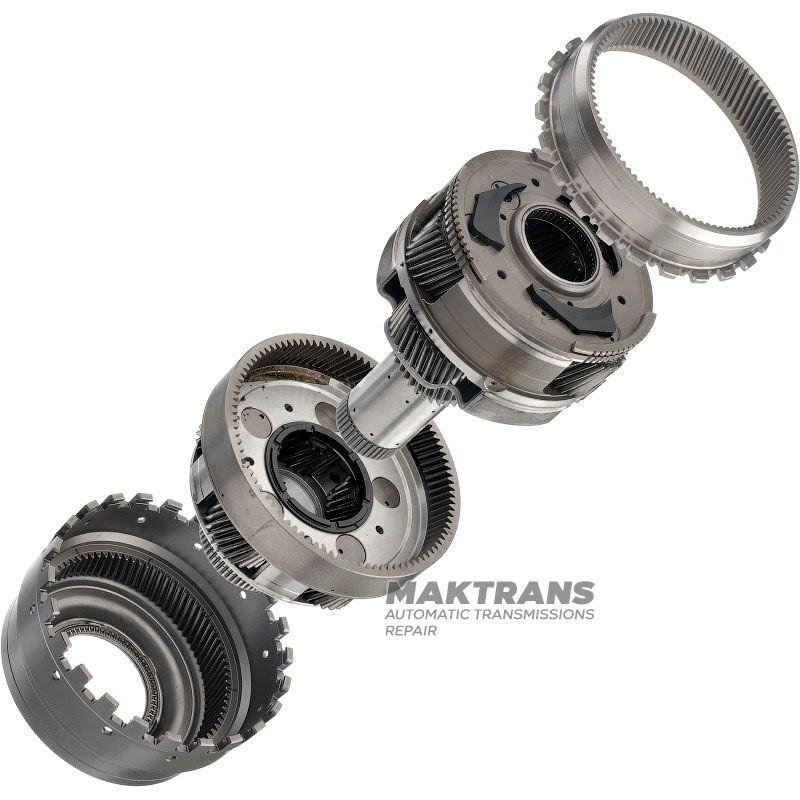

Planetary gear set HYUNDAI / KIA A6LF1 457803B400 457603B200 457603B201— Output sun gear (length 96.80 mm) / Overdrive sun gear (length 146.45 mm)

Ring gear OUTPUT:

• Total height - 90 mm;
• Outer diameter - 156.75 mm / 141 mm
• The number of teeth on the ring gear is 83 pcs.;

Planetary gear OUTPUT:

• Total height - 105 mm;
• The number of splines on the neck is 57 pcs.;
• The outer diameter of the spline part is 58.80 mm;
• Inner neck diameter - 44.85 mm;
• The outer diameter of the satellite housing is 120.25 mm;
• The outer diameter of the ring gear is 146.15 mm;
• Number of satellites - 5 pcs.;
• Number of satellites - 25 pcs.;
• The number of teeth on the ring gear is 95 mm; ​​​​

Sun gear OUTPUT (short):

• Total height - 96.80 mm;
• Number of teeth - 32 pcs.;
• Gear outer diameter - 52.40 mm;
• Gear width - 26.50 mm;
• The outer diameter of the working part of the neck is 42.85 mm;
• Number of splines - 41 pcs.;
• The outer diameter of the spline part is 42.80 mm;
• Inner diameter of the sleeve - 33.85 mm;

Planetary gear OVERDRIVE:

• Total height - 75 mm;
• The outer diameter of the case is 122.20 mm;

Front satellites:

• Number of satellites - 3 pcs.;
• Number of teeth - 33 pcs.;
• The outer diameter of the satellite is 49.90 mm;

OVERDRIVE ring gear satellites:

• Number of satellites - 3 pcs.;
• The number of teeth on the satellite is 26 pcs.;

OVERDRIVE sun gears:

• Number of satellites - 3 pcs.;
• The number of teeth on the satellite is 25 pcs.;

OVERDRIVE sun gear:

• Total length - 146.25 mm;
• Number of teeth - 28 pcs.;
• Gear outer diameter - 43.65 mm;
• The outer diameter of the working part of the neck is 33.70 mm;
• Number of splines - 31 pcs.;
• The outer diameter of the spline part is 32.85 mm;

OVERDRIVE ring gear:

• Overall height - 35.45 mm;
• Outer diameter - 142.10 mm;
• Number of teeth - 94 mm;
• The number of teeth on the outer ring is 24 pcs.;
• The outer diameter of the ring gear is 154.40 mm;
