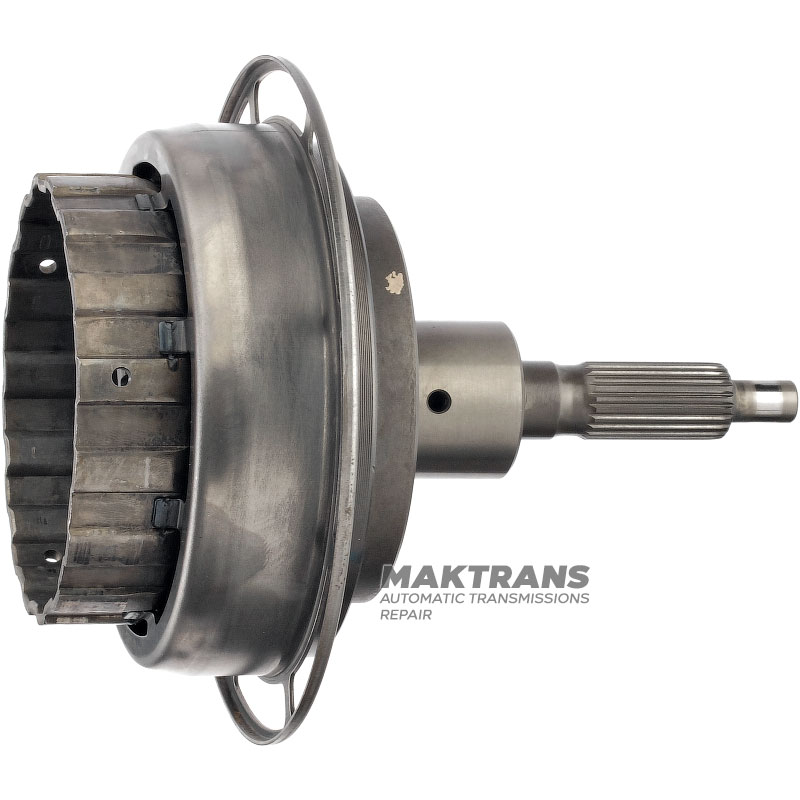

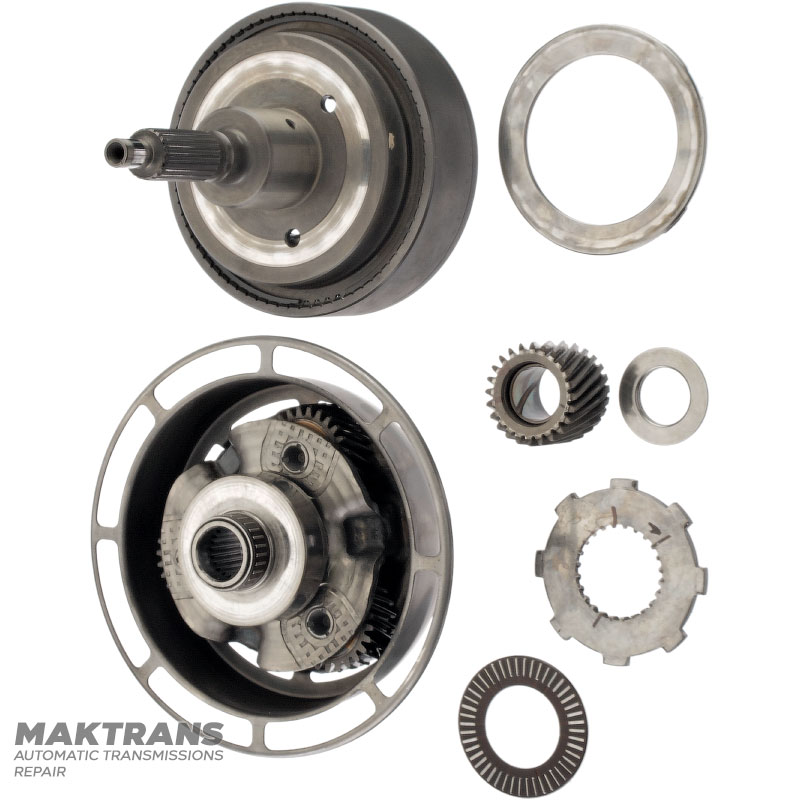

Planetary gear (with ring for sensor, 8 blades) OVERDRIVE FORD A4LD, 4R44E, 4R55E, 5R55E (since 1997-up) — 3 satellites (25 teeth), sun gear 24 teeth (outer Ø 37.10 mm), ring gear 70 teeth (outer Ø 115.50 mm)

Planetary gear:

• Overall height - 83 mm;
• Number of splines on the inner side - 20 pcs.;
• The outer diameter of the overrunning clutch hub is 54.85 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 25 pcs.;
• The outer diameter of the speed sensor ring is 153.80 pcs.;
• Number of blades on the crown - 8 pcs.;
• The outer diameter of the OVERDRIVE hub is 99.65 mm;

Sun gear:

• Total height - 30 mm;
• Number of teeth - 24 pcs.;
• Outer diameter - 37.15 mm;
• The inner diameter of the sleeve is 19 mm;

Sun gear flange:

• Thickness - 3.15 mm;
• Number of teeth on the outer side - 8 pcs.;
• Outer diameter - 67.35 mm;
• Number of splines on the inner side - 24 pcs.;
• Marking - 84GT-7660-ABD2M2A;

Ring gear (assembled with shaft):

• Overall height - 149 mm;
• Number of splines on the shaft - 22 pcs.;
• The outer diameter of the splined part is 18 mm;
• The outer diameter of the working part at the base is 36 mm;
• The outer diameter of the ring gear is 115.50 mm;
• Number of teeth on the ring gear - 70 pcs.;

Tags: 84GT-7660-AB, 84GT-7660-ABD2M2A
