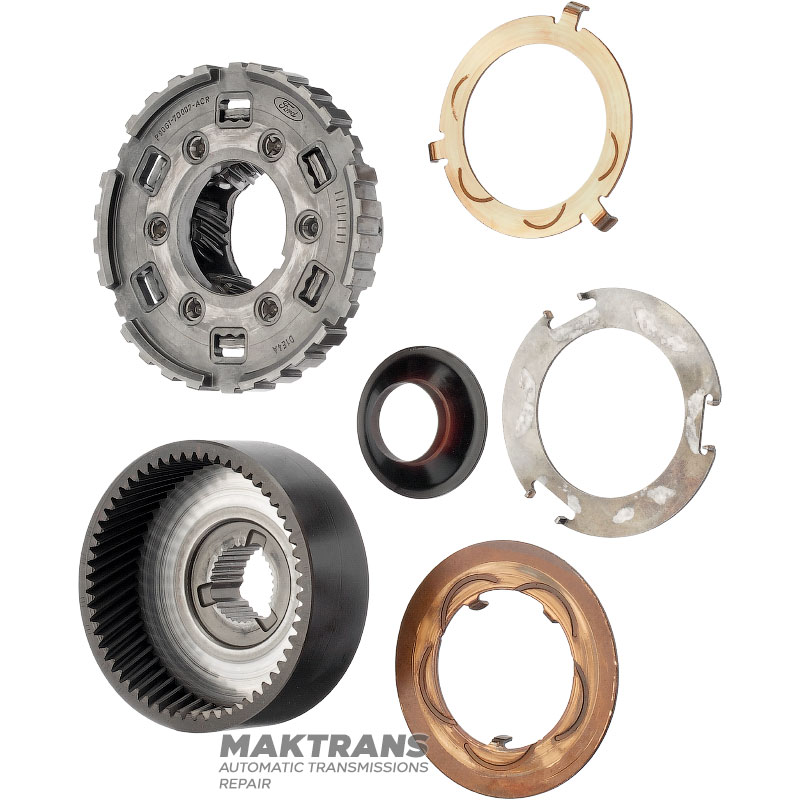

Rear planetary gear FORD A4LD, 4R44E, 4R55E, 5R55E, 5R55N, 5R55S, 5R55W, P90GT-7D007-ACR — 6 satellites (15 teeth on satellites, external Ø 24.50 mm), ring gear 57 teeth (external Ø 93.95 mm)

Planetary gear:

• Total height - 35 mm;
• The outer diameter of the gear ring is 106.95 mm;
• Number of teeth on the crown - 30 pcs.;
• Width of gear rim - 12.20 mm;
• Number of satellites - 6 pcs.;
• Number of teeth on satellites - 15 pcs.;
• The outer diameter of the satellites is 24.50 mm;

Ring gear:

• Overall height - 46.50 mm;
• Number of teeth - 57 pcs.;
• The outer diameter of the gear is 94 mm.;
• Number of splines on the inner side - 25 pcs.;
• Outer diameter of the neck - 40.80 mm;
