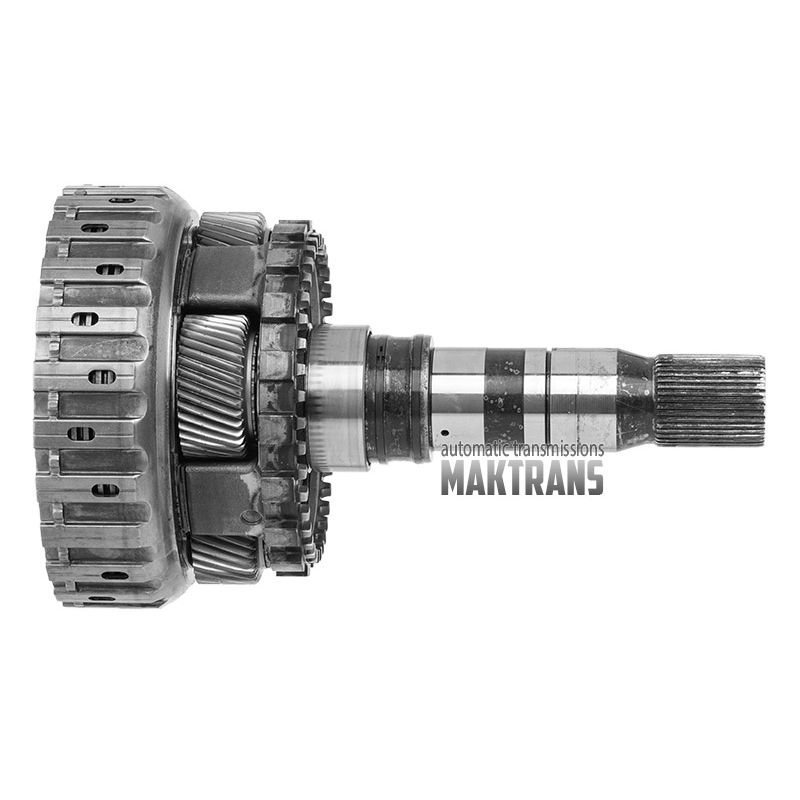

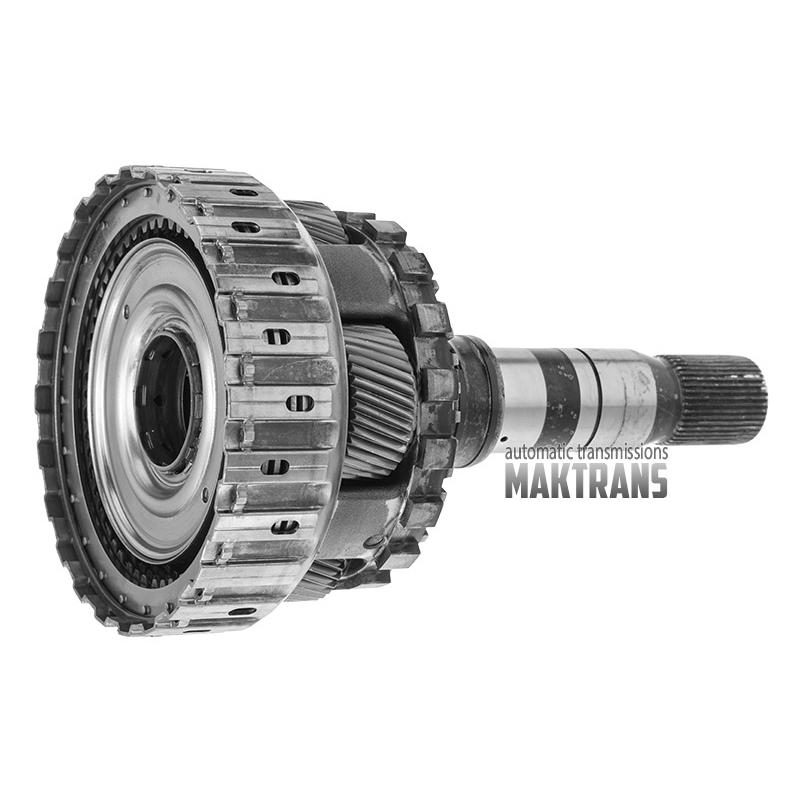

Rear Planetary Gear No.4 Output Shaft ZF 8HP45 4WD Assy - Overall Height 260mm, 43 Splines, 4 Pinions (35 Teeth on Pinions)

• Overall height - 259.50 mm;

Output shaft:

• Number of splines - 43 pcs.;
• Working part diameter - 38.90 mm;
• The diameter of the housing bushing at the base of the shaft is 55 mm;

Teflon shaft rings:

• Number of Teflon rings - 2 pcs.;
• The diameter of the Teflon rings is 47.45 mm;
• Thickness - 2.6 mm;

Number of teeth of the parking gear - 18 pcs.;

Planetary gear No. 4

• Number of satellites - 4 pcs.;
• Number of satellite teeth - 37 pcs.;
• The height of the toothed part of the satellite is 23 mm;

D Clutch Clutch Pack Steel and Friction Disc Kit:

• Total thickness of the package - 20.70 mm;

Support disk:

• Original number - 1090142372;
• Thickness - 3 mm;
• Inner diameter - 125.70 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.10 mm;
• Inner diameter - 125.70 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 2.10 pcs.;
• Outer diameter - 147.50 mm;
• Number of teeth - 54 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc:

• Thickness - 0.55 mm;
• Inner diameter - 128.10 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Retaining ring:

• Thickness - 2.55 mm;
