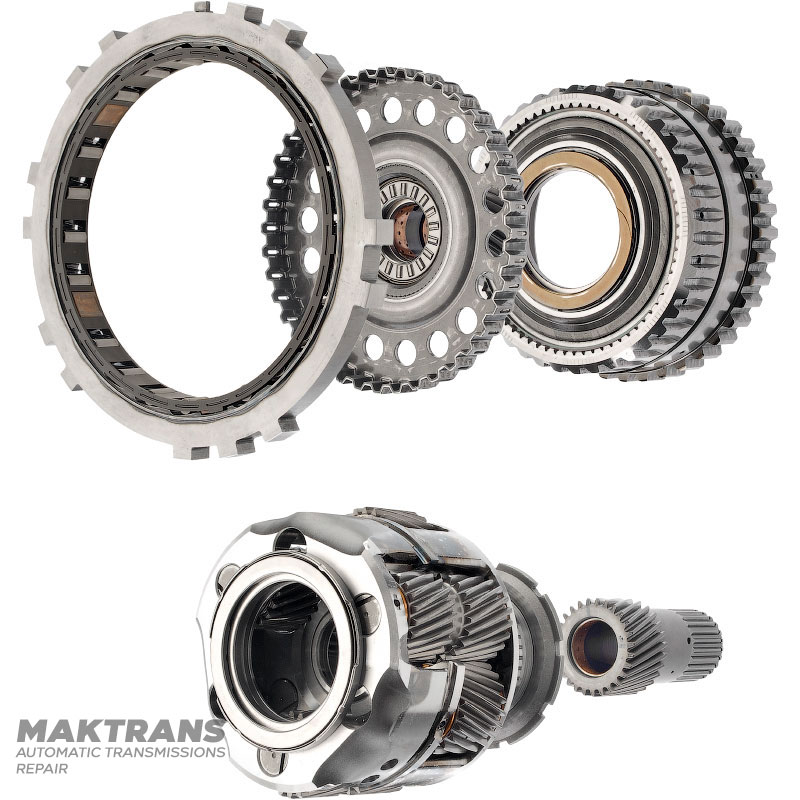

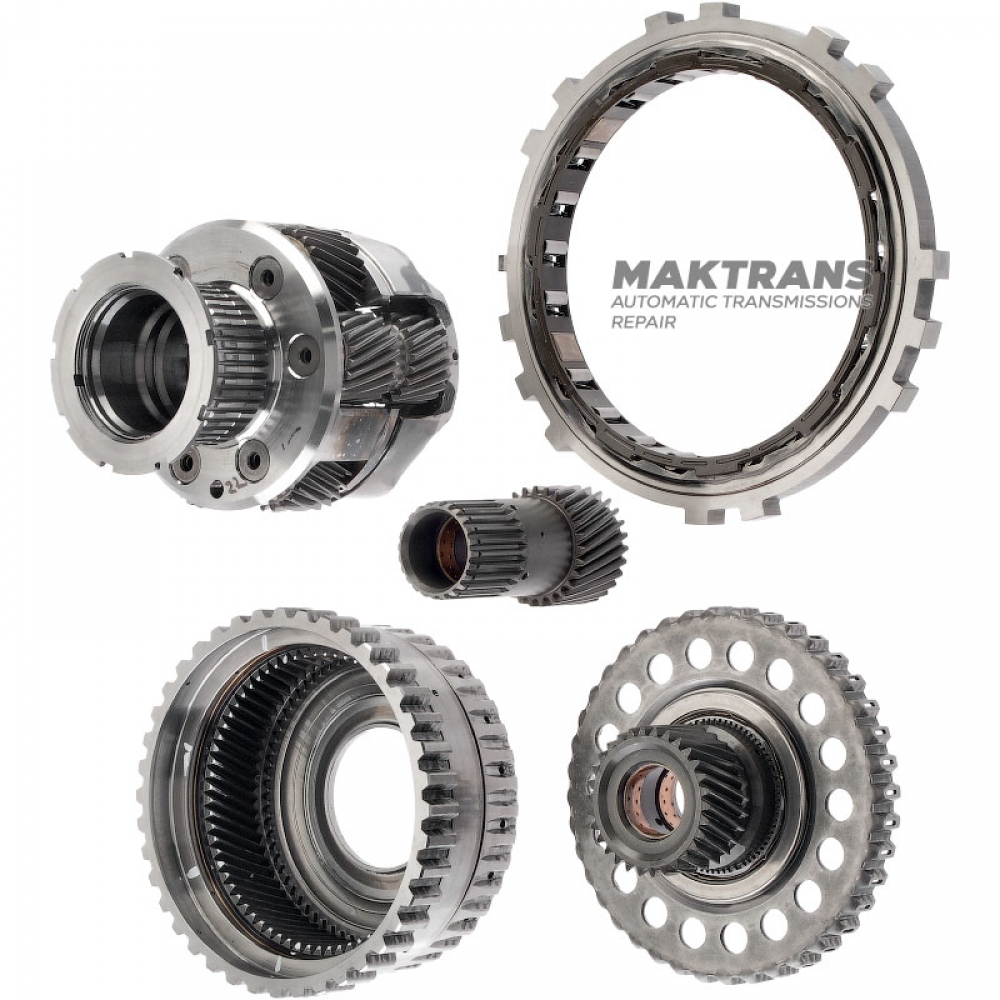

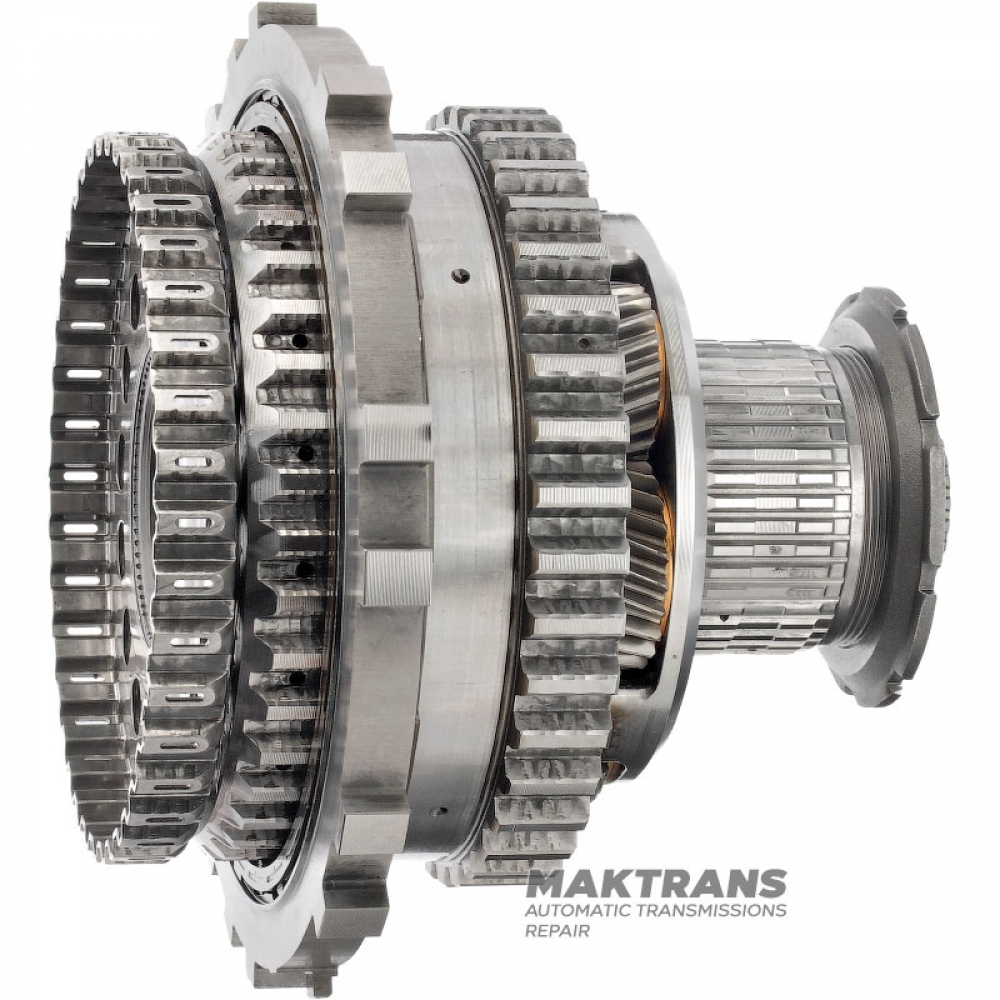

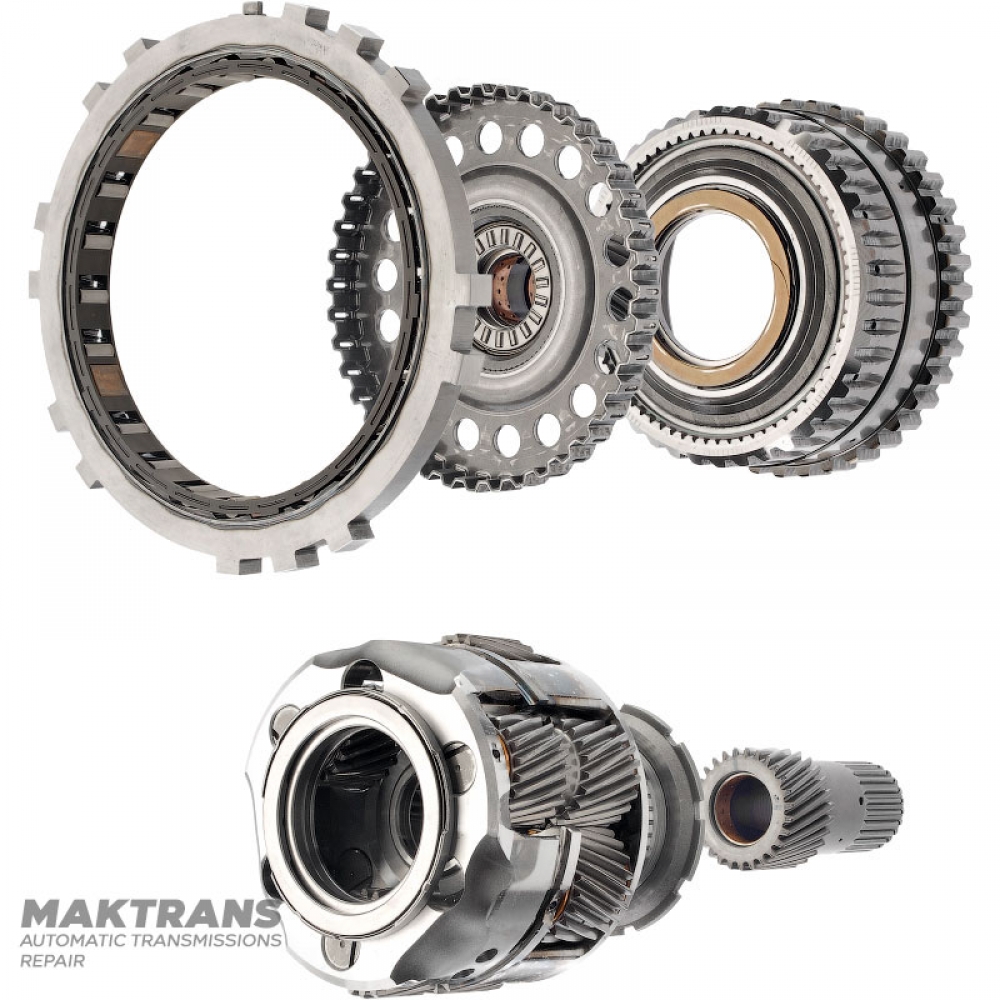

Rear Planetary Gear TOYOTA U760E — 3572033070, 3572033050, 3572073010

The kit includes:

Rear planetary gear:

• Overall height - 129 mm;
• Number of splines on the neck - 42 pcs.;
• The outer diameter of the satellite housing is 114 mm;

Front sun gear satellites:

• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 22 pcs.;

Rear sun gear and ring gear satellites:

• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 20 pcs.;

Ring gear:

• Total height - 70 mm;
• Number of teeth - 69 pcs.;
• The outer diameter of the working part of the overrunning clutch is 143.35 mm;

Overrunning clutch:

• Width - 17.80 mm;
• Inner diameter - 144 mm;
• Number of blocking elements - 20 pcs.;

Sun gear, front:

• Overall height - 93 mm;
• Number of splines - 24 pcs.;
• The inner diameter of the bushings is 25.55 mm;
• Outer diameter of spline part - 37 pcs.;
• Number of teeth on the gear - 27 pcs.;
• Gear outer diameter - 46.80 mm;

Sun Gear Rear, C1 Clutch Hub:

• Overall height - 61 mm;
• Number of teeth on the gear - 30 pcs.;
• The outer diameter of the gear is 55 mm;
• Inner diameter of the sleeve - 25.40 mm;
• C1 Clutch Hub Outer Diameter - 141.70mm;
• C1 Clutch Hub Height - 15.60mm;

Tags: 35720-33070, 35720-33050, 35720-73010
