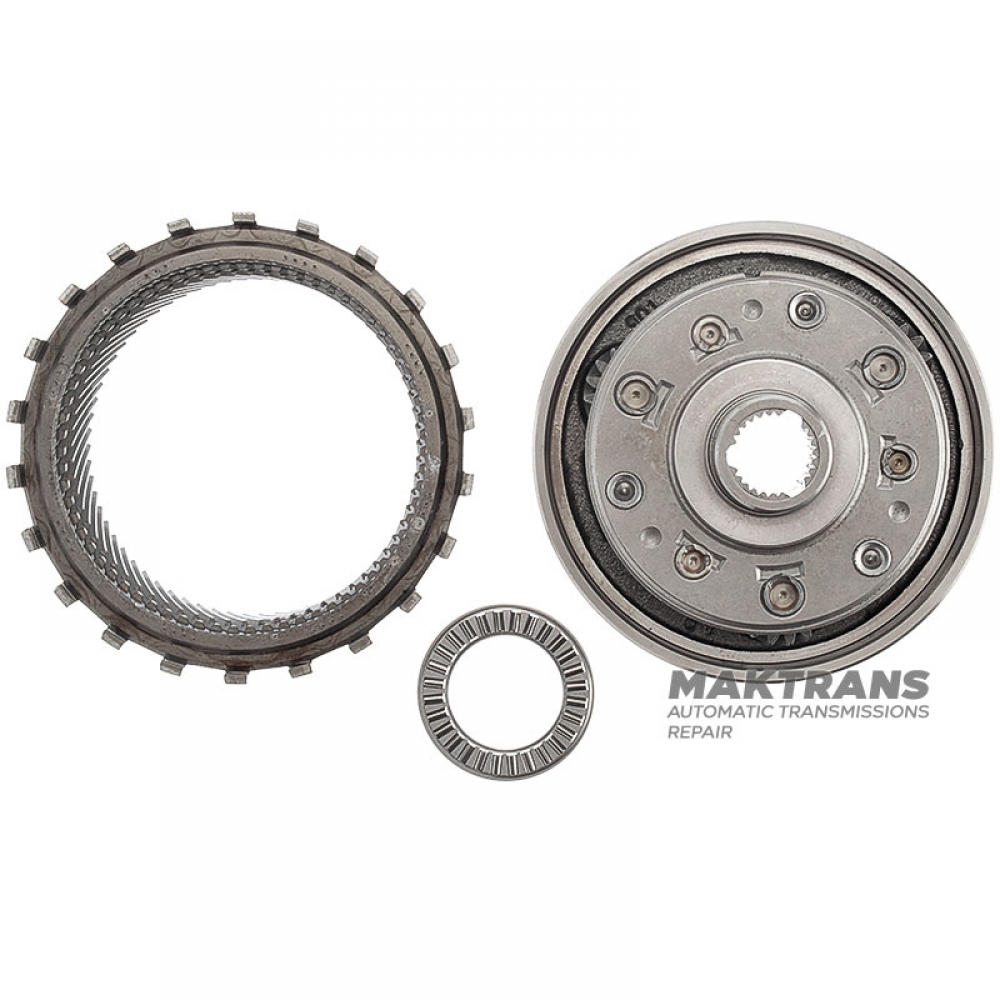

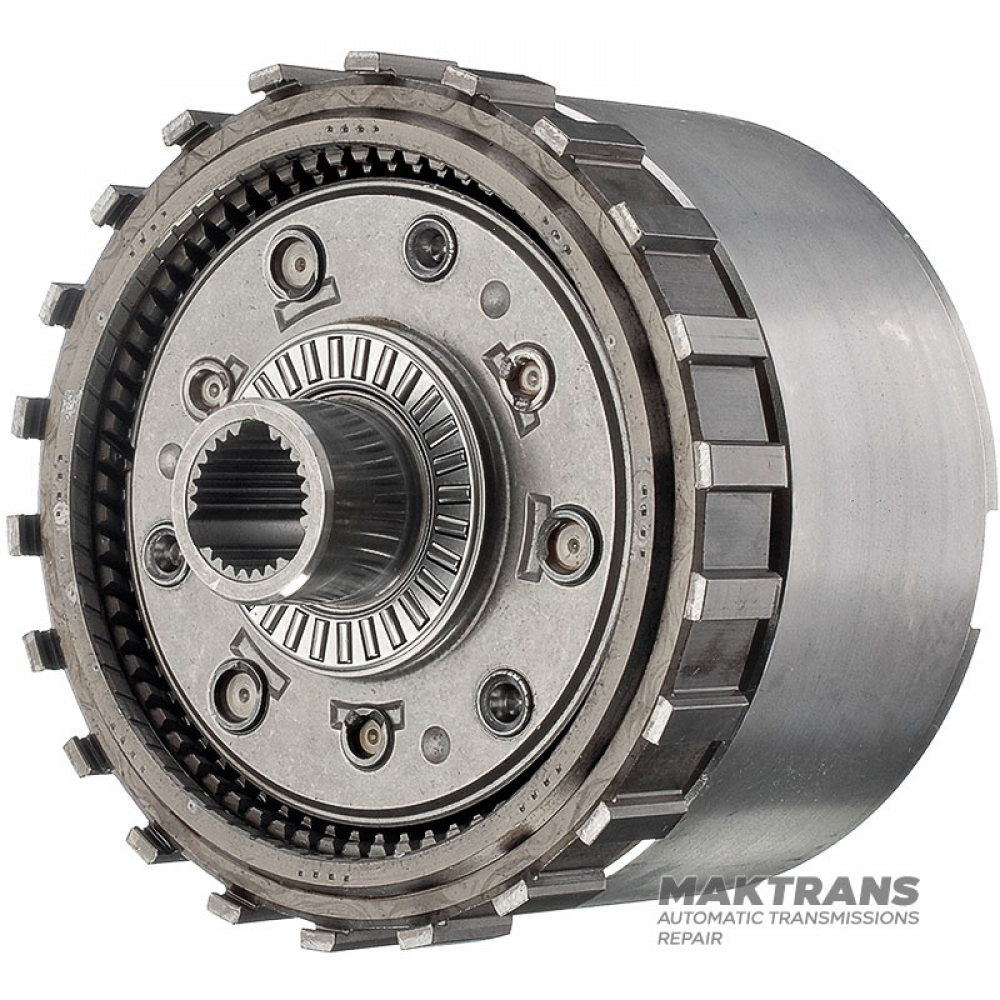

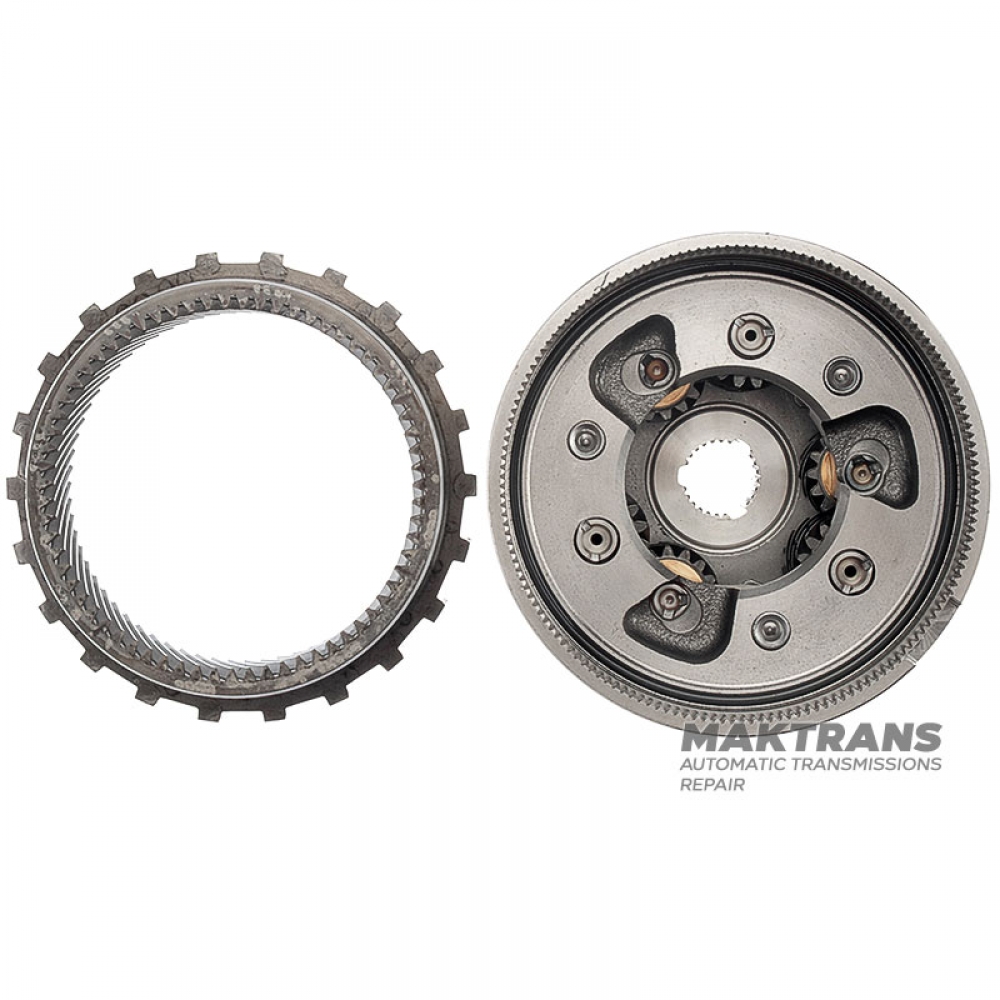

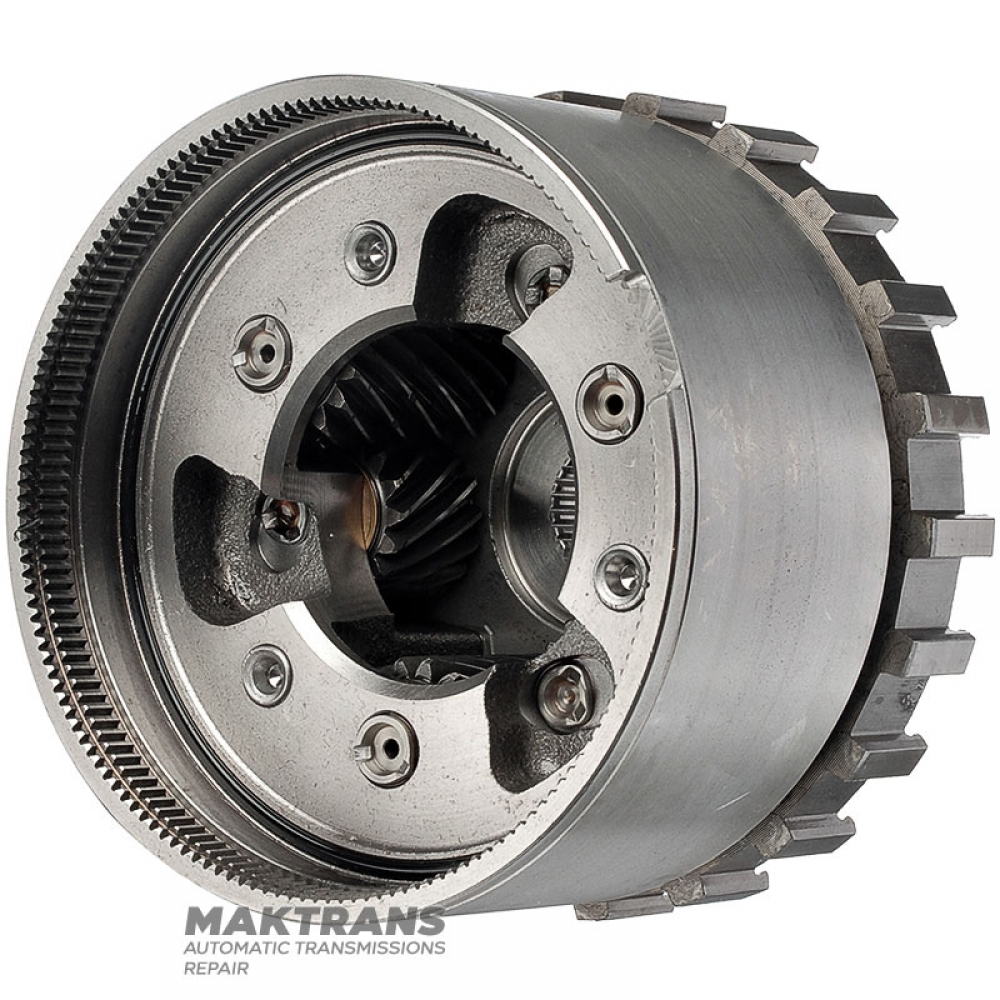

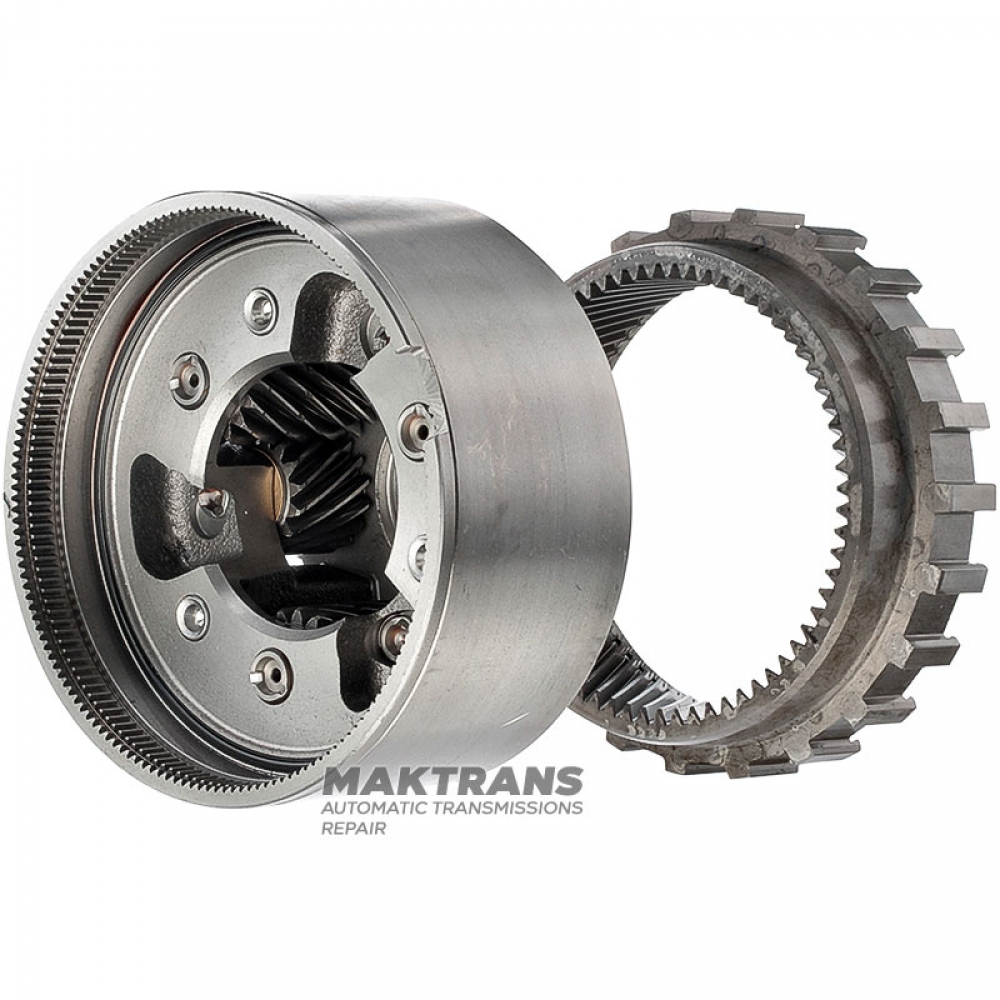

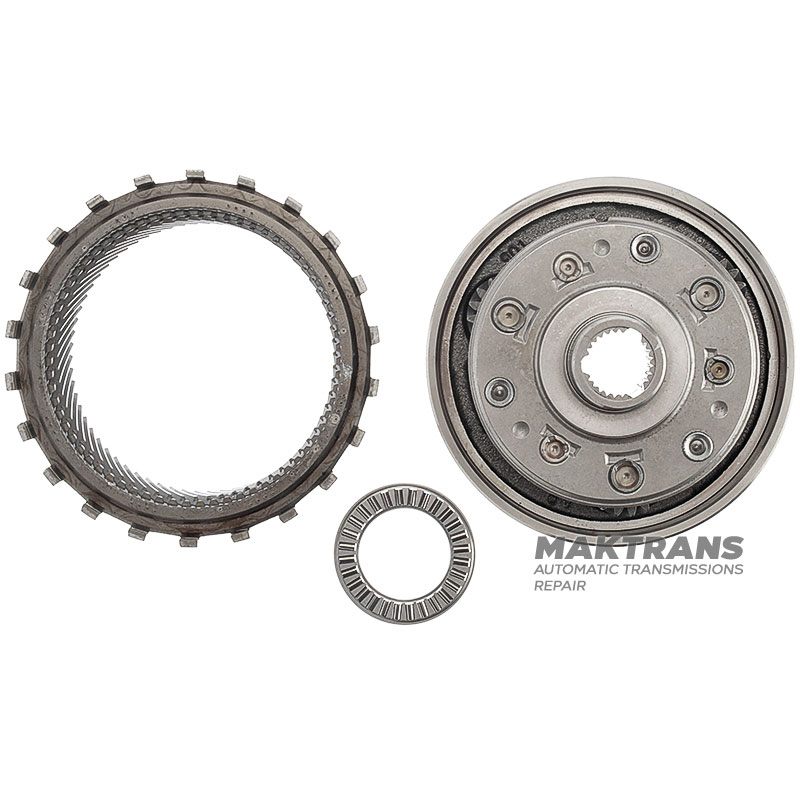

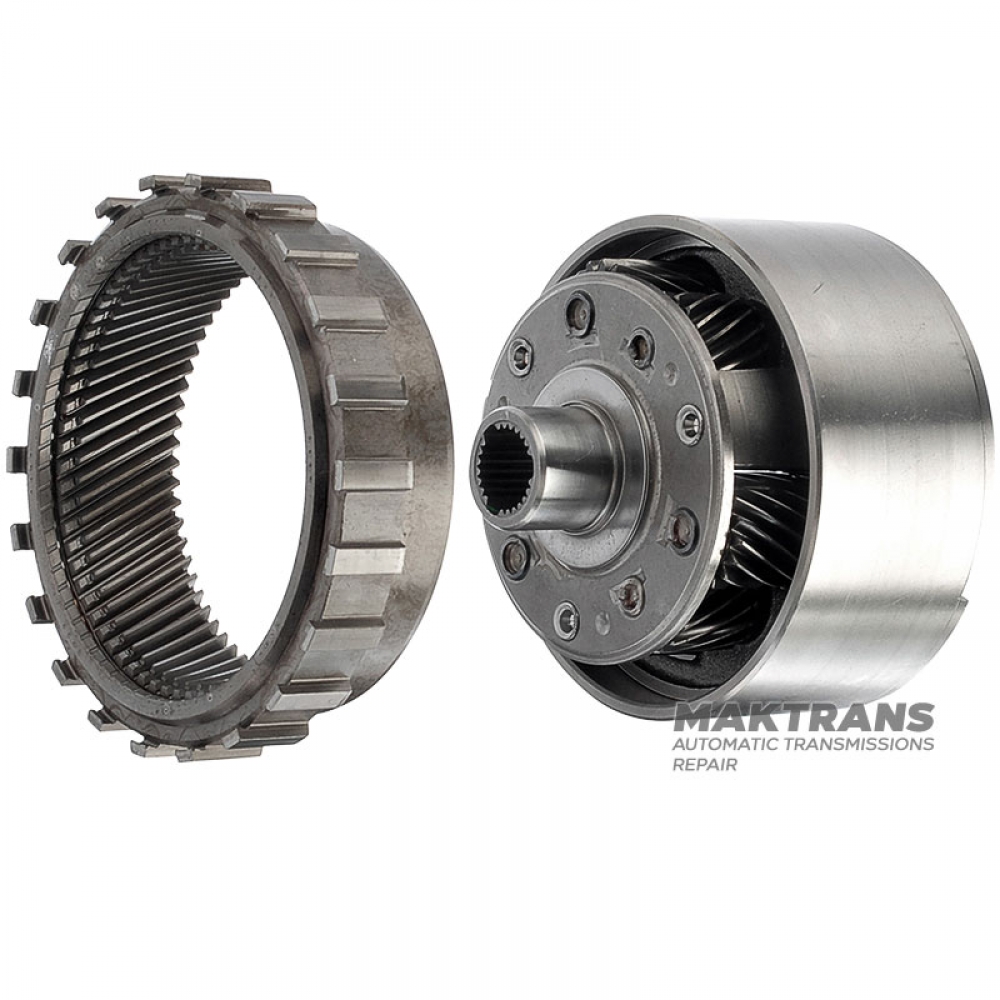

Rear planetary gear SsangYong DSI-6 / DSI M78 0574-659013 0574-162010 - (3x3 pinions, 67 ring gear teeth)

Planetary gear:

• Total height - 110 mm;
• Neck diameter - 31.70 mm;
• The number of splines on the inside of the neck is 20 pcs.;
• The outer diameter of the case is 133 mm;

Satellites:

• 3 ring gear satellites - 16 teeth;
• 3 sun gear satellites - 16 teeth;

Ring gear:

• Total height - 40.75 mm;
• Number of teeth - 67 pcs.;
• Outer diameter - 120.85 mm;
• Number of parking gear teeth - 22 pcs.;
• The outer diameter of the parking gear is 139.35 mm;

Thrust needle bearing:
***installed between the planetary gear and the output shaft flange.

• Outer diameter - 55.05 mm;
• Inner diameter - 35.05 mm;
• Thickness - 3.15 mm;
• No. - 0555-143029 ;
