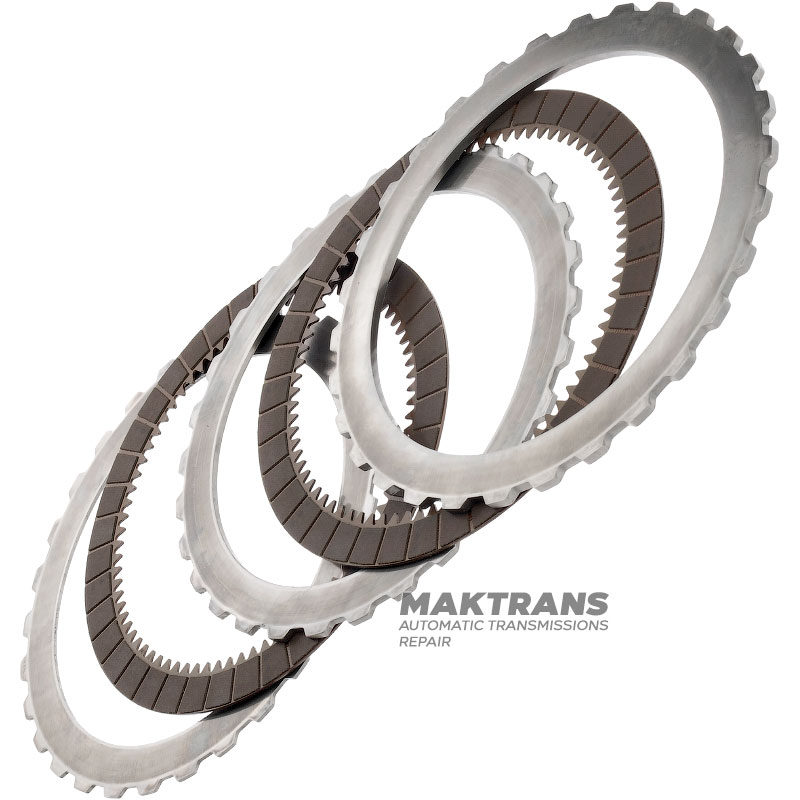

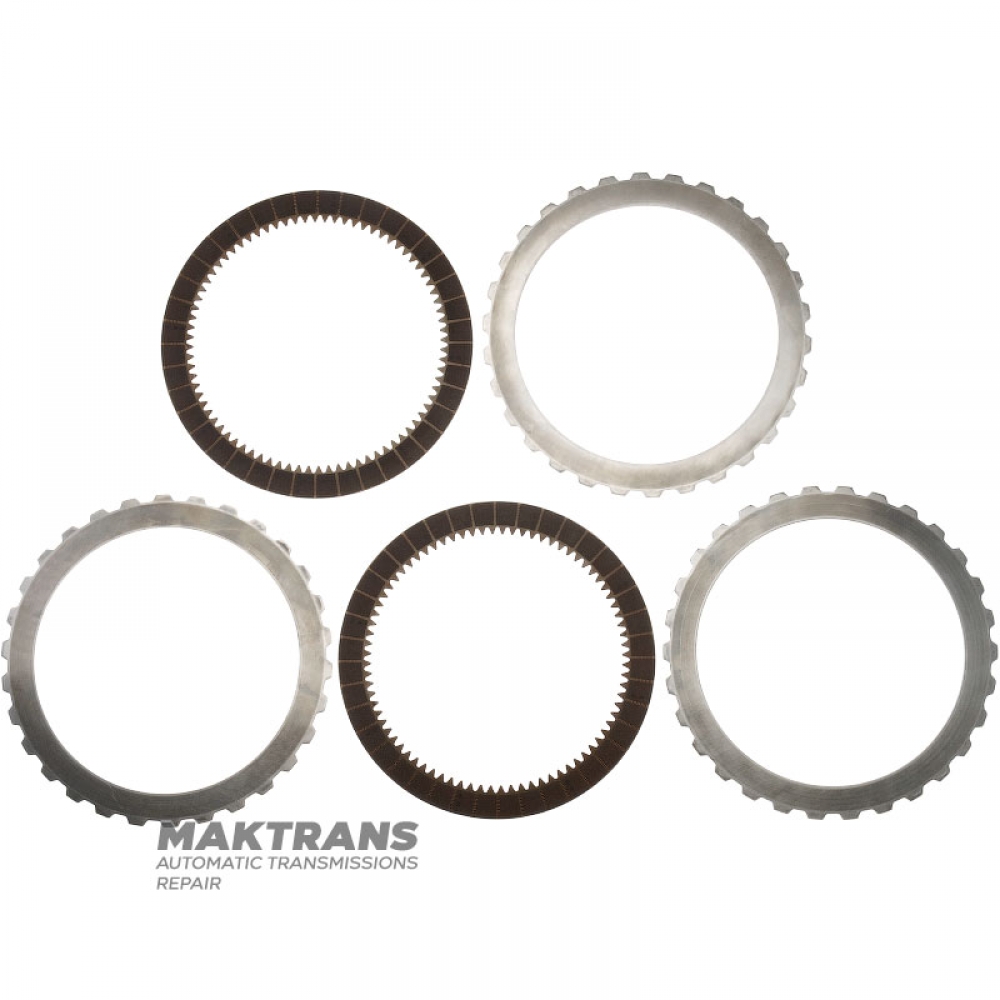

Set of steel and friction discs for ZF 8HP hydraulic transmission - 2 friction discs (total thickness of the set 13.80 mm)

• The total thickness of the set is 13.80 mm;

Support disk:

• Thickness - 4.30 mm;
• Inner diameter - 165.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.45 mm;
• Outer diameter - 196.70 mm;
• Number of teeth - 80 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2.80 mm;
• Inner diameter - 165 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 165 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
