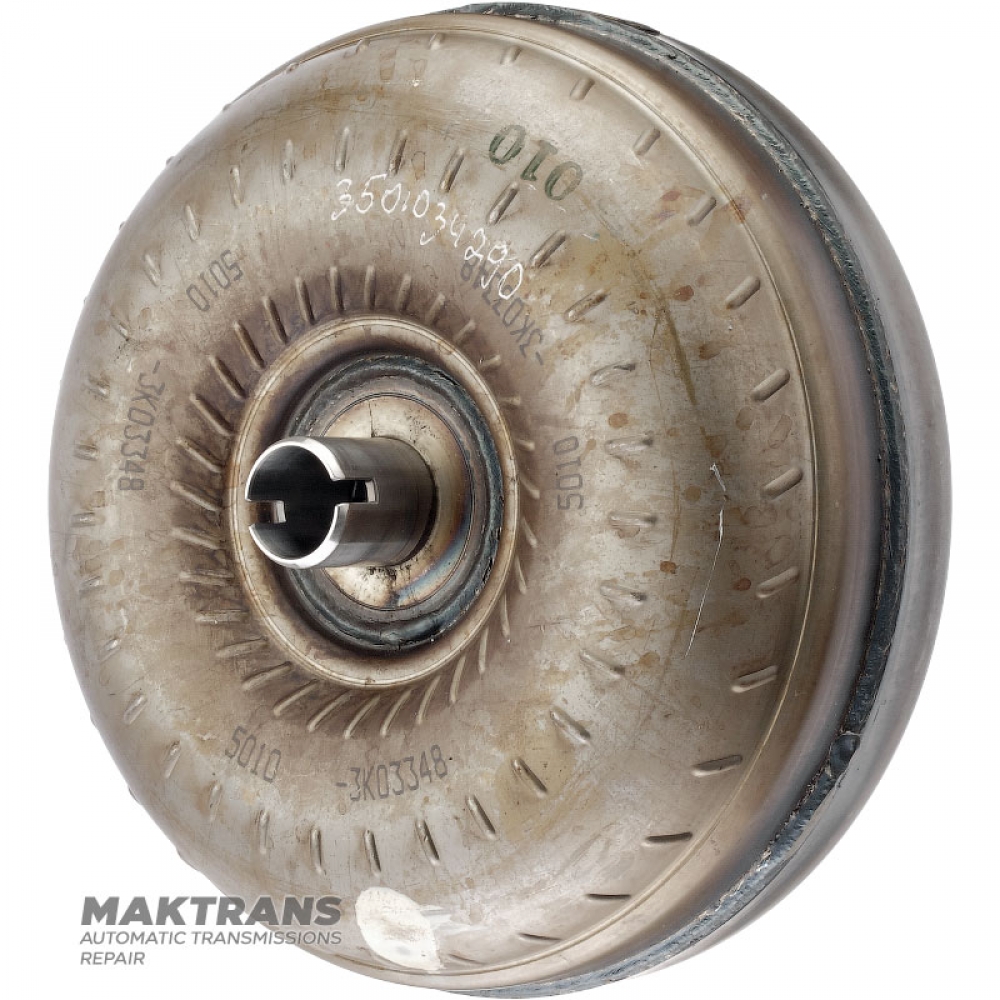

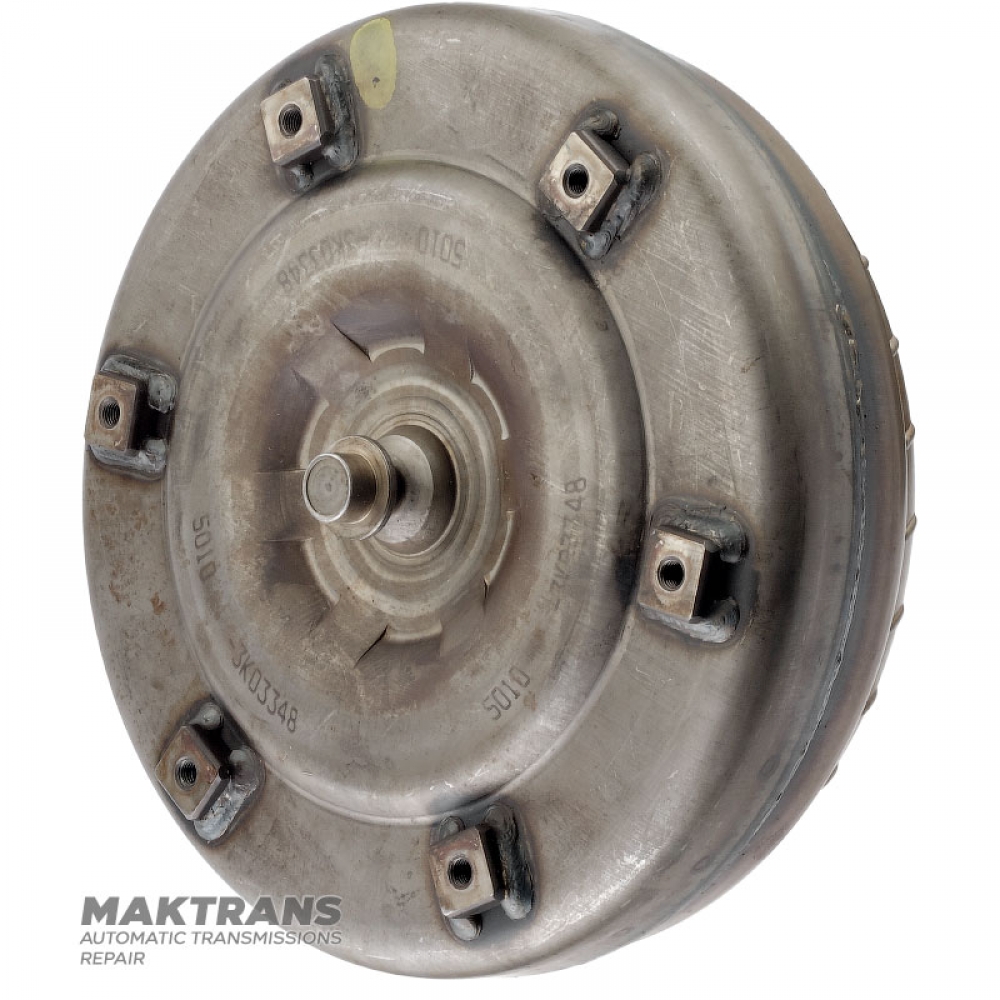

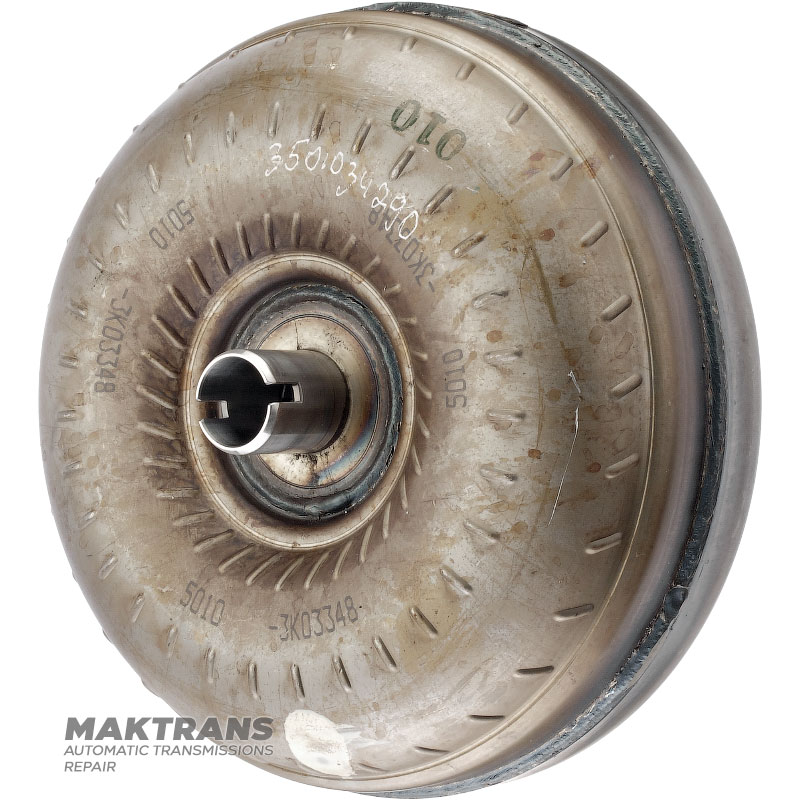

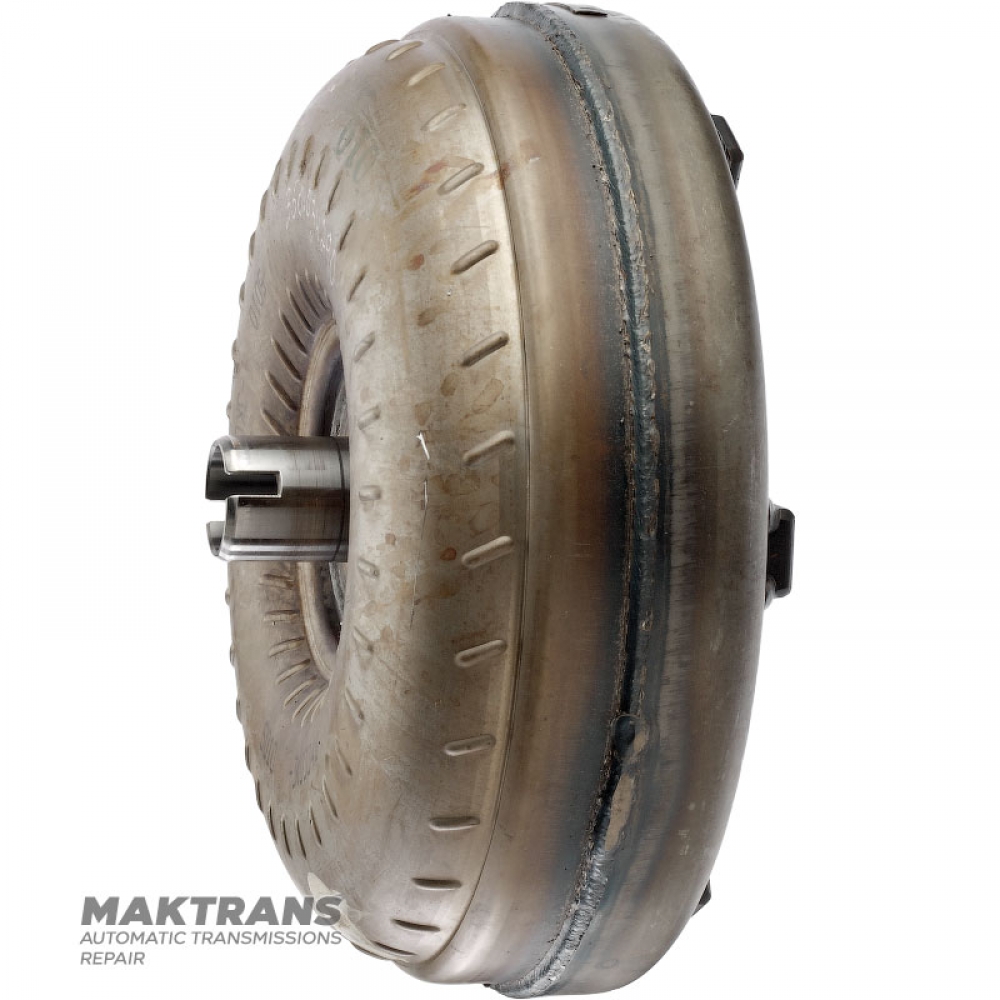

Torque converter (non-restored, removed from used transmission) TOYOTA A340E / A340F (TOYOTA SEQUOIA UCK35L 2UZFE 4.7L) - removed from transmission with marking (35010-34290 / 35000-34270)

• Overall height - 156 mm;
• Outer body diameter - 302 mm;
• Neck height - 45 mm;
• Outer diameter of the neck - 38 mm;
• Number of mounting holes - 6 pcs.;
• The internal diameter of the mounting holes is 7.75 mm;
• Pilot height - 37 mm (nose height 11 mm);
• Pilot outer diameter - 32 mm (outer Ø of nose 21 mm);
• The radius from the center of the pilot to the center of the mounting holes is 120 mm;
• The distance between the centers of the mounting holes is 120 mm;

• Marking on the housing sticker - 35010-34290;
• Marking on the transmission nameplate - 35000-34270;

For TOYOTA vehicles:

• SEQUOIA UCK35L-GKSSKA;
• SEQUOIA UCK35L-GKSLKA;

with 2UZFE 4700CC 32-VALVE DOHC EFI engine;

Catalog number of the torque converter:

• 3200034010;
• 3200060120;
