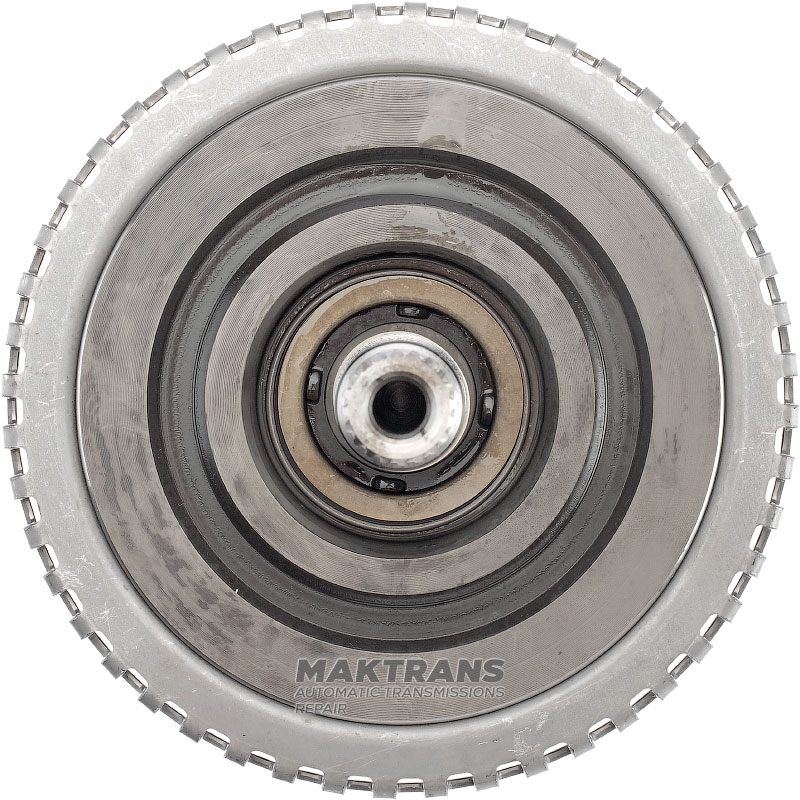

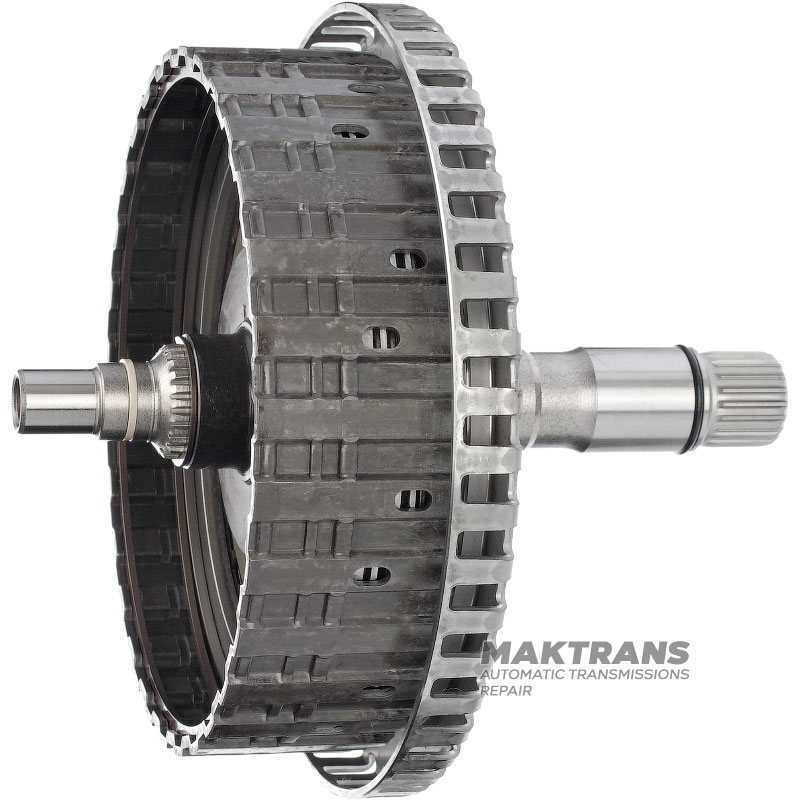

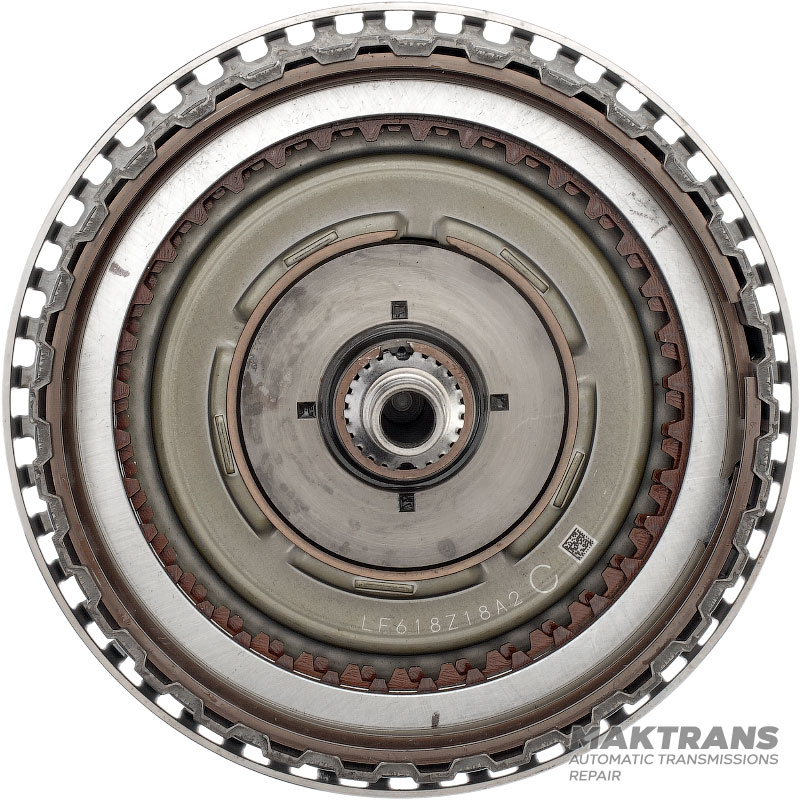

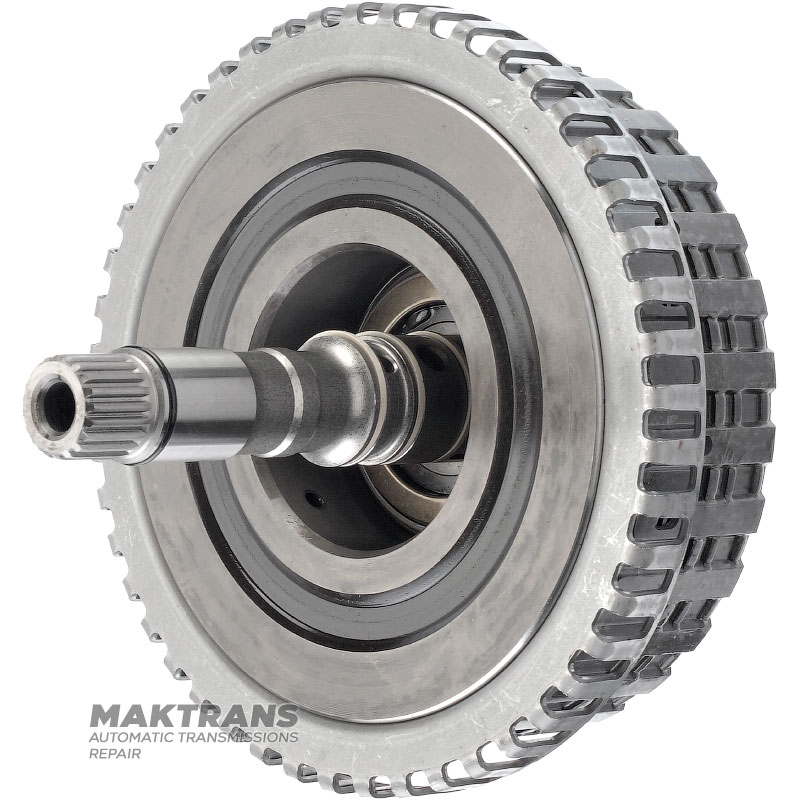

Input shaft / drum FORWARD Clutch JATCO CVT JF016E, JF017E - removed from new transmissions

Input shaft:

• Total height - 170.30 mm;
• Outer diameter of Teflon rings - 27.80 mm;

Outer diameters of the working parts of the shaft:

• 23.55 mm;
• 14 mm;

Number of splines on the shaft:

• 20 splines (external Ø 21.55 mm);
• 22 slots (outer Ø 24.40 mm);

Drum FORWARD Clutch:

• Total height - 50 mm;
• The outer diameter of the speed sensor rim is 170 mm;
• Outer diameter of the drum - 149.55 mm;
• Inner diameter for the hub - 63.85 mm;
• The number of splines on the internal side 24 pcs.;

FORWARD Clutch friction and steel plate kit:

• The total thickness of the set is 13.05 mm;

Thrust plate:

• Thickness - 4.20 mm;
• Inner diameter - 119.80 mm;
• Number of teeth - 30 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 1.50 mm;
• Outer diameter - 137.90 mm;
• Number of teeth - 36 pcs.;
• Number of plates - 3 pcs.;

Steel plate:

• Thickness - 1.40 mm;
• Inner diameter - 119.45 mm;
• Number of teeth - 30 pcs.;
• Number of plates - 3 pcs.;

Spring plate:

• Thickness - 1.60 mm;
• Inner diameter - 125.90 mm;
• Outer diameter - 139.20 mm.;
• Number of plates- 1 pc.

Tags: 2721A019 2721A021 2721A022 2721A024 2721A023 2721A025 2721A026 2721A027 2721A028 2761A008 2931A007
