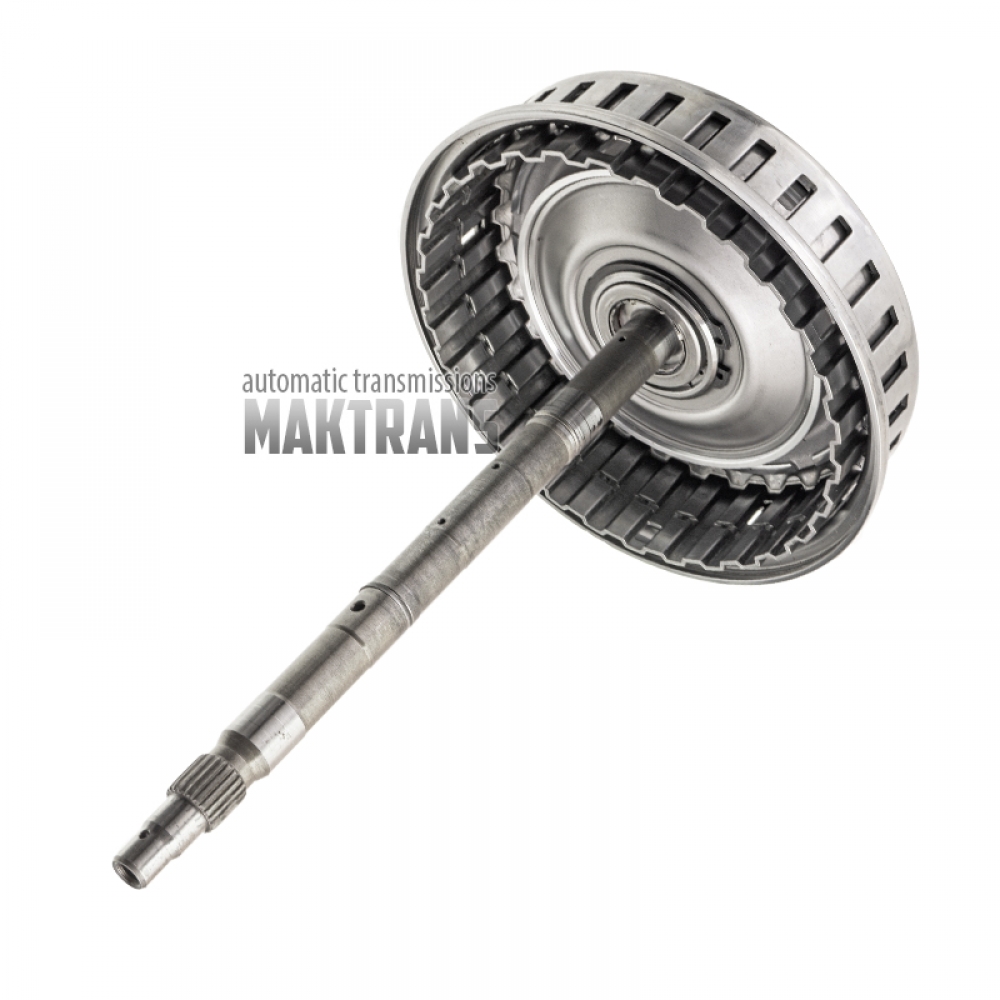

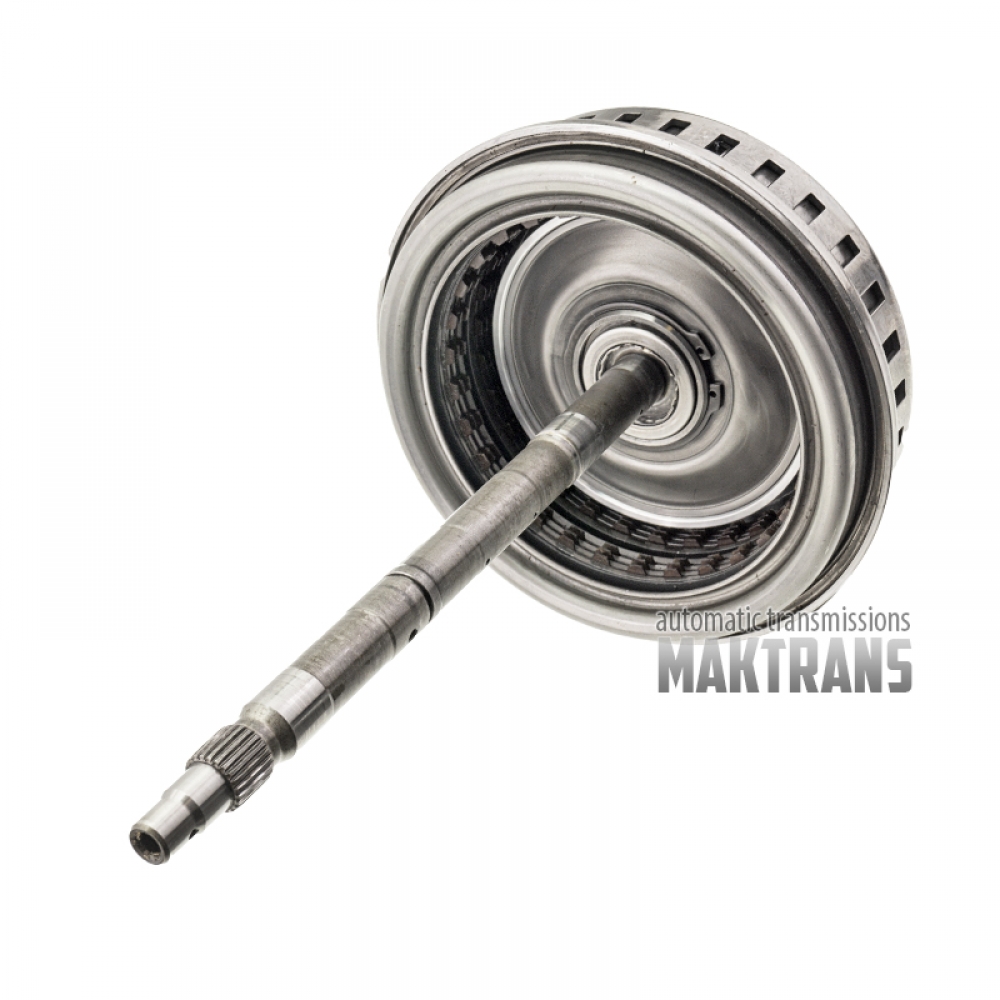

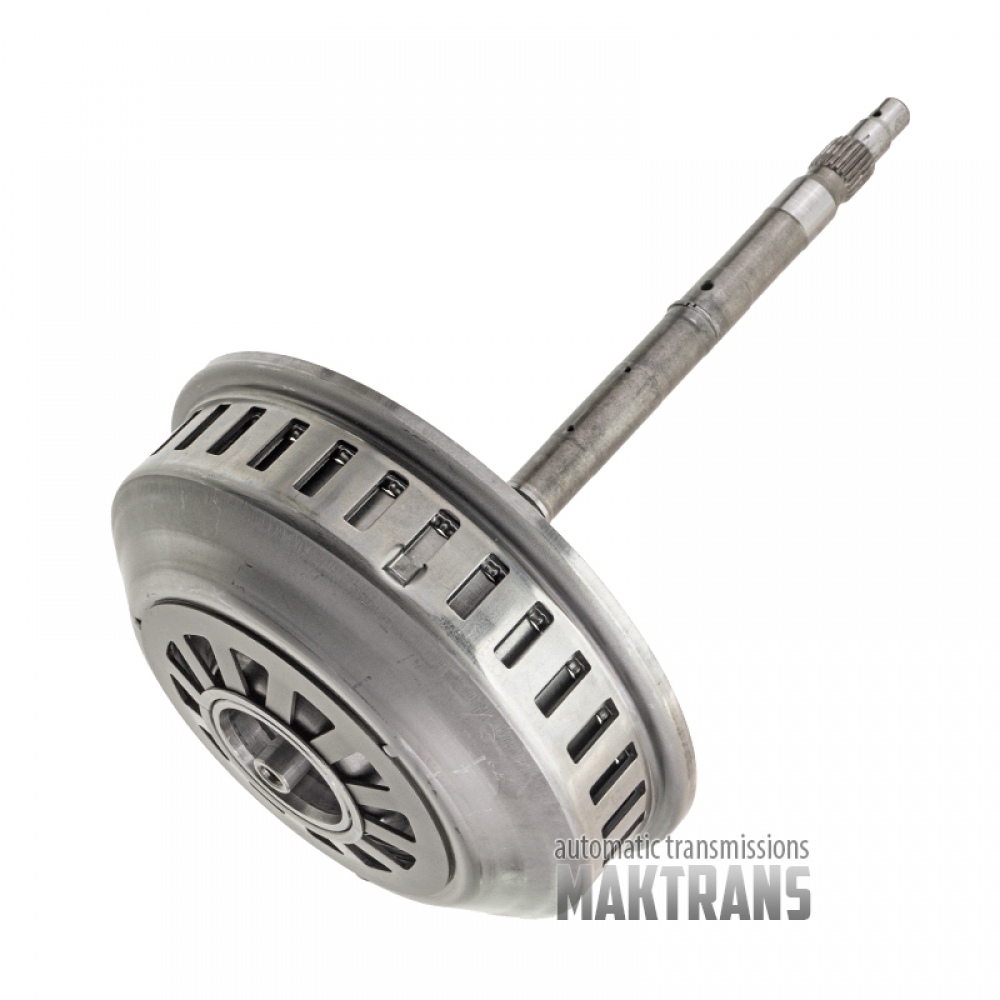

Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]

-10%
Discount
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]
Input shaft and drum with discs B/E Clutch ZF 4HP16 [total height 332 mm]

Worldwide Shipping 🌎

Product Code:
4HP16-BE-DRM
Product model copied to clipboard
Brand
ZF
Availability: 2 Ends soon
Weight (kg): 7.2
Sold:
2
€107.08
€118.98

Shipping Icon Shipping to United States from €126.12

Main Specifications
Condition (used, new): used and inspected
Type: input shaft, B / E Clutch Drum
If you order more than 2 pcs - shipping time will be longer at few days
Stock Place: Availability: Price: Qty:
Slovakia 2 pcs. €107.08
Add to cart
Add to cart
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)
  • Gearbox works better with (3)

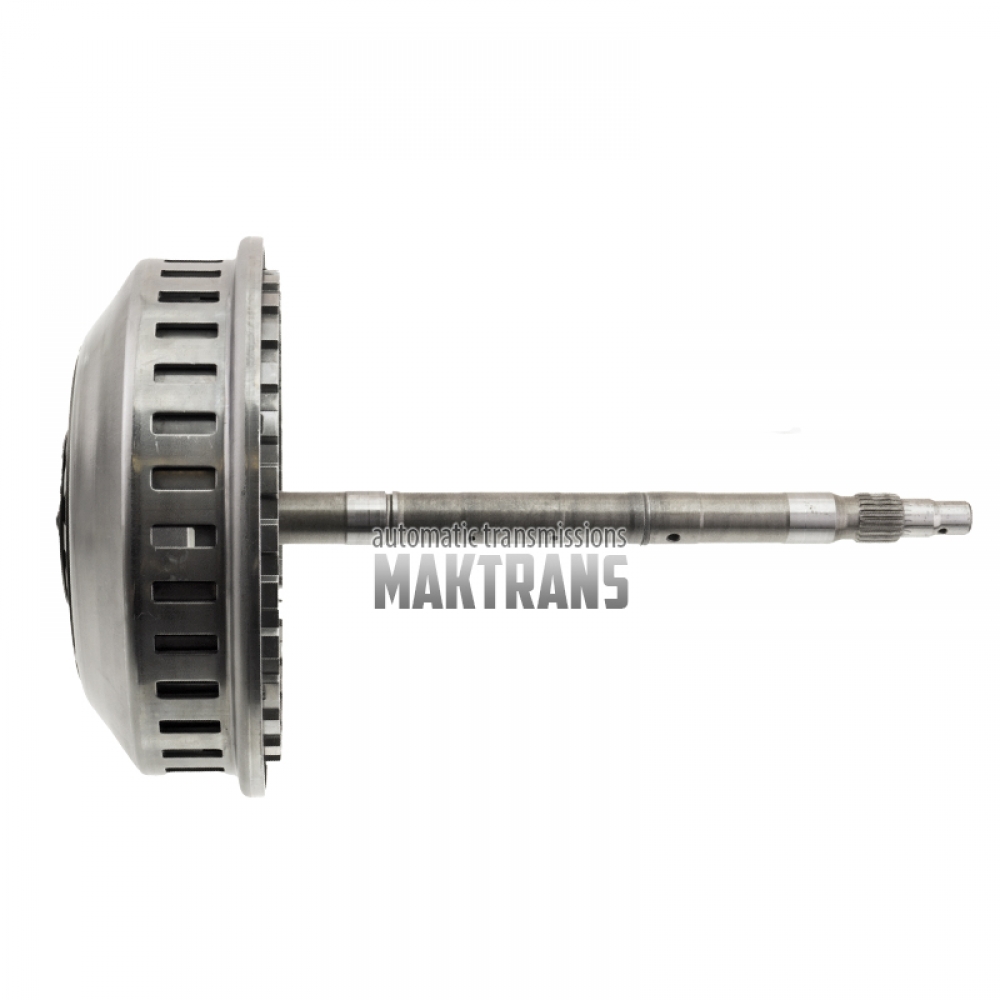

  • Overall height - 332 mm;

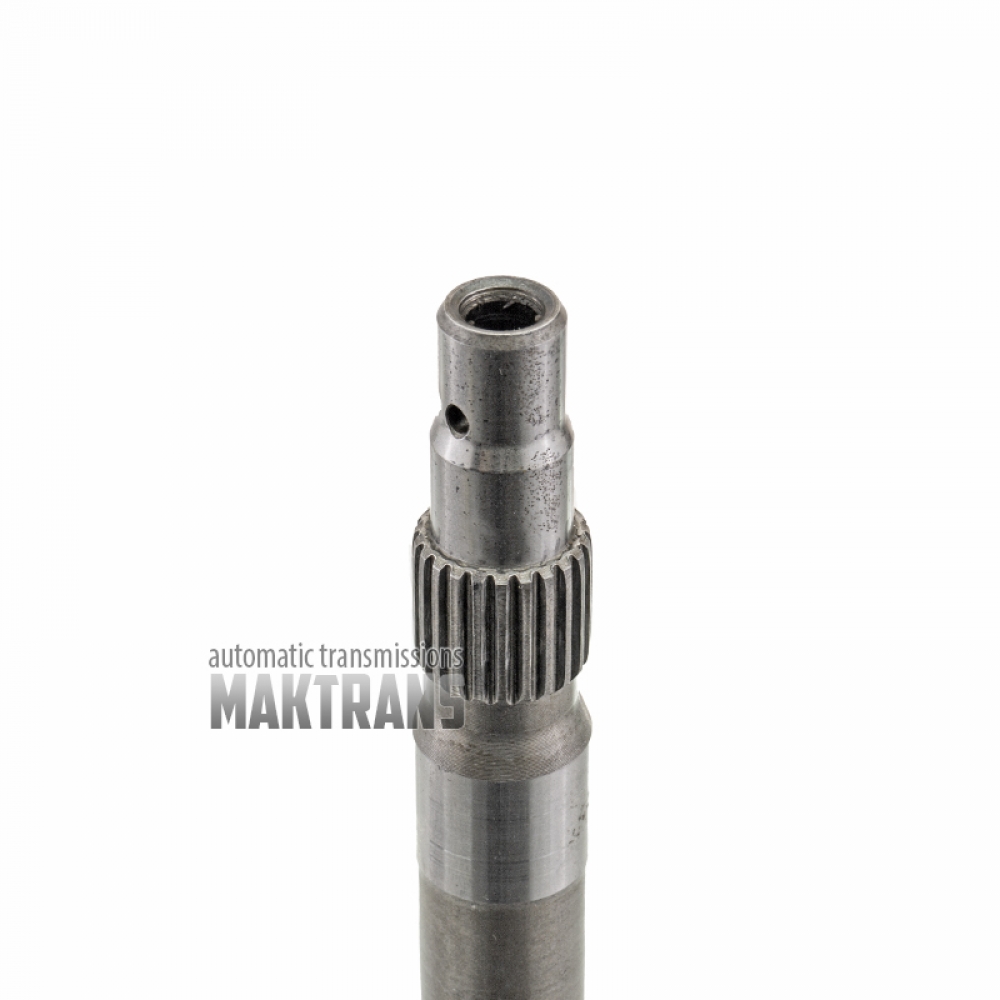

  • The number of splines on the shaft - 23 pcs;
  • Spline diameter - 18.90 mm;
  • Diameters of shaft working parts - 14.75 mm | 19.45 mm | 20mm;

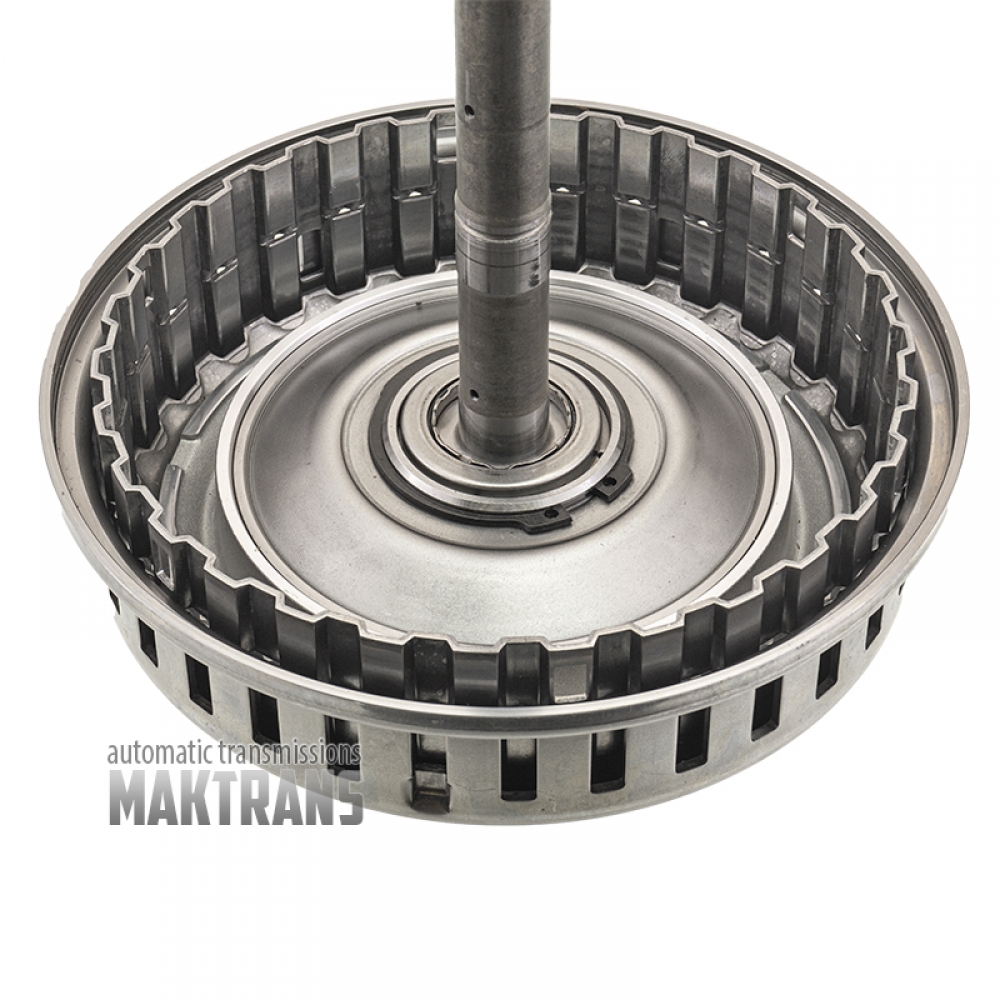

  • Outer drum diameter [overall] - 200.80 mm | 84.70mm;

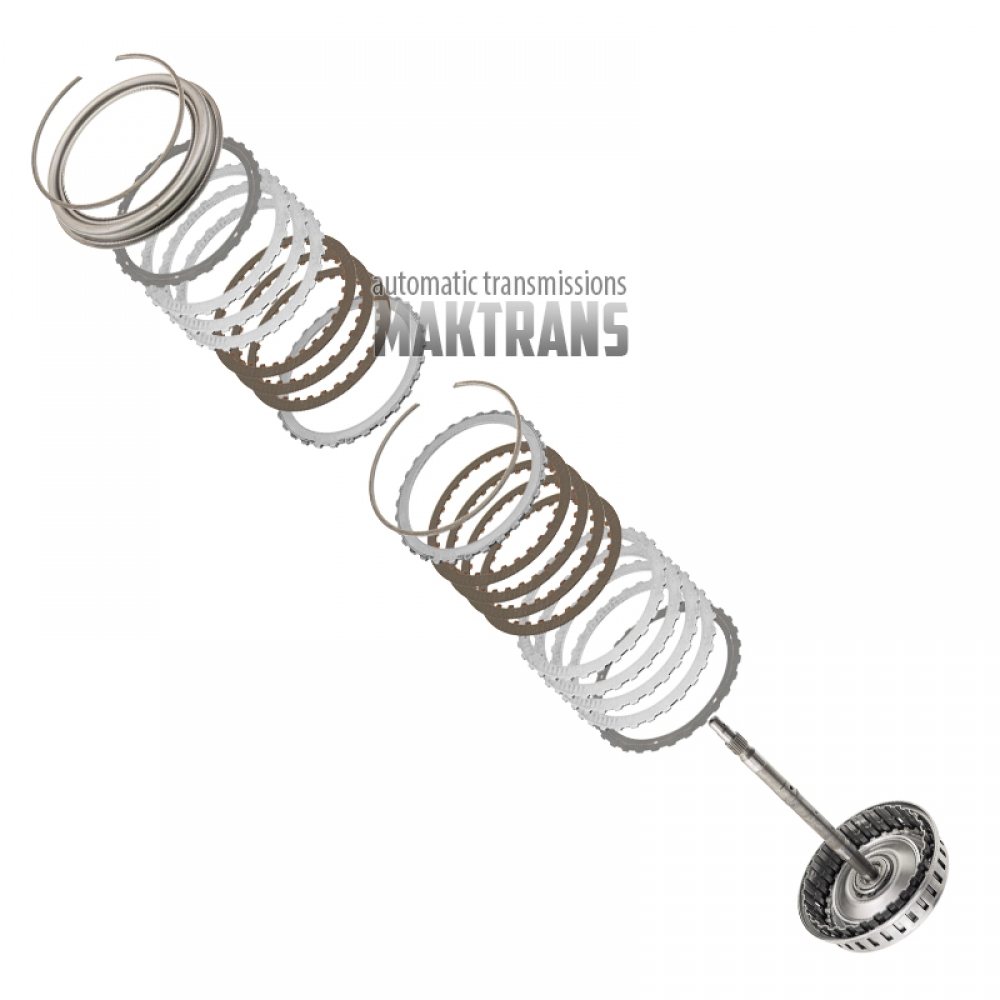

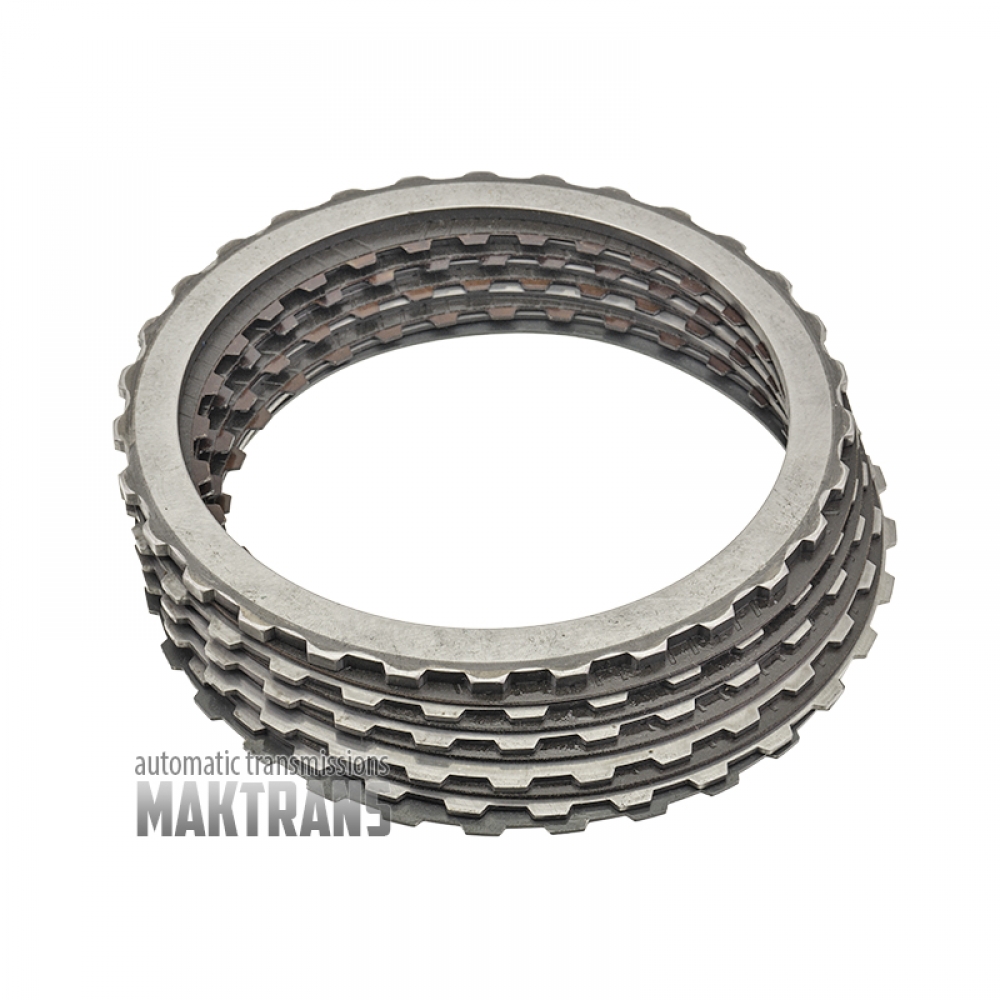

B Clutch steel and friction plate kit:
  • Total thickness - 18.30 mm;

Thrust plate:

  • Thickness - 3.85 mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 1 piece;

Friction plate:

  • Thickness - 1.60 mm;
  • Outer diameter - 166 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 4 pcs;

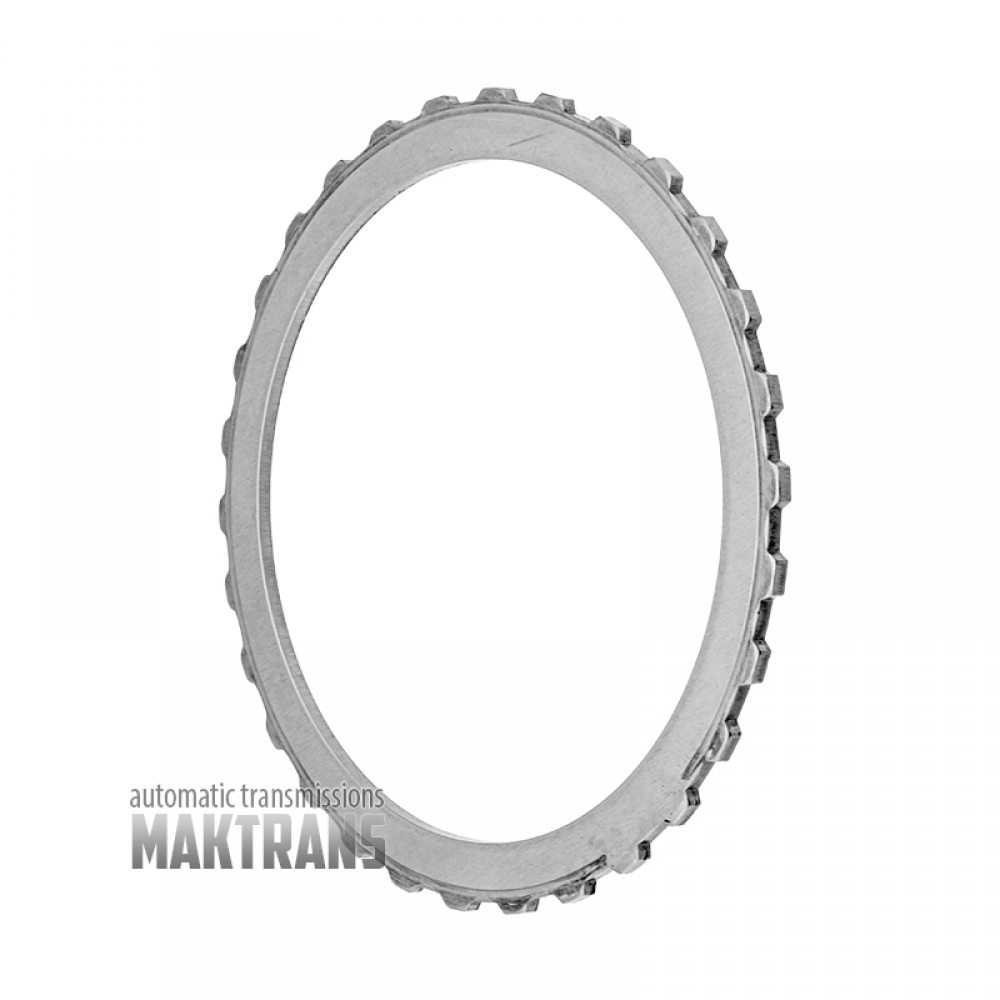

Steel plate (TH 2.05 mm):

  • Thickness - 2.05mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 3 pcs;

Steel plate (TH 2.05 mm):

  • Thickness - 1.75 mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 1 piece;

Spring plate:

  • Thickness - 1.30 mm;

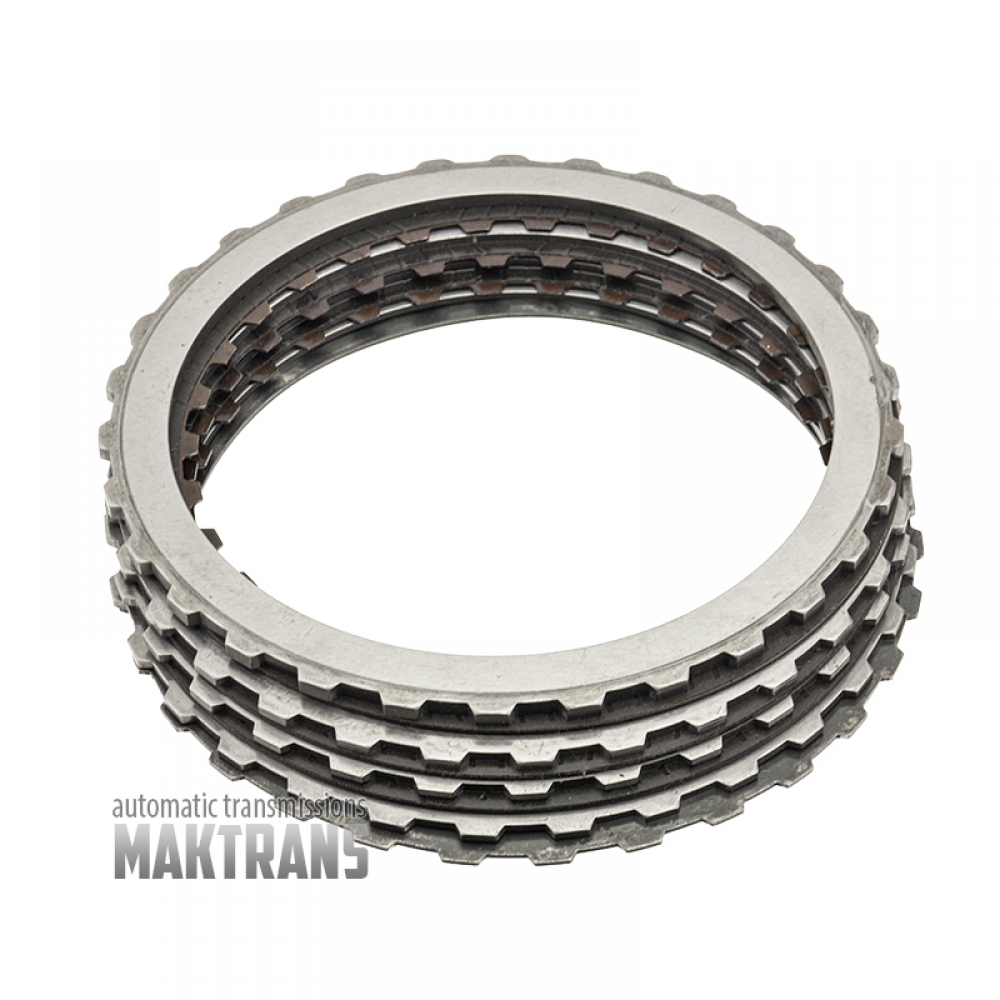

E Clutch steel and fiction plate kit:
  • Total thickness - 15.75 mm;

Thrust plate:

  • Thickness - 3.85 mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 1 piece;

Friction plate:

  • Thickness - 1.60 mm;
  • Outer diameter - 166 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 3 pcs;

Steel plate (TH 2.45 mm):

  • Thickness - 2.45 mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 2 pcs;

Steel plate (TH 2.05 mm):

  • Thickness - 2.05mm;
  • Inner diameter - 142.90 mm;
  • Number of teeth - 30 pcs;
  • The number of plates in the set - 1 pc;

Spring plate:

  • Thickness - 1.30 mm;
