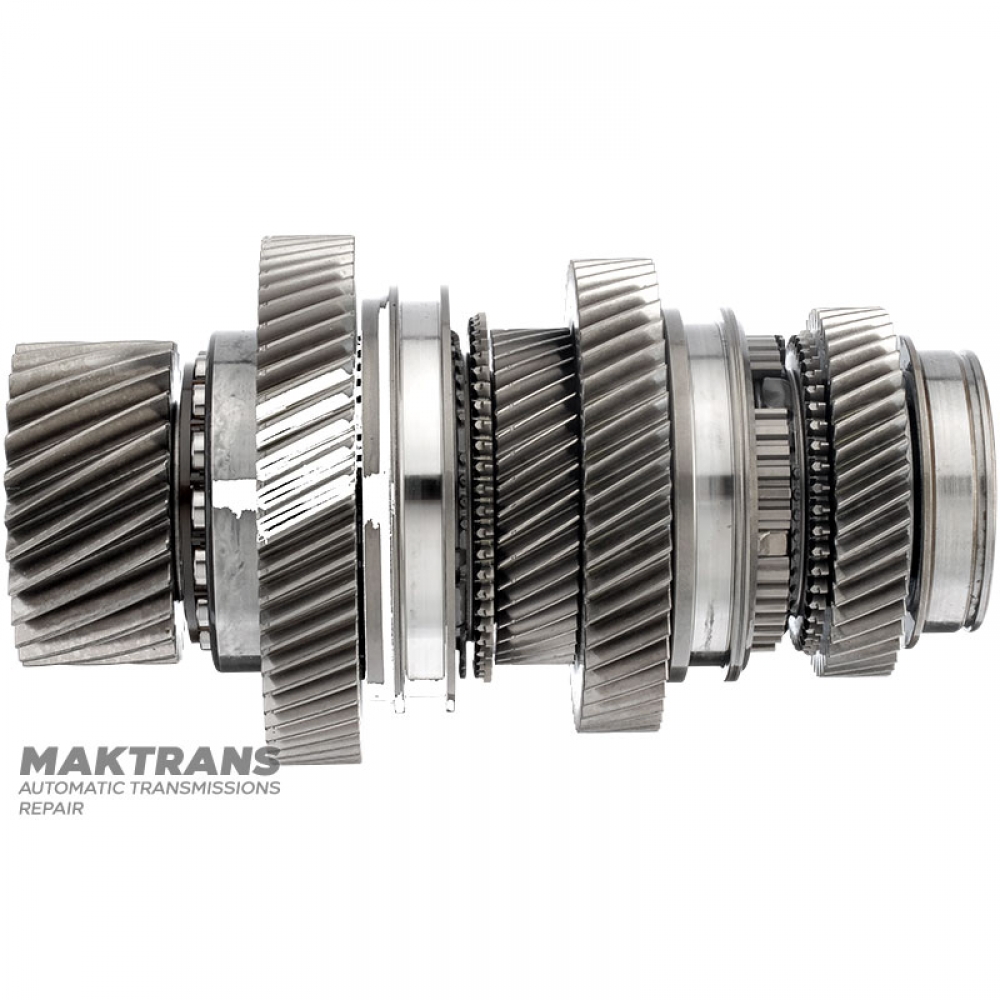

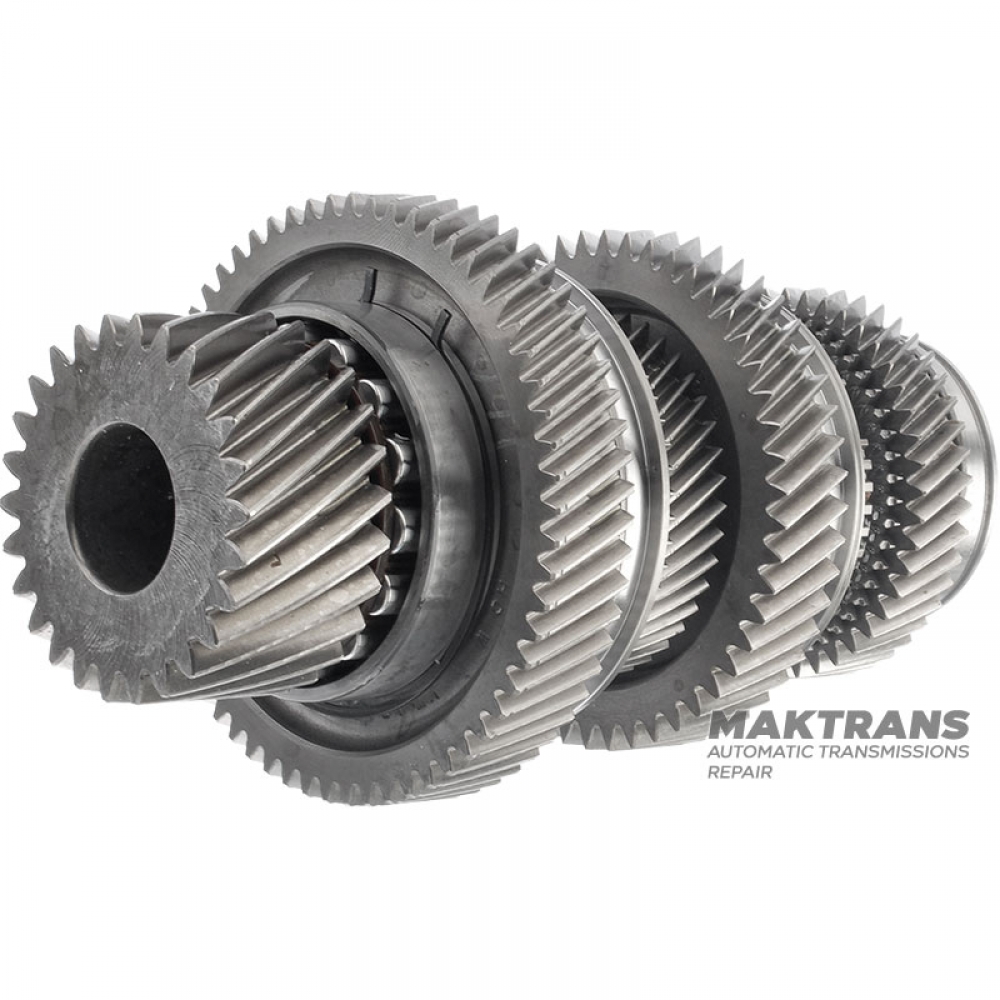

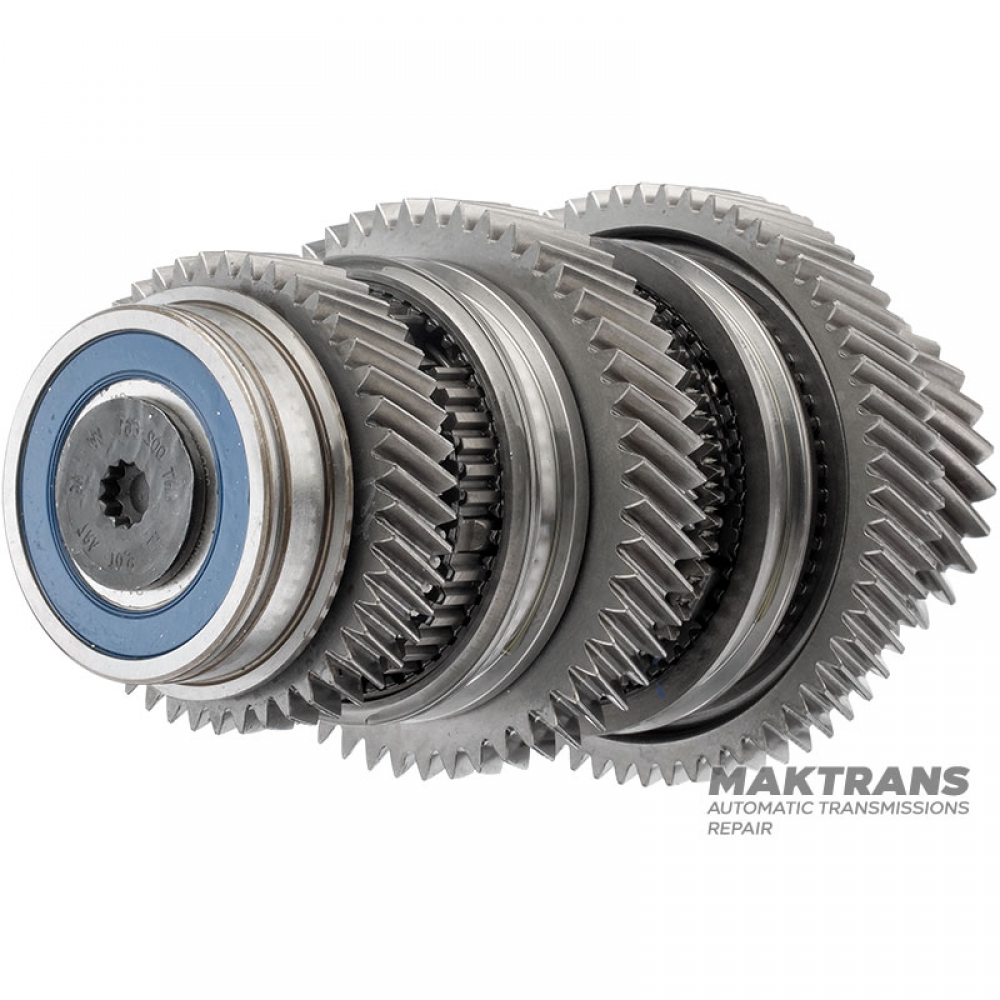

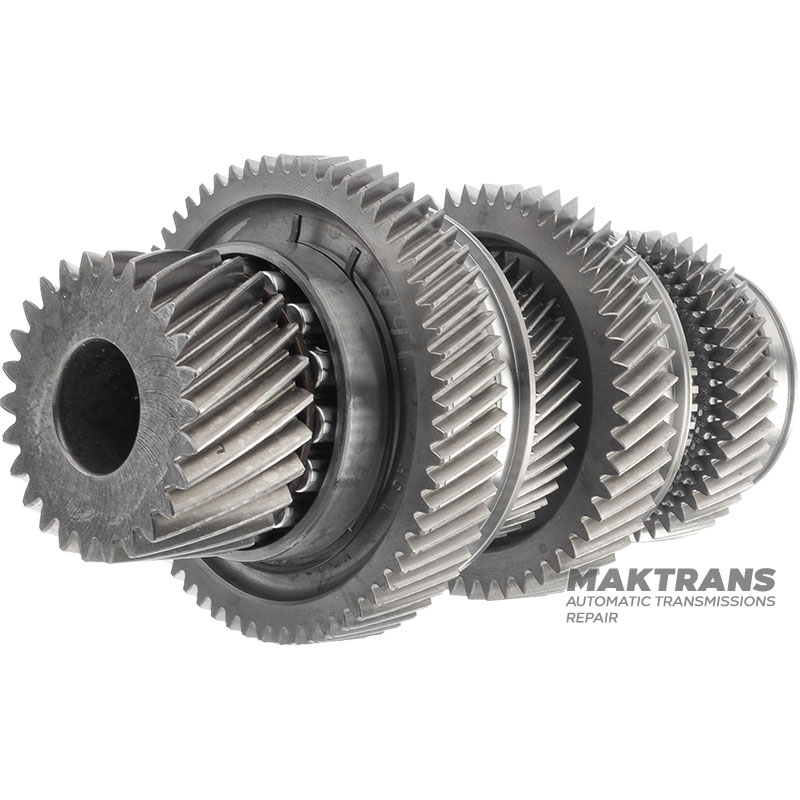

Differential drive shaft No. 2 VAG eHybrid DQ400 0DD - 26 (Ø 85.75 mm) / 61 (Ø 133.20 mm) / 42 (Ø 84.85 mm) / 50 (Ø 119.50 mm) / 45 (Ø 93.60 mm)

• Total shaft length (assembled) - 243 mm;

Gears on the shaft (from the differential drive gear):

• 26 teeth (without notches) - outer Ø 85.75 mm;
• 61 teeth (1 notch) - outer Ø 133.20 mm;
• 42 teeth (1 notch) - outer Ø 84.85 mm;
• 50 teeth (1 notch) - outer Ø 119.50 mm;
• 45 teeth (1 notch) - outer Ø 93.60 mm;
