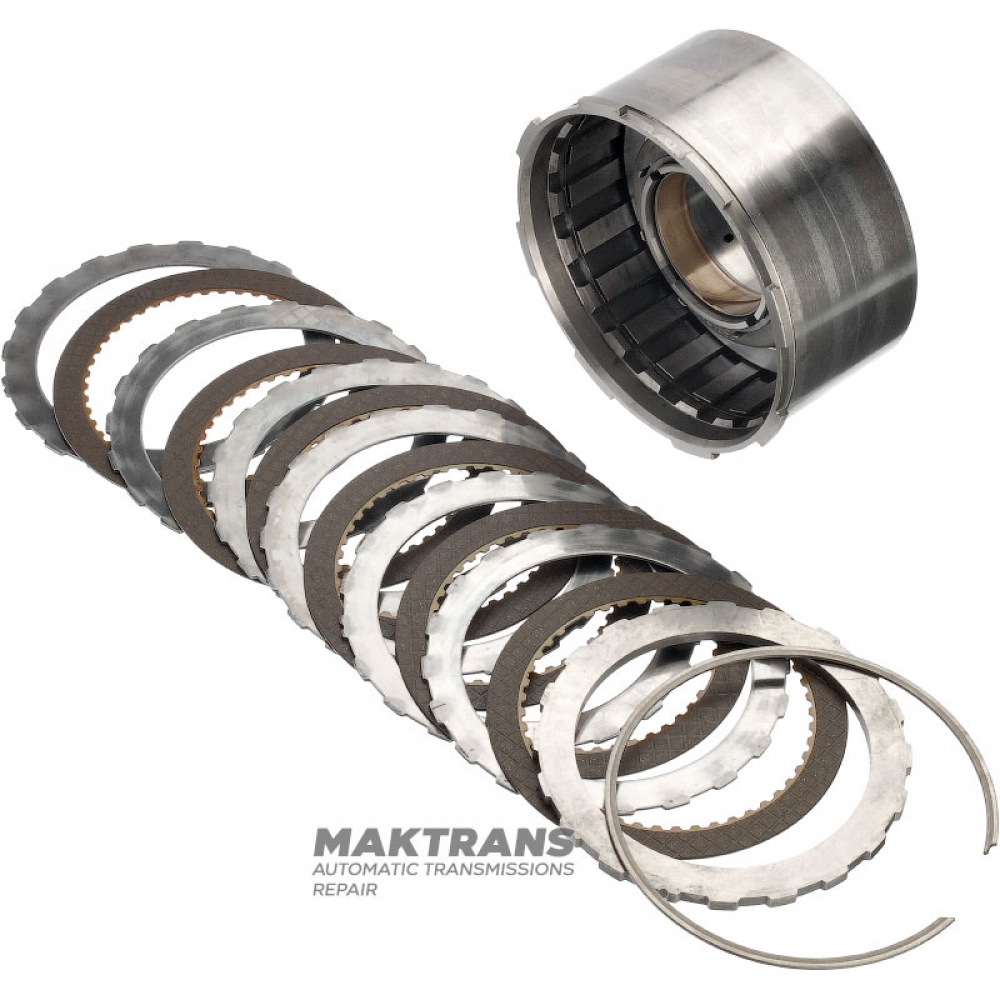

Direct Clutch Drum A4LD, 4R44E, 4R55E, 5R55E, 5R55N, 5R55S, 5R55W, 91DT-7D047-EB, 91DT-7D047-EC — 6 friction discs (total thickness of the kit 25.30 mm), with a sleeve under the hub

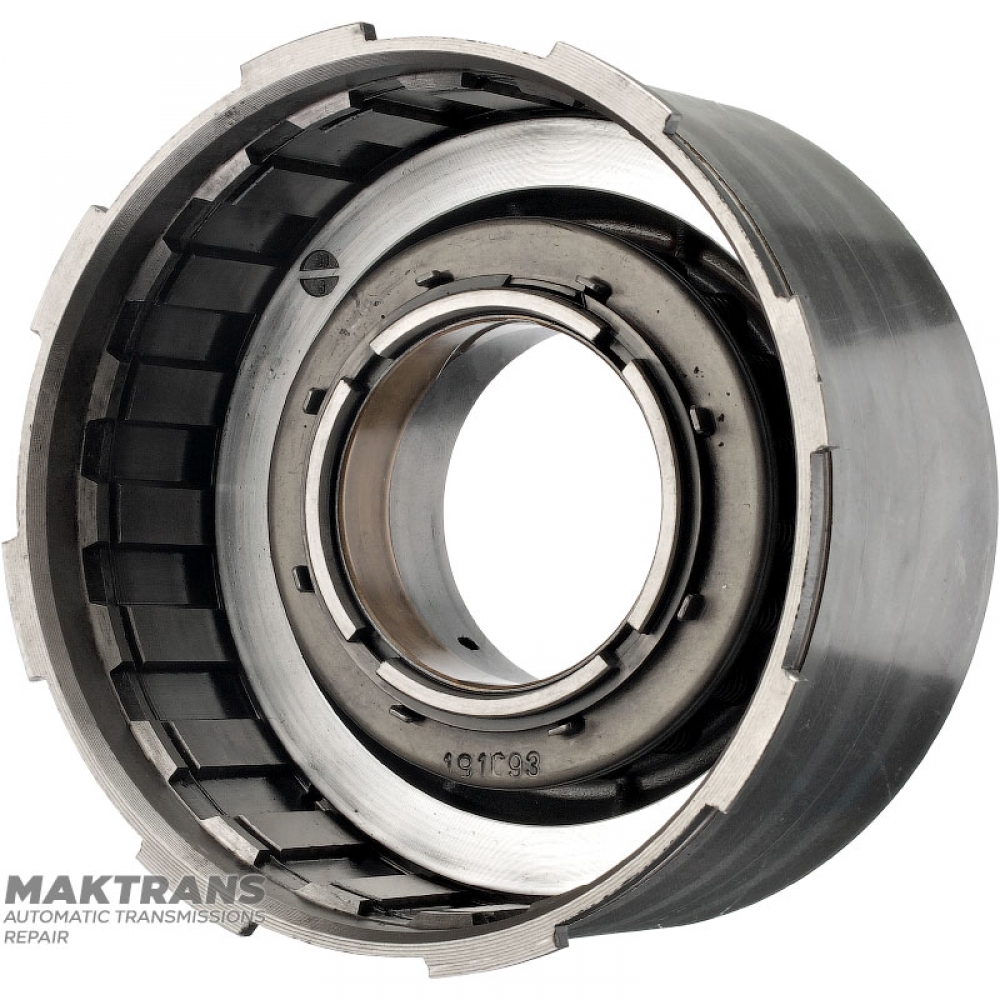

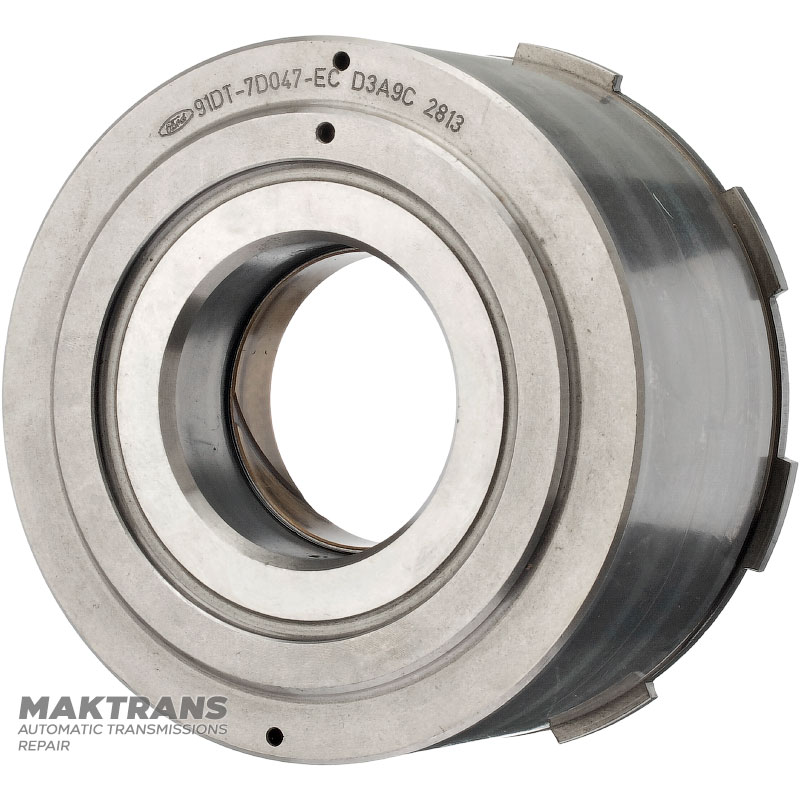

Durect Clutch Drum:

• Overall height - 74 mm;
• Outer diameter - 137 mm;
• Number of teeth on the crown - 8 pcs.;
• The width of the crown tooth is 4 mm;
• Inner diameter under the hub - 59.70 mm;
• Inner diameter of the sleeve - 56.65 mm;
• Height from piston to retaining ring - 26 mm;

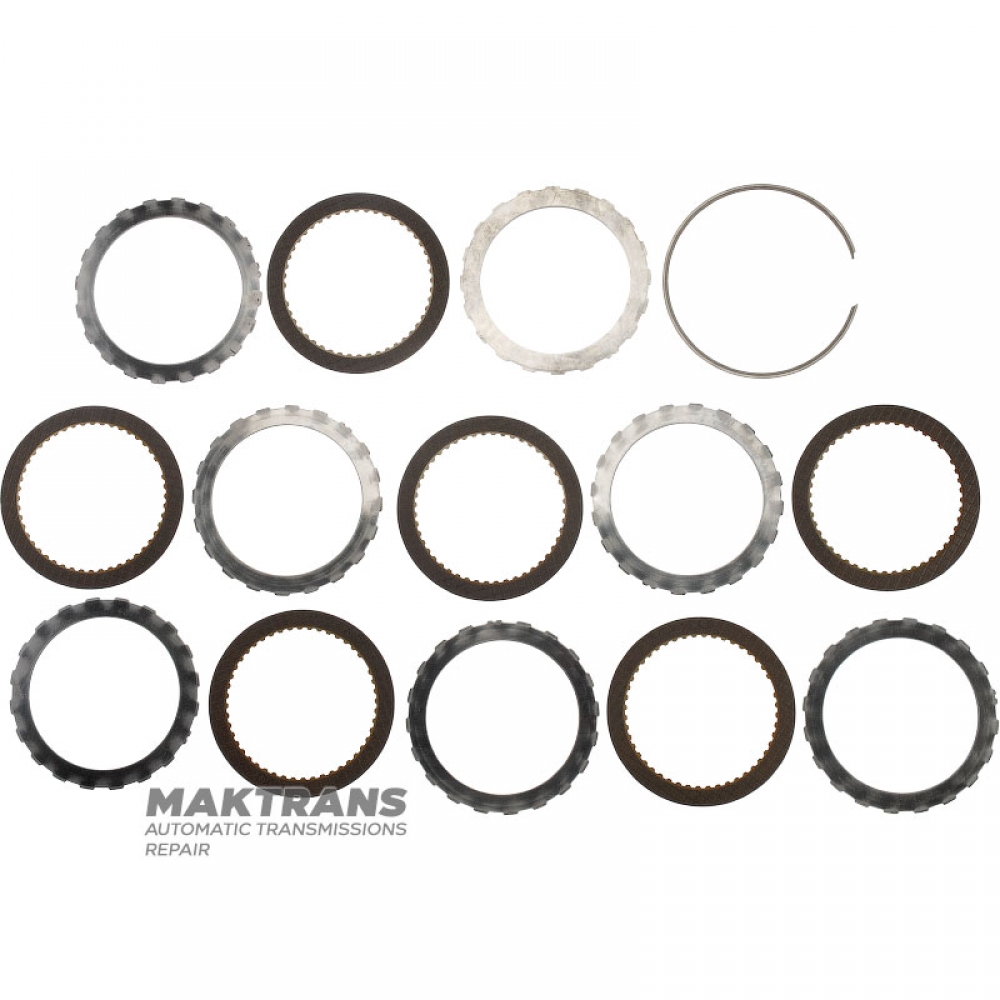

Direct Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 25.30 mm;

Support disk:

• Thickness - 5.04 mm;
• Inner diameter - 100.60 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.72 mm;
• Outer diameter - 124.30 mm;
• Number of teeth - 47 pcs.;
• Number of teeth in the set - 6 pcs.;

Steel disk:

• Thickness - 1.65 mm;
• Inner diameter - 100.75 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 6 pcs.;
