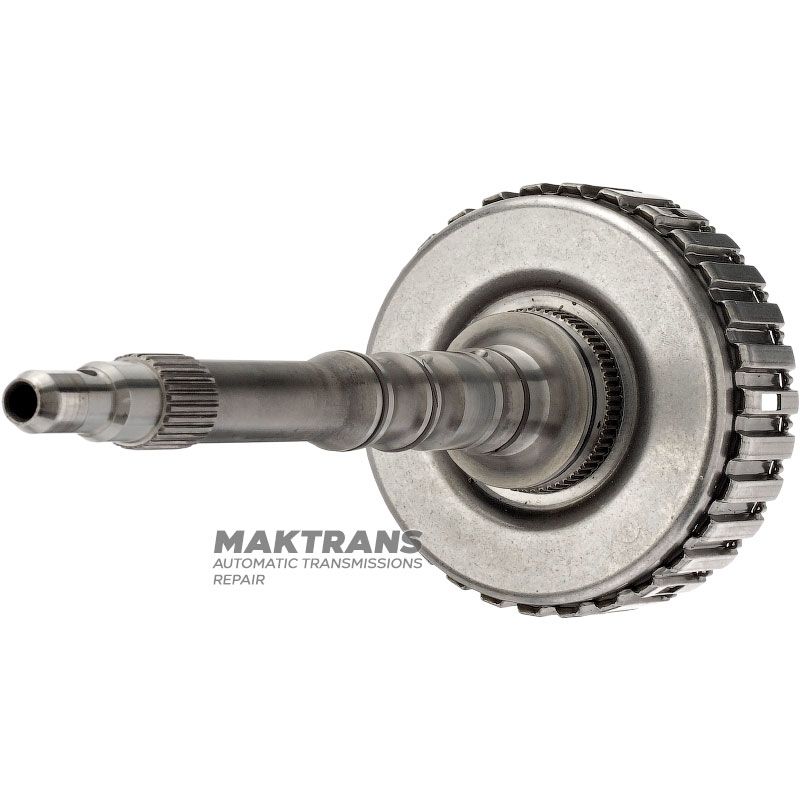

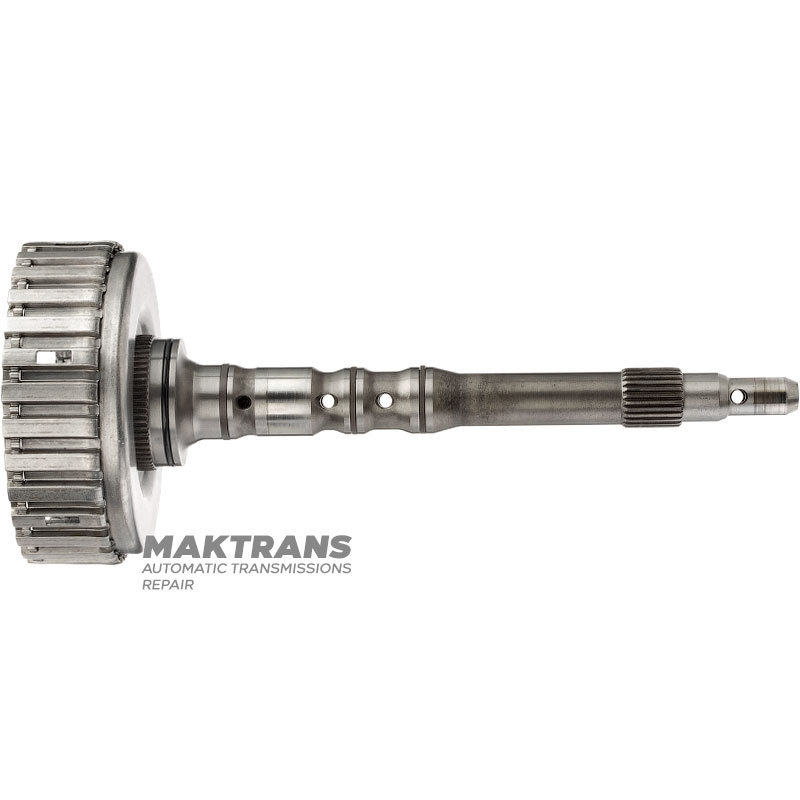

Drum E Clutch ZF 5HP18 - overall height 278mm, 5 friction discs (total thickness of the kit 20.70mm)

• Overall height - 278 mm;
• Number of splines on the shaft - 27 pcs.;
• The outer diameter of the splined part is 21.80 mm;

Outer diameter of working parts of the shaft:

• 13.95 mm;
• 17.95 mm;
• 25.45 mm;

Drum:

• Height - 42.75 mm;
• Outer diameter - 118.20 mm;
• Height (from piston to retaining ring) - 22 pcs.;

Set of steel and friction discs:

• The total thickness of the set is 20.70 mm;

Support disk:

• Thickness - 3.55 mm;
• Inner diameter - 78.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 107.90 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 78.10 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 5 pcs.;
