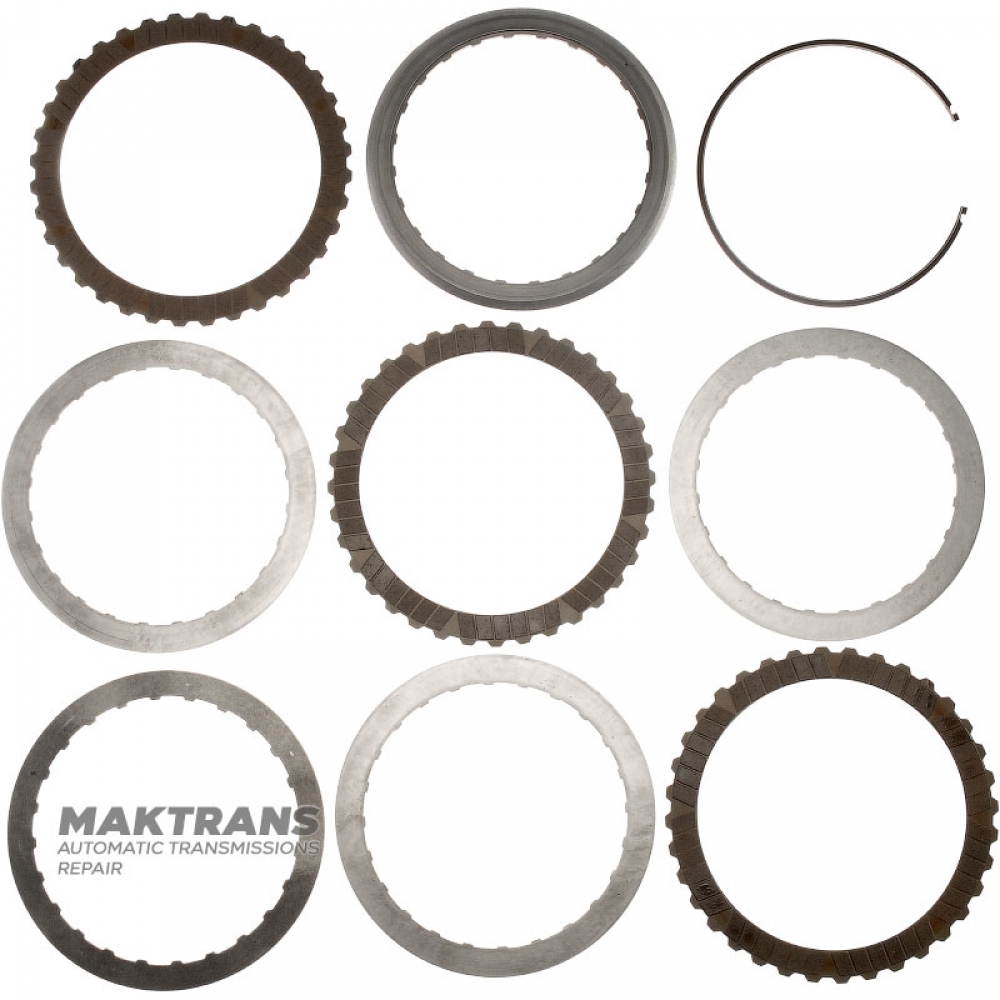

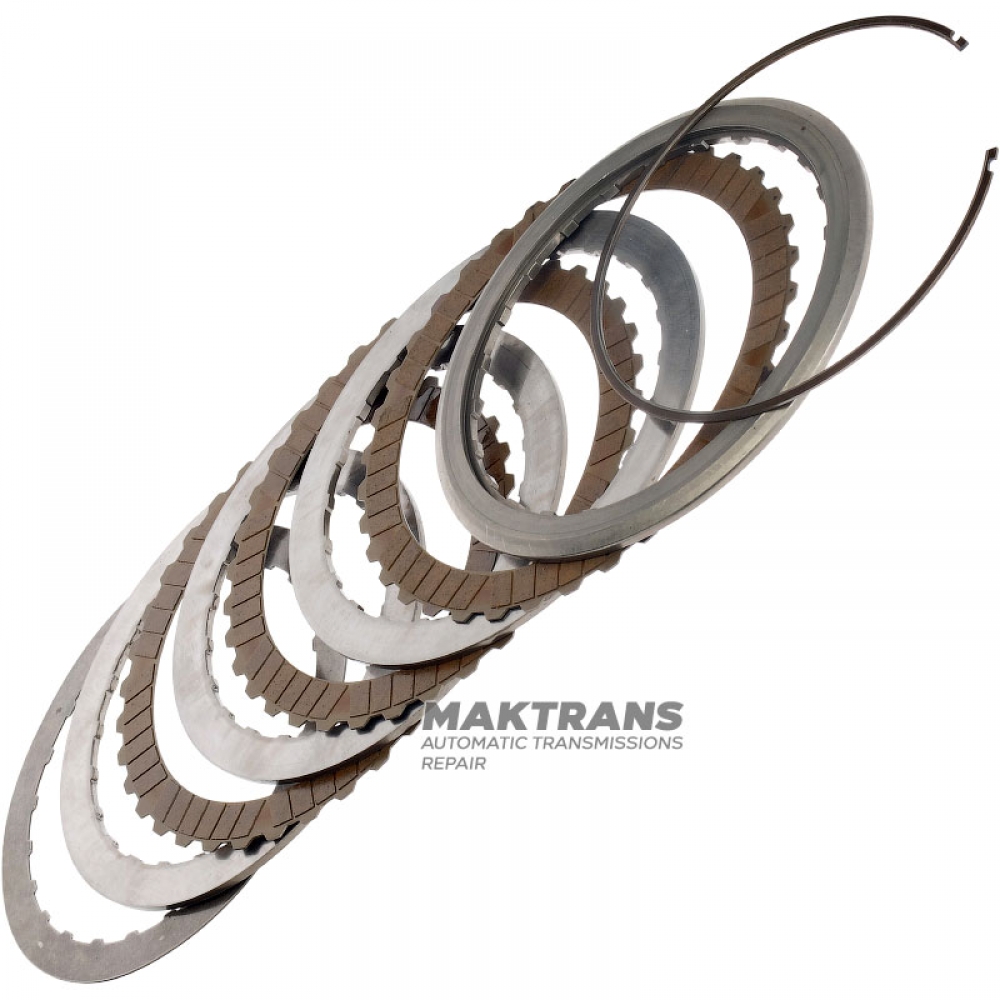

Ford 6F35 Steel and Friction Disc Set - 3 Friction Discs, 7T4Z-7B442-B, AA5Z-7B164-F, AA5Z-7B164-D, DT4Z-7B164-E, 7T4Z-7B164-D

• The total thickness of the set is 21.65 mm;

Support disk:

• Thickness - 6.30 mm;
• Outer diameter - 173.35 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Inner diameter - 144.90 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 3.40 mm;
• Outer diameter - 173.20 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;

Spring disc:

• Thickness - 0.85 mm;
• Outer diameter - 171.95 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;
