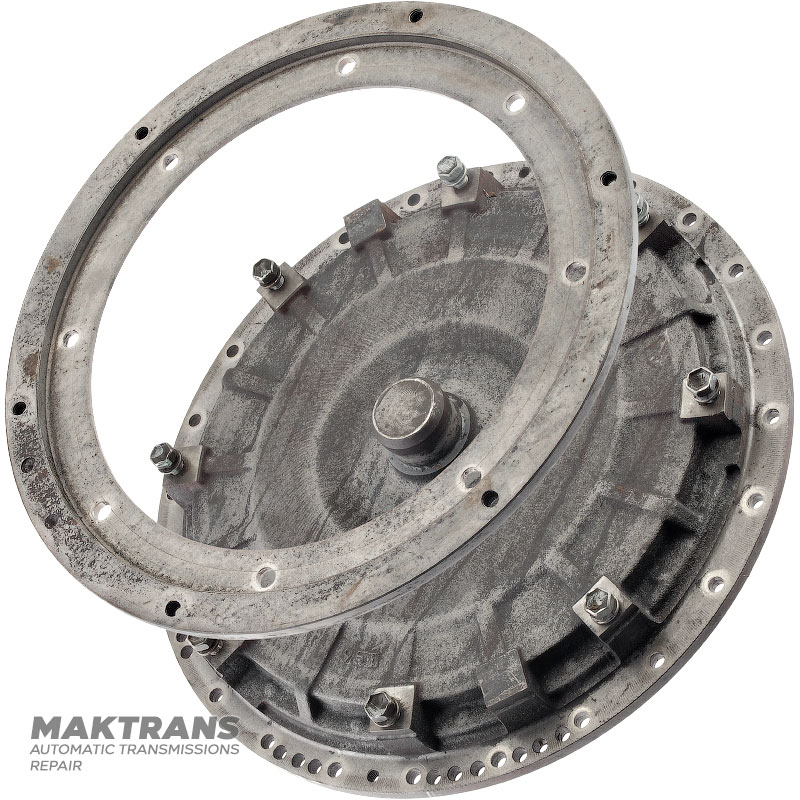

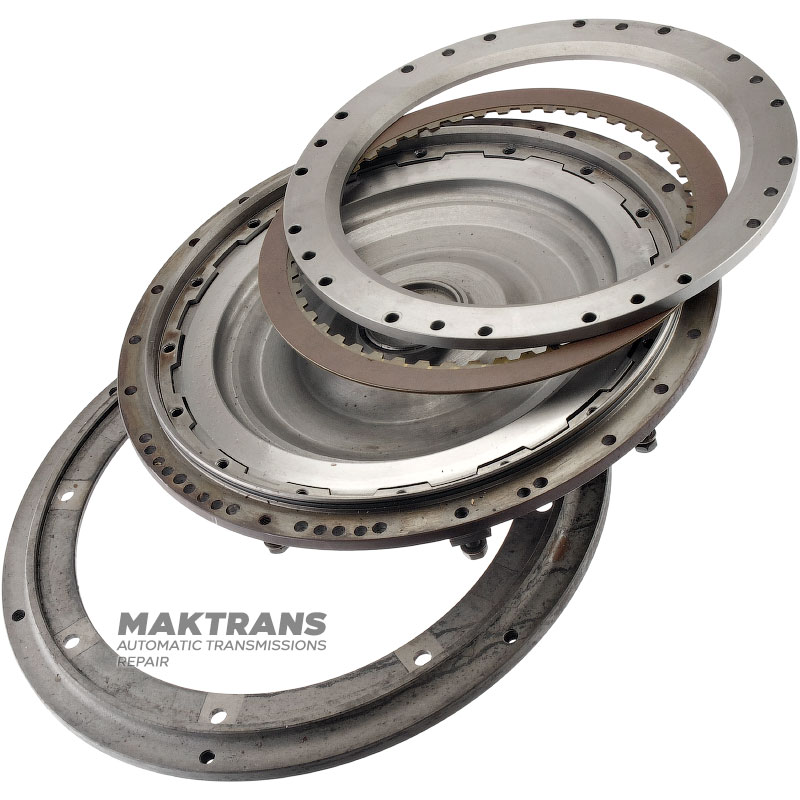

Front cover of the torque converter (assembled) AISIN WARNER A581 - 8 mounting holes, outer Ø of the pilot 43.25 mm

Lid:

• Overall height - 82 mm;
• Outer body diameter - 384 mm;
• Pilot height - 40 mm;
• Pilot outer diameter - 42.25 mm;
• Radius from the center of the pilot to the center of the mounting hole - 163 mm;
• The distance between the centers of the mounting holes is 125 mm;

Friction disc:

• Thickness - 3.20 mm;
• Outer diameter - 301 mm;
• Number of teeth - 50 pcs.;

Torque converter mounting disc:

• Total height - 20 mm;
• Outer diameter - 395 mm;
• Inner diameter - 292 mm;
• Number of mounting holes (to the torque converter) - 8 pcs.; distance between centers 124.50 mm;
• Number of mounting holes (to the flywheel) - 6 pcs., distance between centers 187 mm;
