Input shaft, front planetary gear Aisin Warner AWF8G30 - overall shaft length 209 mm, 20 splines (ext.Ø 21.35 mm)

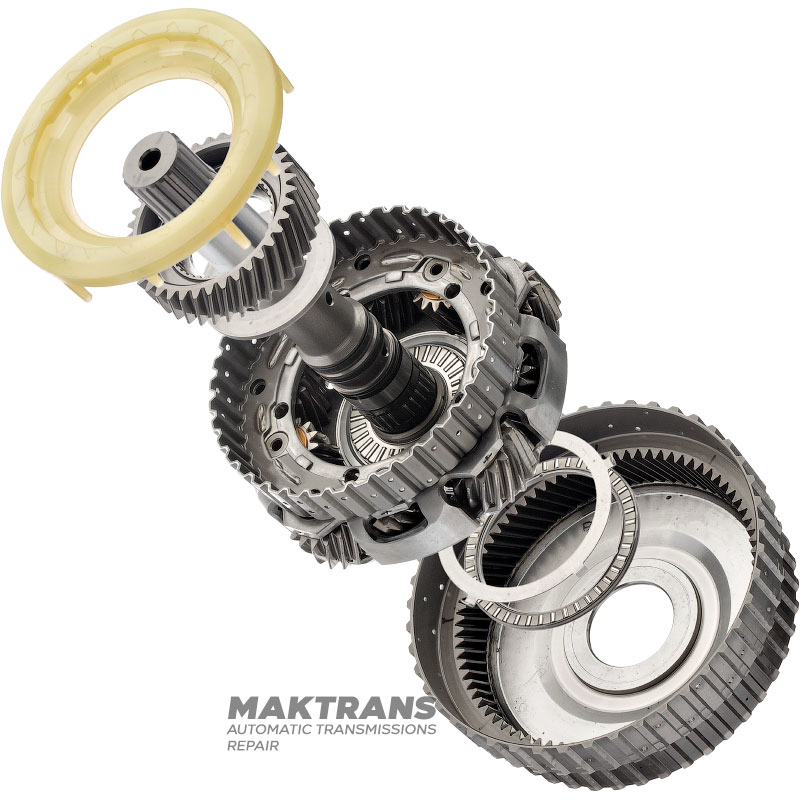

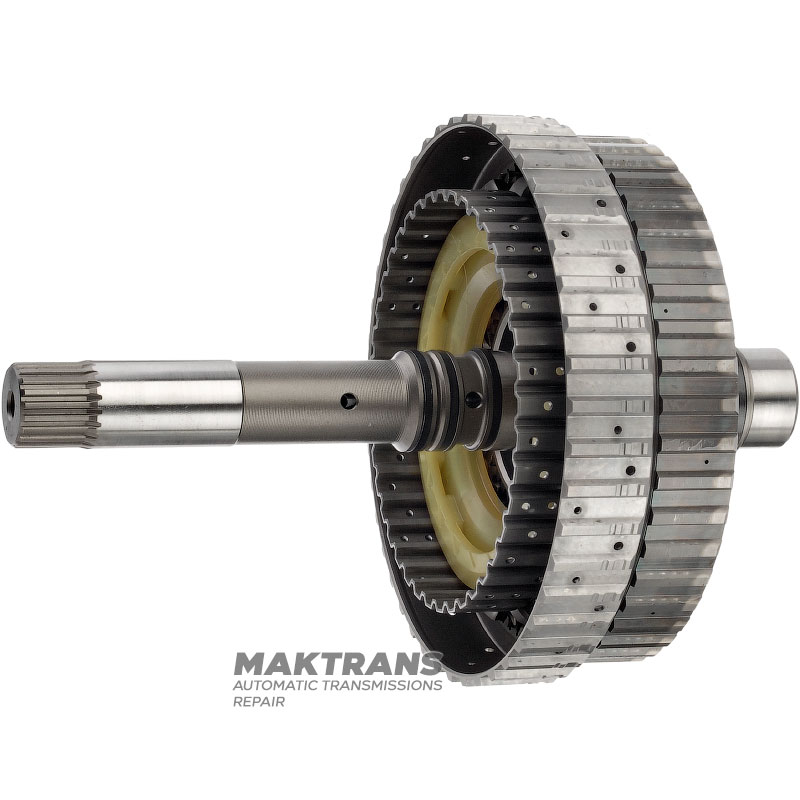

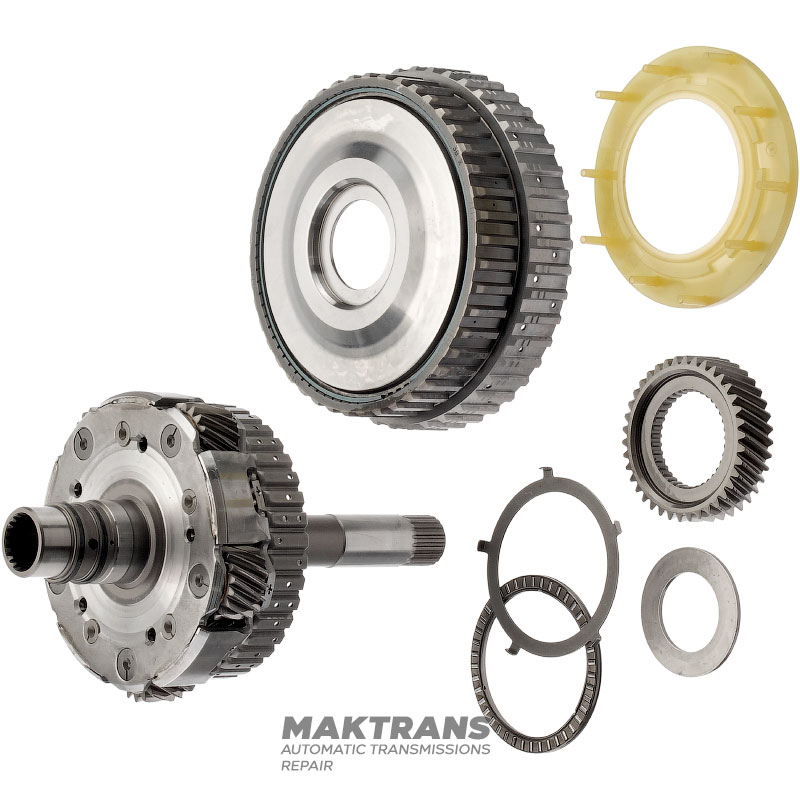

Input shaft, front planetary gear:

• Total shaft length - 209 mm;

Front side:

• Number of splines - 20 pcs.;
• The outer diameter of the splined part is 21.35 mm;
• Outer diameter over Teflon rings - 25.85 mm;
• C4 Clutch Hub Outer Diameter - 109.10mm;

Number of satellites:

• Sun gear - 5 satellites / 15 teeth;
• Ring gear - 5 satellites / 17 teeth;

Back side:

• Overall height - 51 mm;
• Number of splines on the inner side - 21 pcs.;
• Number of sealing rings - 2 pcs. / outer Ø 30.55 mm;
• Outer diameter of working parts - 32.70 mm / 27.15 mm;

Sun gear:

• Width - 16.95 mm;
• Number of teeth - 38 pcs.;
• Gear outer diameter - 62.45 mm;
• Number of splines on the inner side - 37 pcs.;

Ring gear:

• Overall height - 52 mm;
• Number of teeth - 78 pcs.;
• C4 Clutch Hub Outer Diameter - 147.30mm;
• C1 Clutch Hub Outer Diameter - 137.70mm;
