Oil pump hub TOYOTA / LEXUS A750E, A750F, A760E, A760F - 3537050030, 3561750030, 9030199139

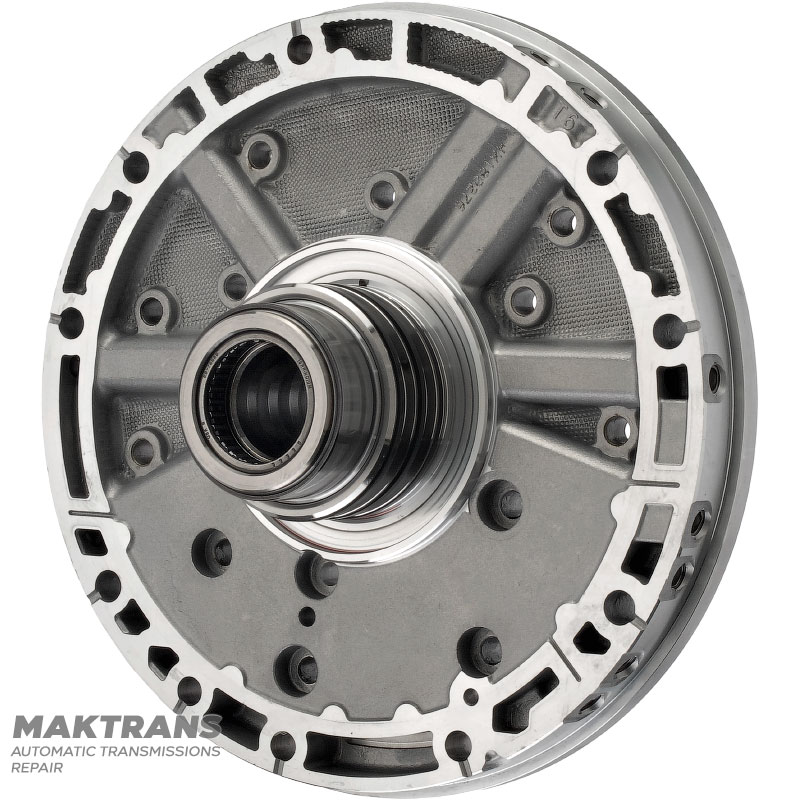

Front side of the hub:

• Overall height - 144 mm;
• Inner diameter of the sleeve - 21.45 mm;
• Number of splines on the stator - 38 pcs.;
• The outer diameter of the splined part is 30.90 mm;
• Stator height (front side) - 72 mm;
• The outer diameter of the aluminum body is 234.25 mm;

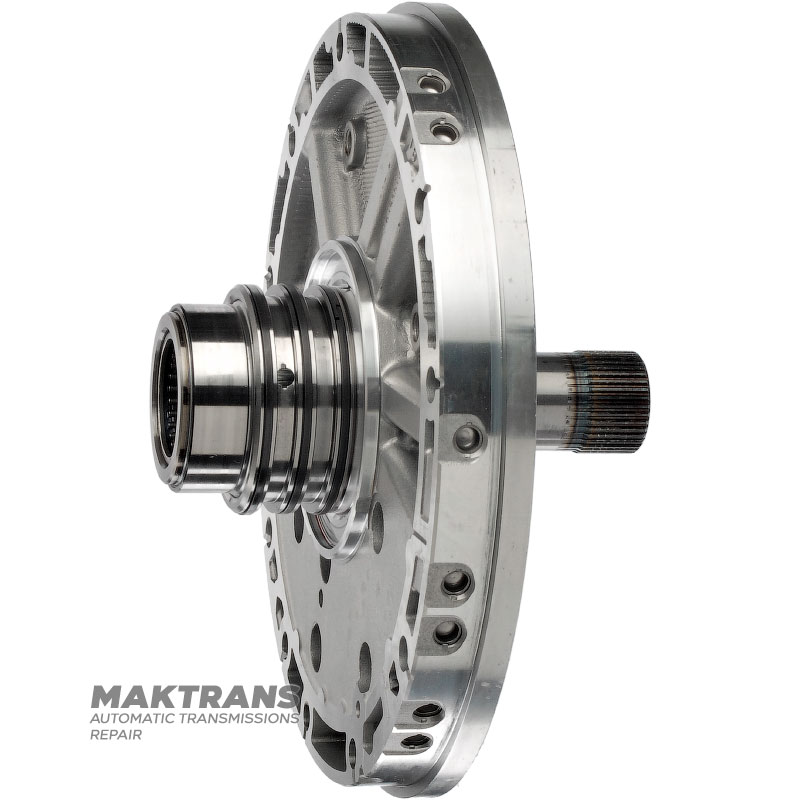

Rear of Hub/Drum Hub C2-C3 Clutch:

• Height (from the base) - 52 mm;
• Number of Teflon rings - 3 pcs.;
• Outer diameter over Teflon rings - 67 mm;
• The outer diameter of the working part of the bearing is 55.20 mm;
