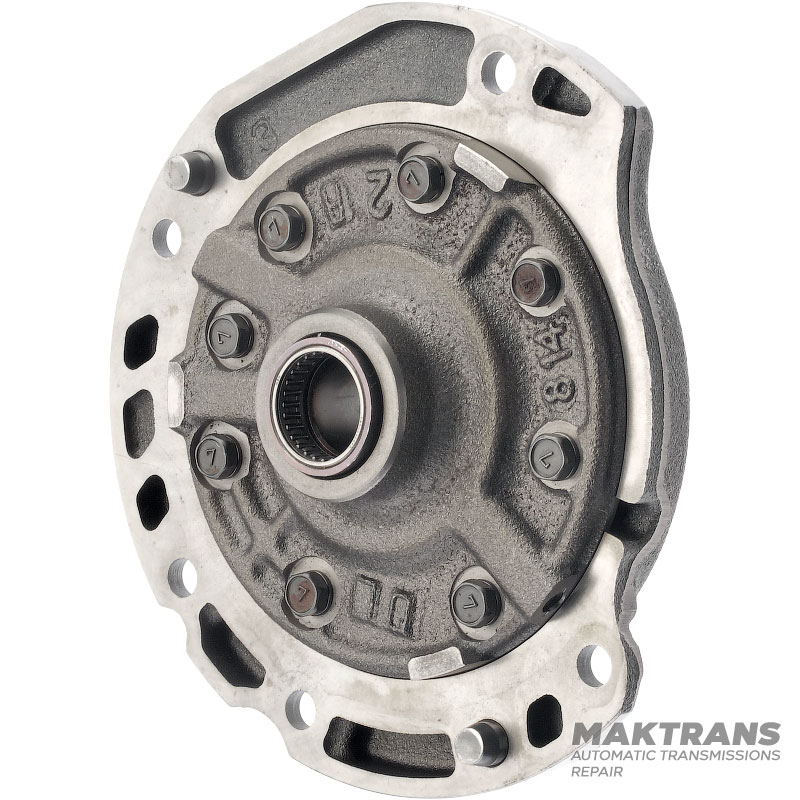

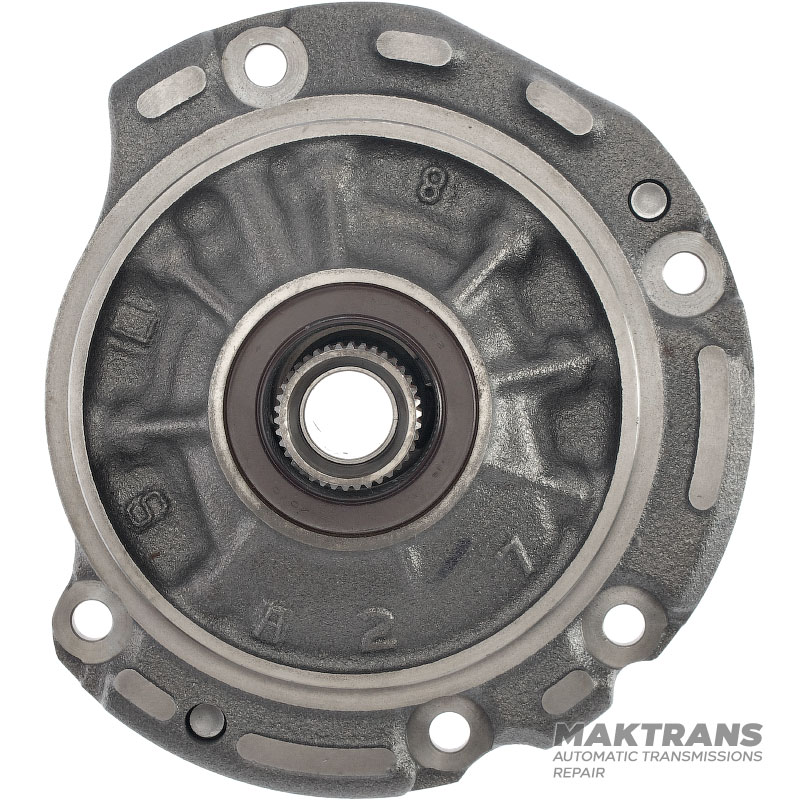

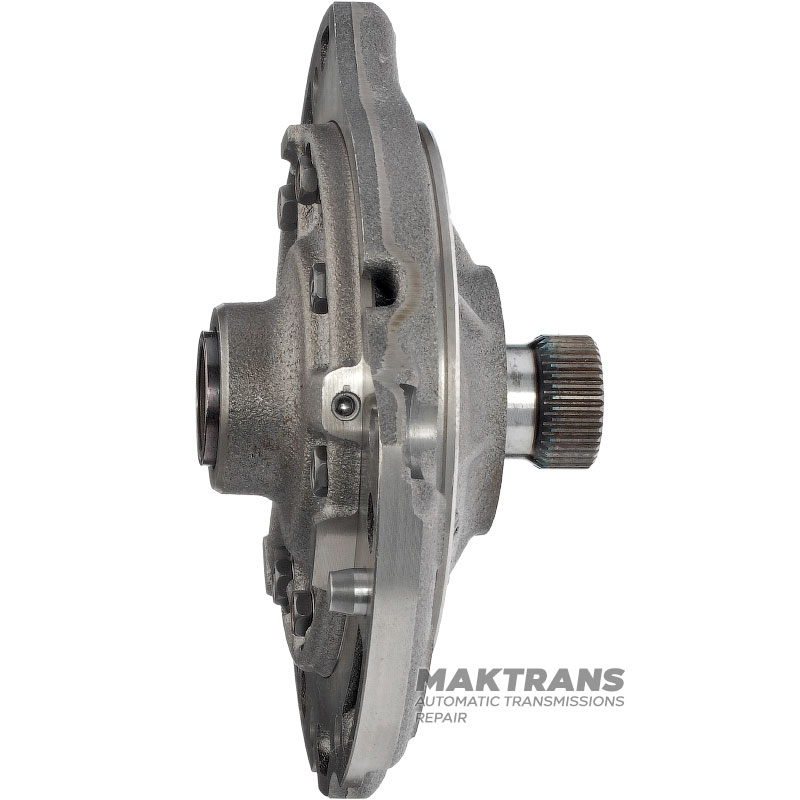

Oil pump TOYOTA U441 – (gear thickness 9.80 mm)

Oil pump housing:

• Total height - 36 mm;
• Inner diameter of the sleeve - 37.80 mm;

Oil pump gears:

Drive gear:

• Thickness - 9.80 mm;
• Inner diameter - 38.15 mm;
• Number of teeth - 9 pcs.;

Driven gear:

• Thickness - 9.80 mm;
• Inner diameter - 79.85 mm;
• Number of teeth - 10 pcs.;

Oil pump hub:

• Total height - 90 mm;
• The outer diameter of the case is 126 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the spline part is 30.90 mm;
• Inner diameter of the sleeve - 18.30 mm;
