Main Specifications
Condition (used, new):
used and inspected
Type:

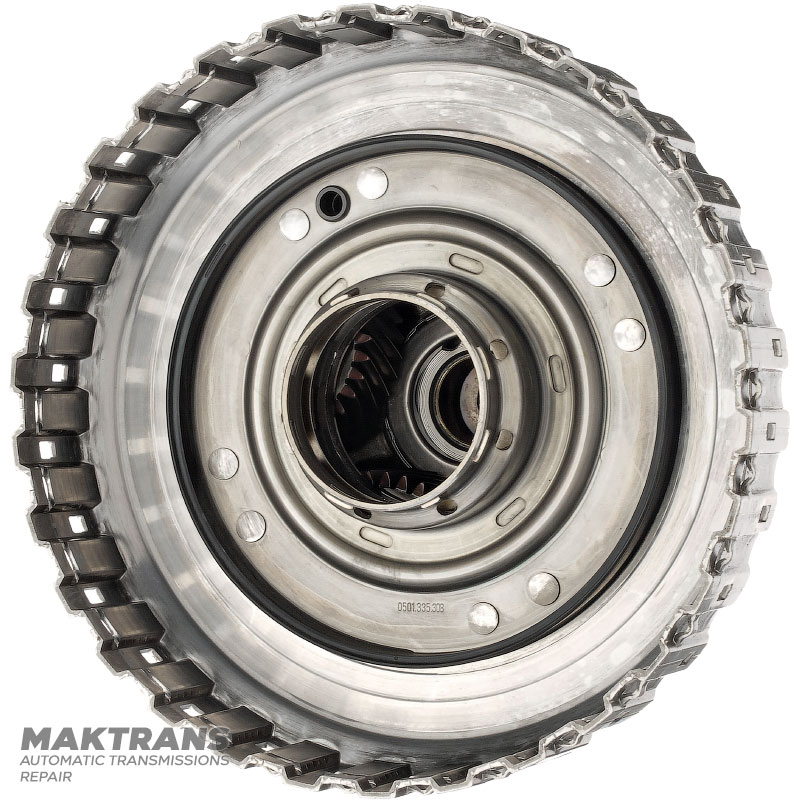

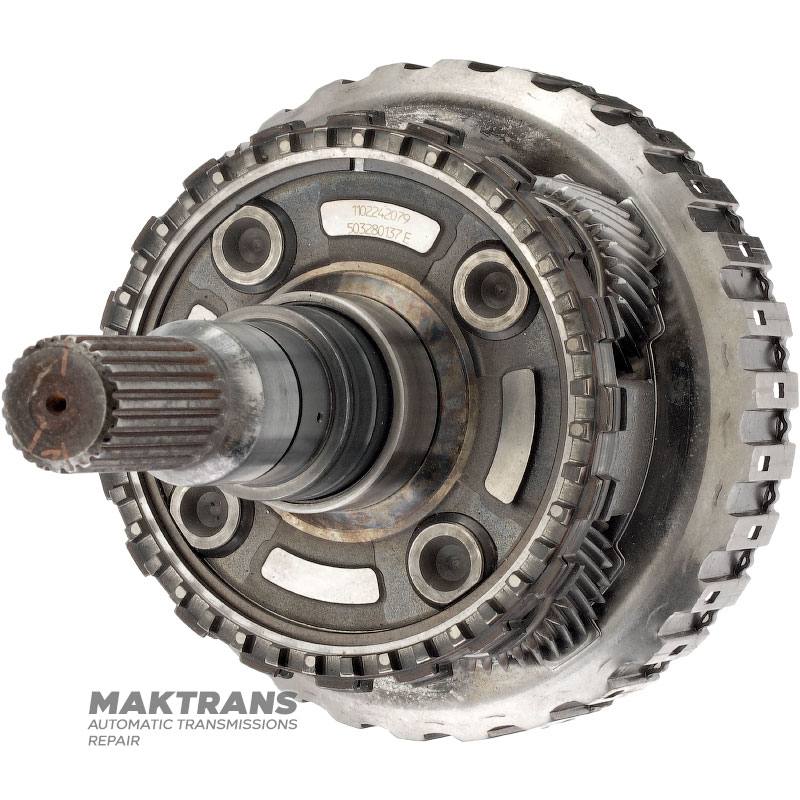

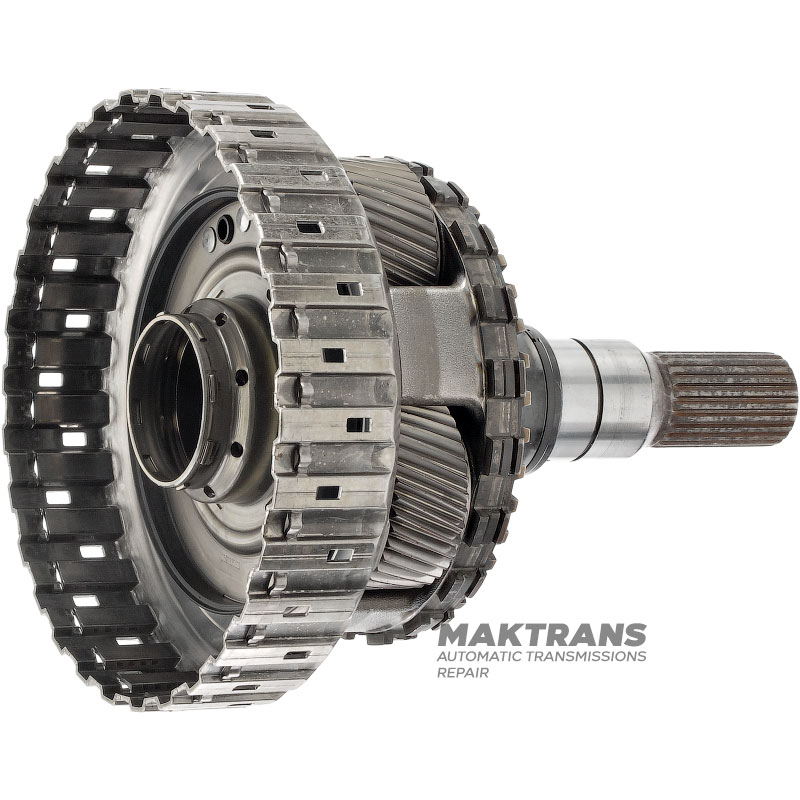

Output shaft, D-clutch drum, planetary gear #4
Number of pinions:
4
Number of teeth on the satellite:
37
Height (mm):
233 mm
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Overall height - 233 mm;
- Drum outer diameter D Clutch - 182.85 mm;
- Number of satellites - 4 pcs.;
- Number of teeth on the satellites - 37 pcs.;
- Length of output shaft from base - 147 mm;
- The outer diameter of the working part (at the base of the drum) is 54.95 mm;
- Outer diameter over Teflon rings - 46.70 mm;
- Shaft outer diameter - 38.90 mm;
- Number of splines - 23 pcs.;
- The outer diameter of the splined part is 30.80 mm;
- Length of splines - 50 mm;
