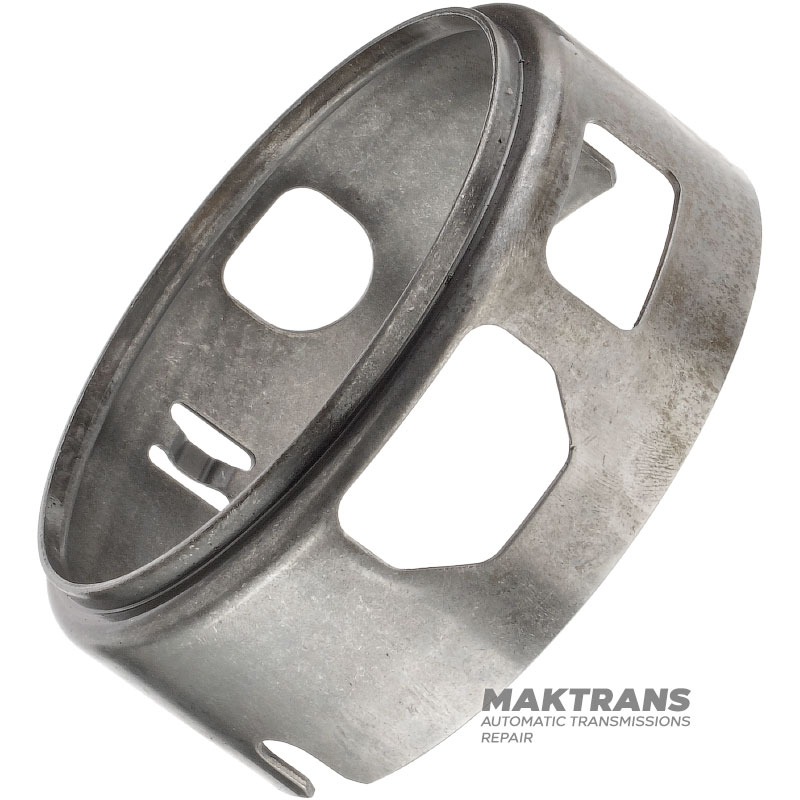

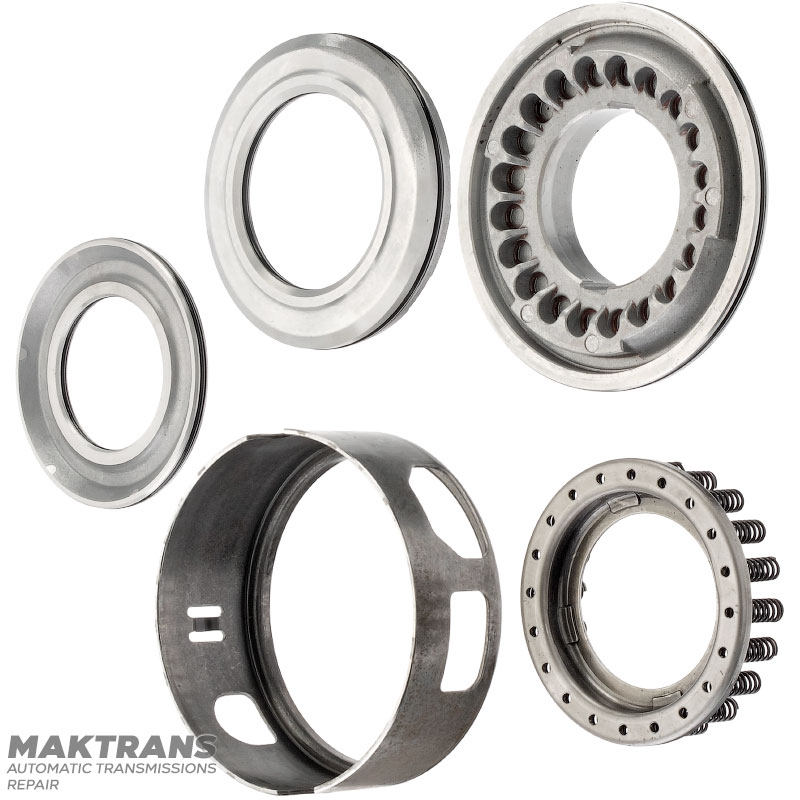

Piston Low / Reverse B4 Brake A960E — 3562922030, 3562622020, 3562322030, 3506822010

Aluminum piston:

• Total piston height - 125.10 mm;
• Inner diameter - 57.35 mm;

Outside diameter (over outer rubber rings):

• ext.Ø 110.20 mm;
• ext.Ø 124.75 mm;

Return spring block:

• Overall height - 23.65 mm;
• Outer diameter - 92.55 mm;
• Inner diameter - 55.85 mm;

Push cylinder:

• Total height - 50 mm;
• Outer diameter - 124.90 mm;
• Inner diameter - 121 mm;
