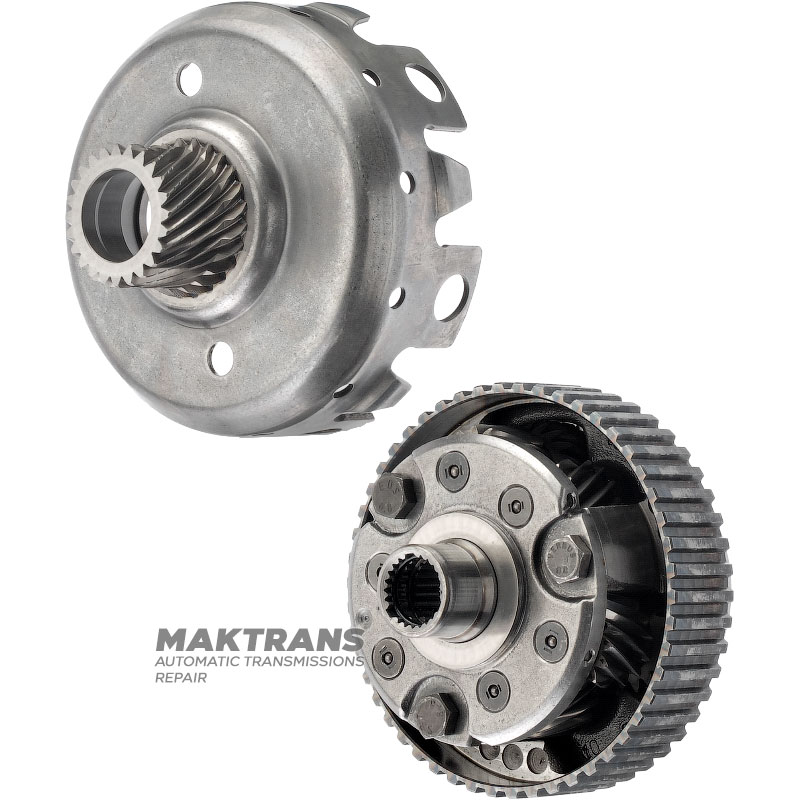

Planetary gear VAG 01M, 01N, 01P 01 095323301Q, 095323329P, — 3 satellites (ring gear) — 14 teeth, 3 satellites (front sun gear) — 17 teeth, 3 satellites (rear sun gear) — 15 teeth

Planetary gear:

• Overall height - 103 mm;
• Outer diameter (by hub) - 125 mm;
• Number of teeth on the Low/Reverse hub - 50 pcs.;
• The outer diameter of the working part of the overrunning clutch is 84.95 mm;

Satellites:

• Front sun gear/ring gear satellites - 17 teeth ;
• Rear sun gear satellites - 15 teeth;
• Ring gear satellites - 14 teeth;

  ---



Sun gears:

Front:

• Overall height - 97 mm;
• Shell height - 56 mm;
• Shell outer diameter - 139.50 mm;
• Number of teeth on the sun gear - 24 pcs.;
• Sun gear outer diameter: 44.80mm;

Back:

• Non-removable without disassembling the planetary gear;
• Number of teeth - 21 pcs.;

Tags: 095323727B, 095323715
