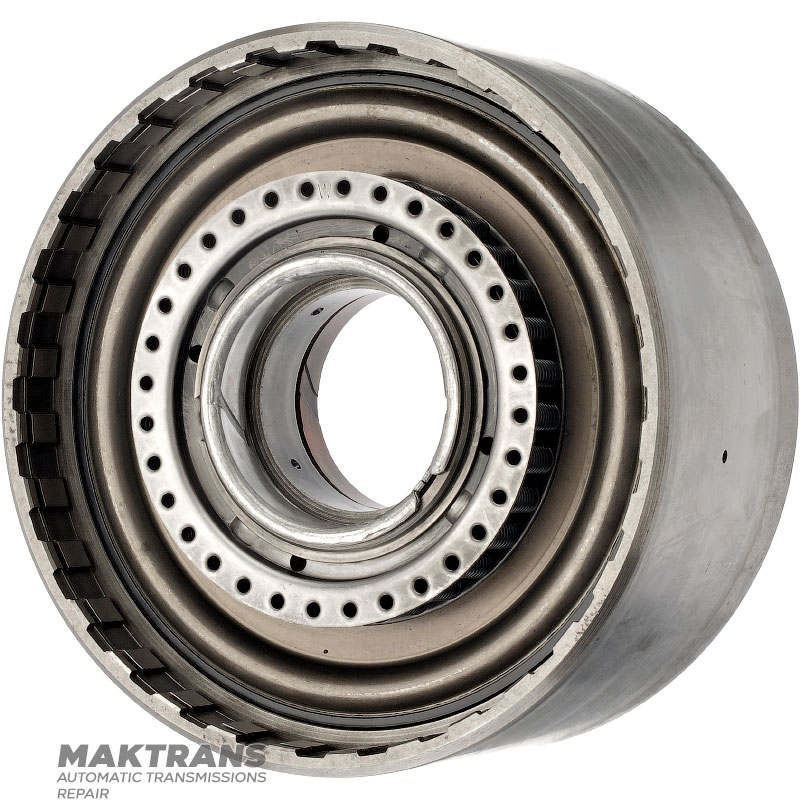

Reverse Clutch Drum (complete with discs) CD4E 3L8Z-7D044-AA - 2 friction discs (total thickness of the set 11.10 mm)

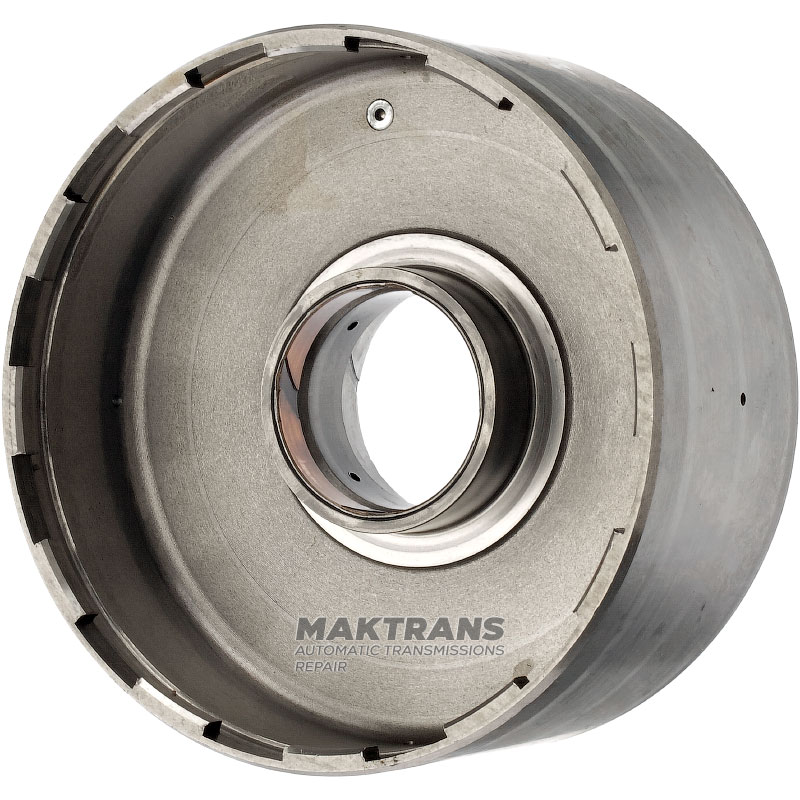

Drum:

• Overall height - 81.40 mm;
• Drum outer diameter - 169 mm;
• Inner diameter of the sleeve - 52 mm;
• Inner diameter of the bushing (Reverse Clutch pack side) - 57 mm;
• Height from piston to retaining ring (Reverse Clutch drum) - 11 mm;

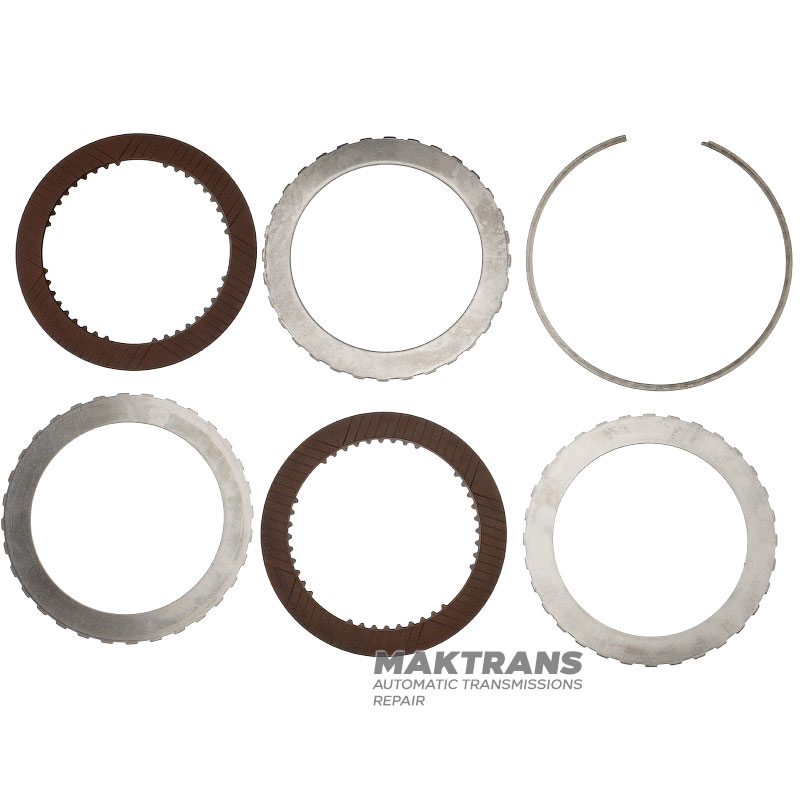

Reverse Clutch Steel and Friction Disc Kit:

• Total thickness - 11.20 mm;

Support disk:

• Thickness - 4.02 mm;
• Inner diameter - 120.80 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 154.30 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 120.80 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;
