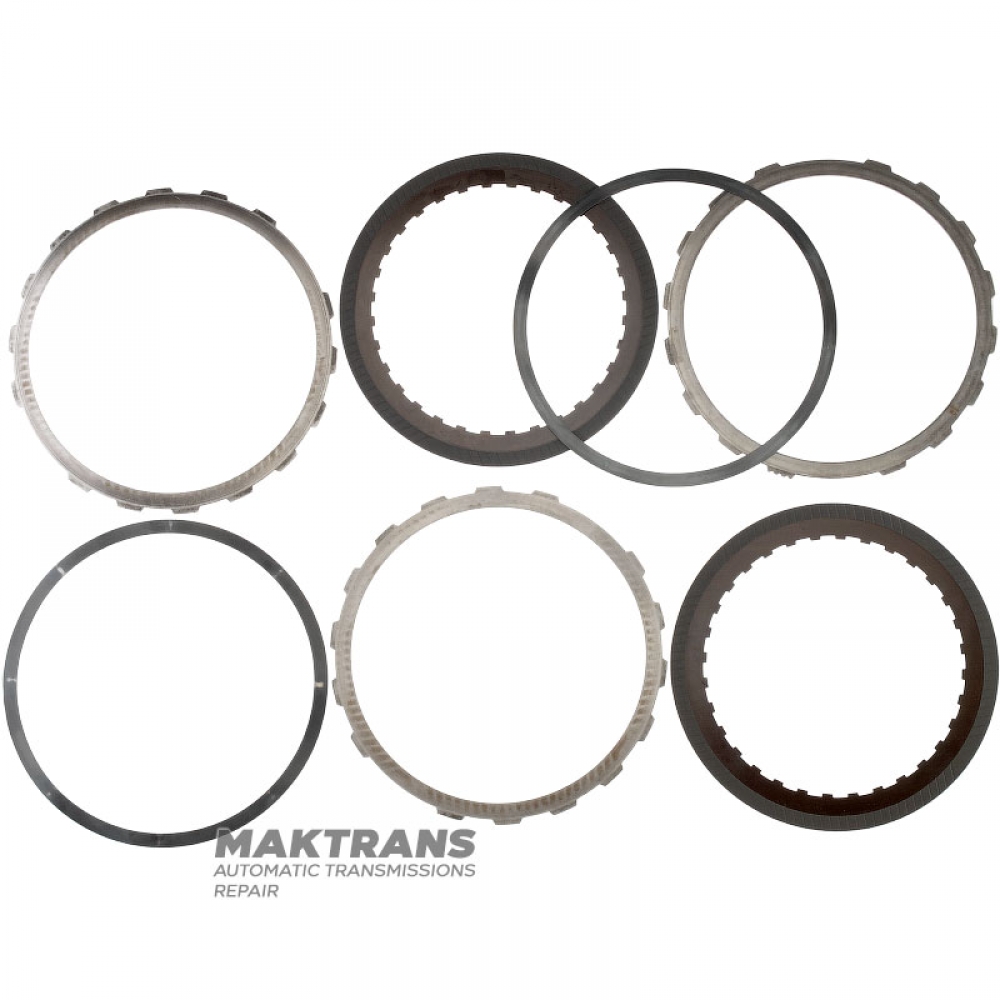

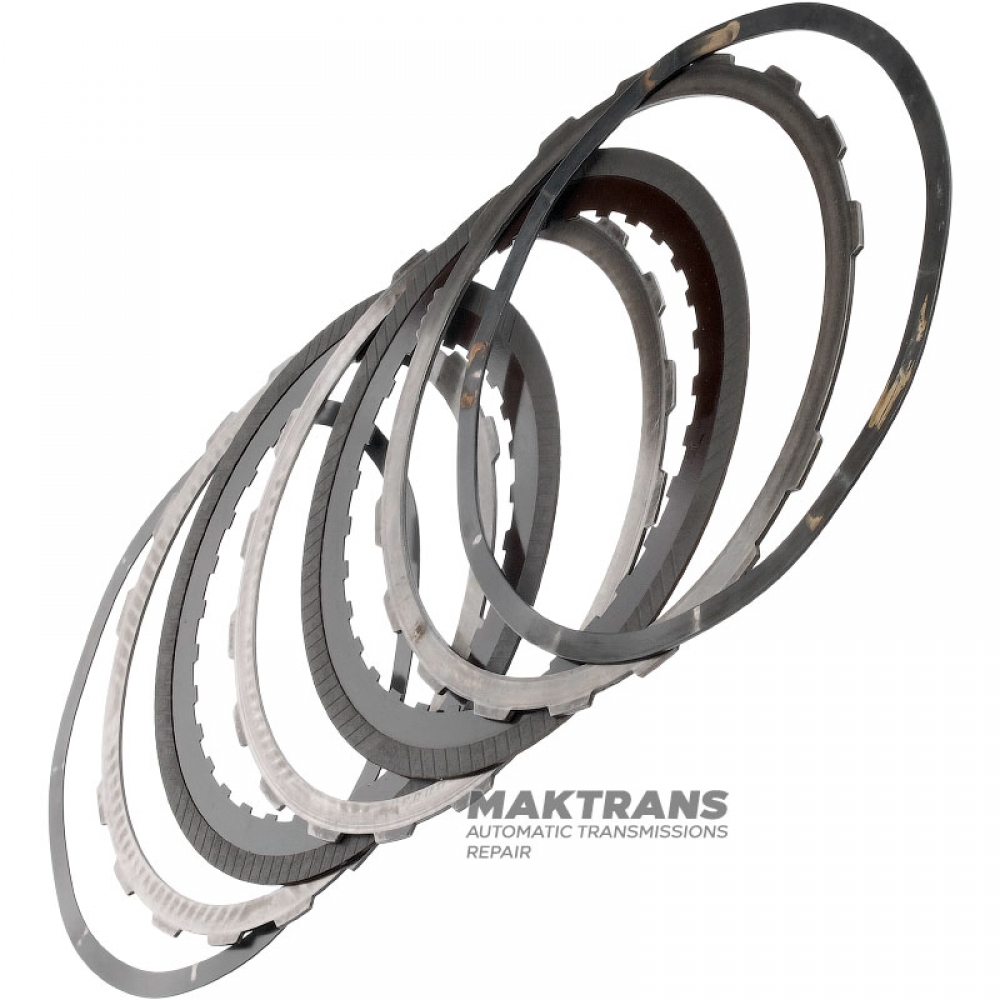

Set of steel and friction discs Low / Reverse Brake CD4E F3RZ-7B164-C, F3RZ-7B066-F - 2 friction discs (total thickness of the set 9.10 mm)

• The total thickness of the set is 9.10 mm;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 198.10 mm;
• Number of teeth - 16 pcs.;
• Number of disks in the set - 2

Steel disk:

• Thickness - 2.15 mm;
• Inner diameter - 198.10 mm;
• Number of teeth - 16 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 218.80 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 2 pcs.;

Spring disc:

• Thickness - 0.75 mm;
• Inner diameter - 201.35 mm;
• Outer diameter - 220.40 mm;
