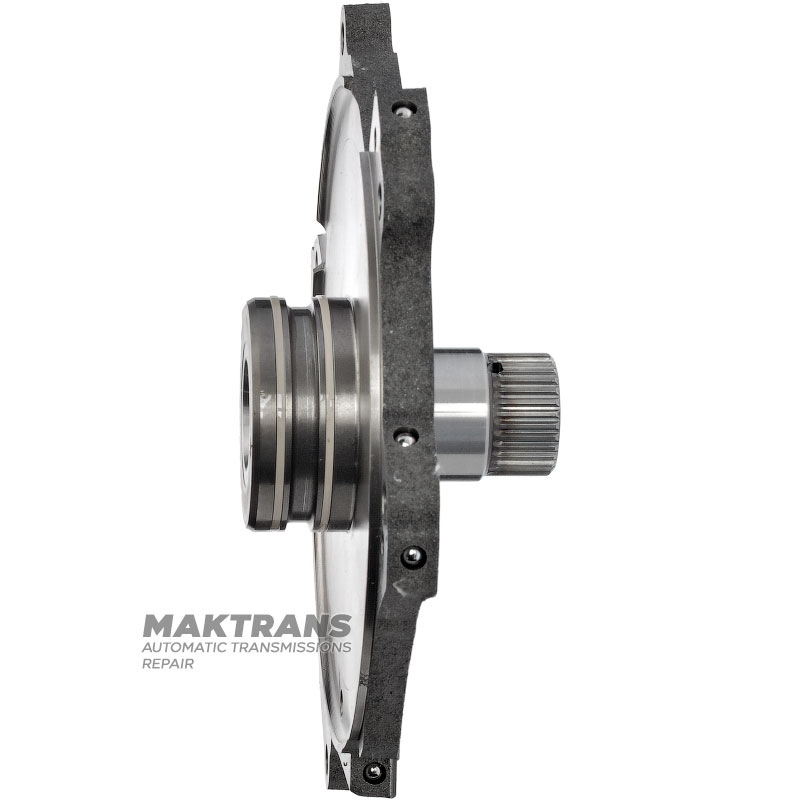

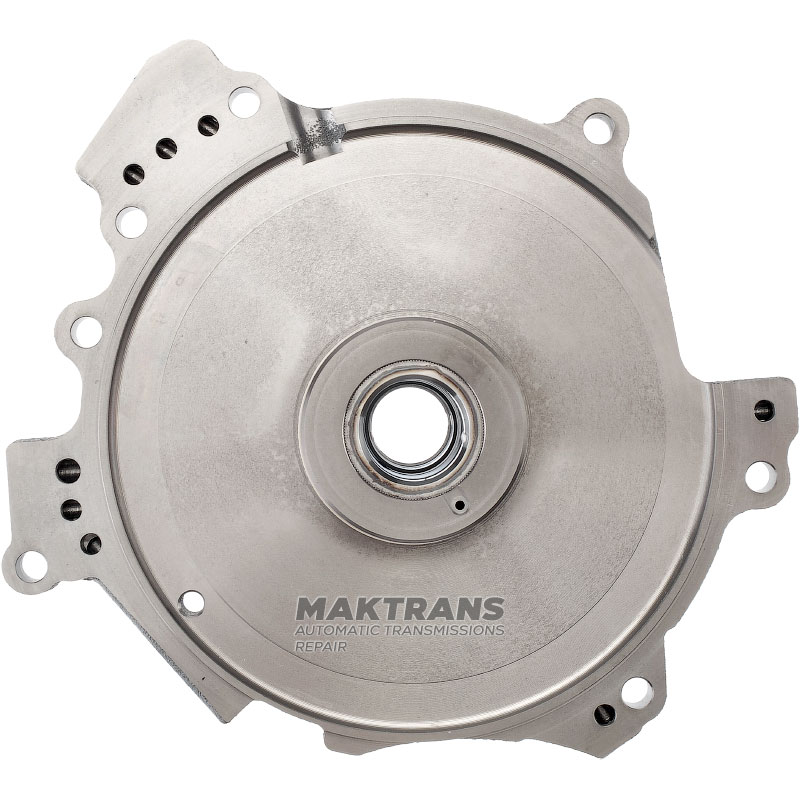

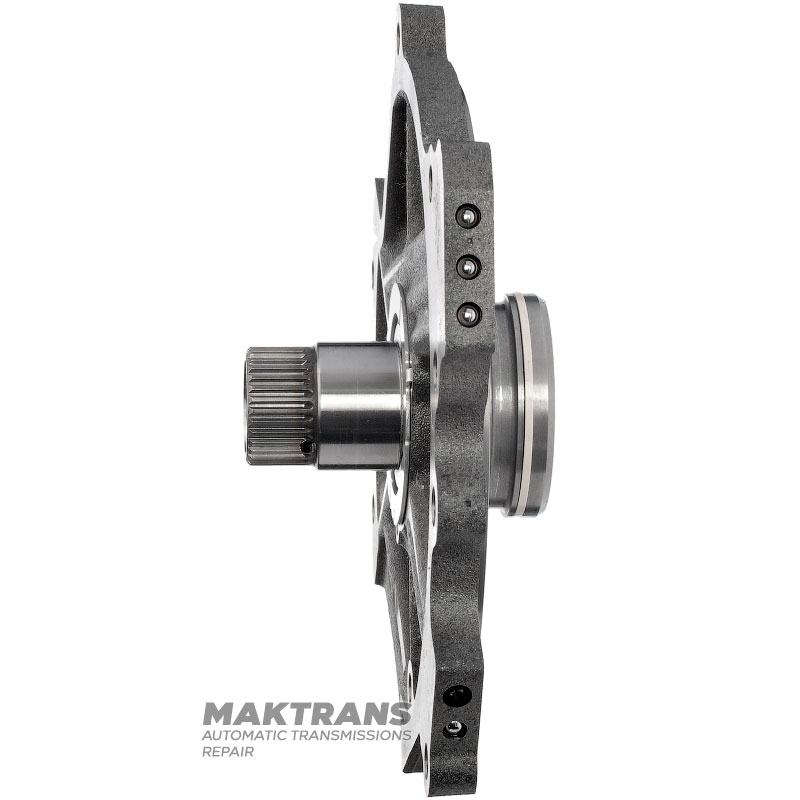

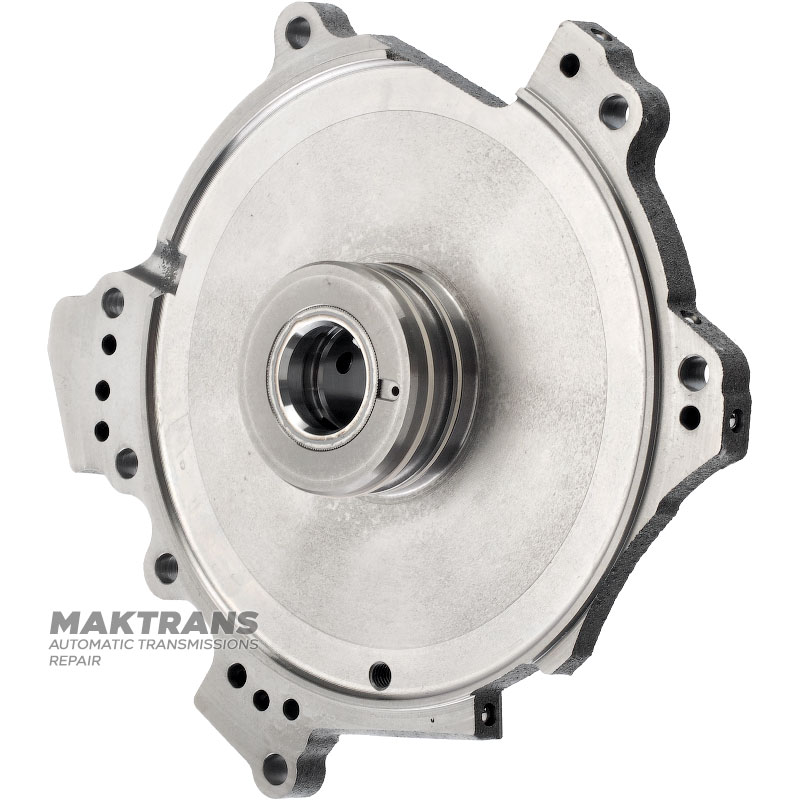

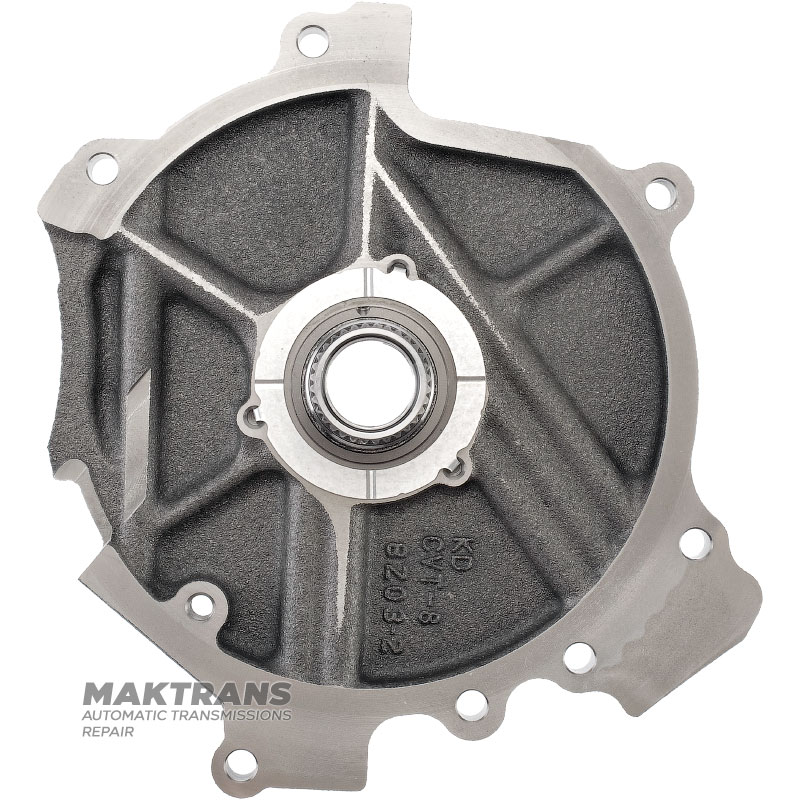

FORWARD Clutch JATCO CVT JF016E, JF017E Oil Pump/Drum Hub - Removed from New Transmissions

• Total height - 83 mm;
• The total height of the neck (on the front part) is 43 mm;
• The outer diameter of the working part of the neck is 36.50 mm;
• Inner diameter of the sleeve - 23.60 mm;
• The number of splines on the neck is 32 pcs.;
• The outer diameter of the spline part is 33.50 mm;

Forward Clutch Drum Hub:

• Total height - 28 mm;
• Outer diameter - 63.40 mm;
• Inner diameter - 28.60 mm;

Tags: 2791A026 2791A029 2791A028
