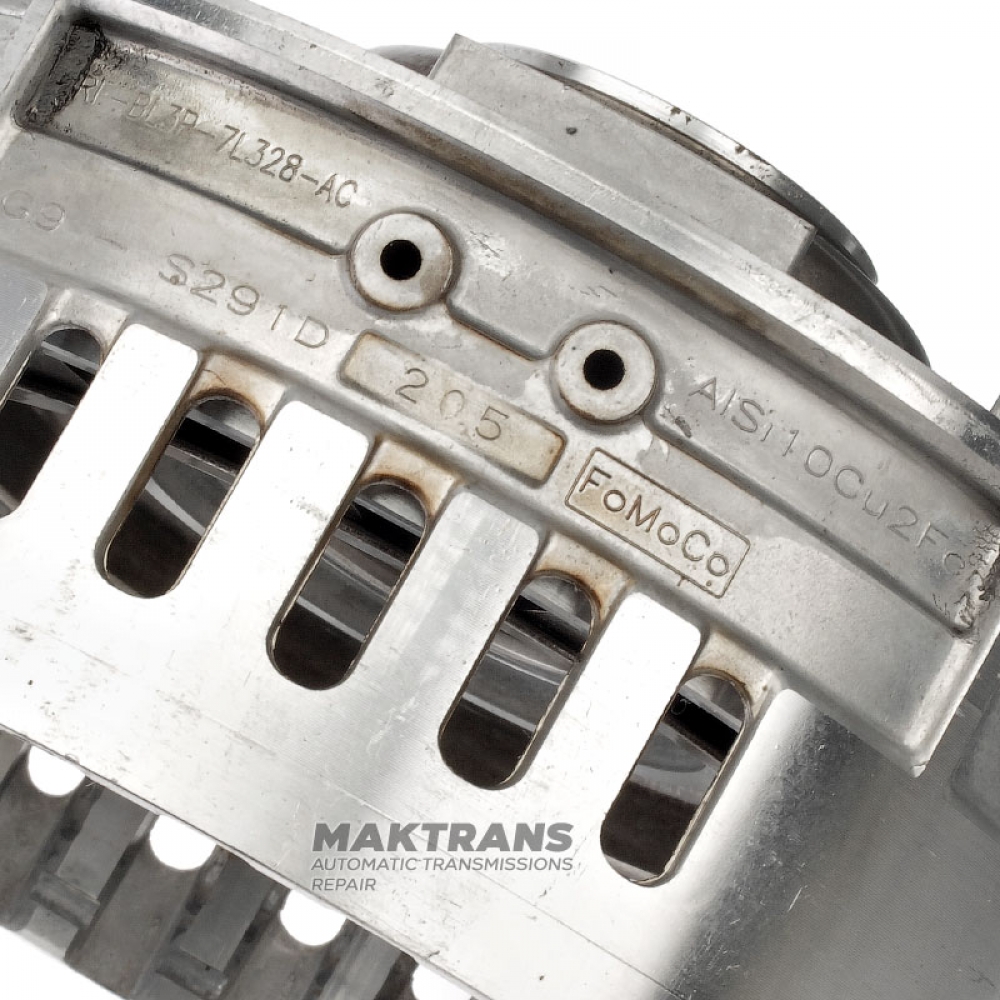

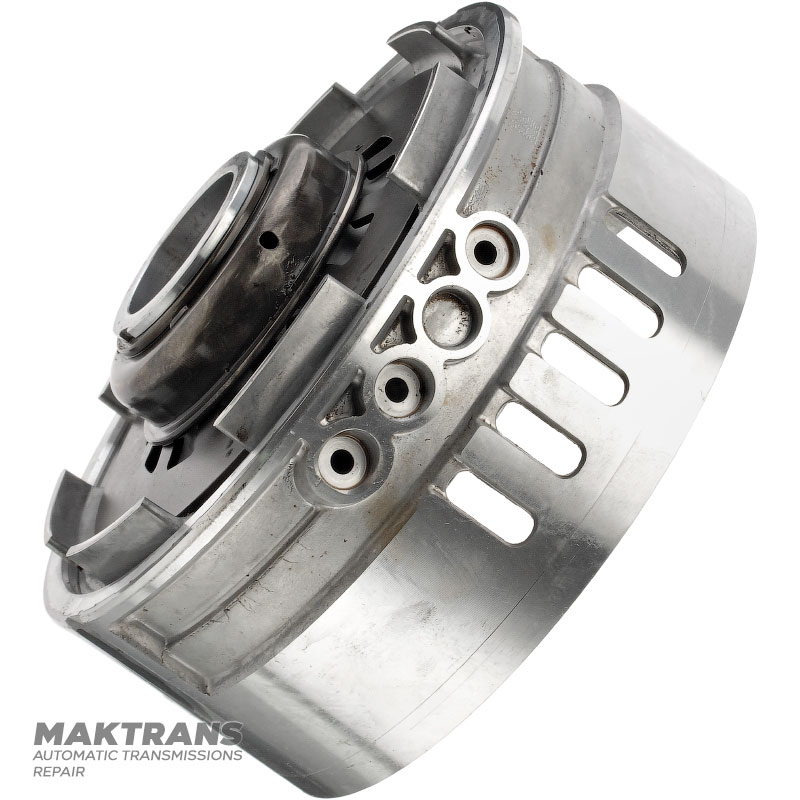

Drum C / D Clutch FORD 6R60, 6R75, 6R80 - BL3P-7L328-AC, 6 friction discs

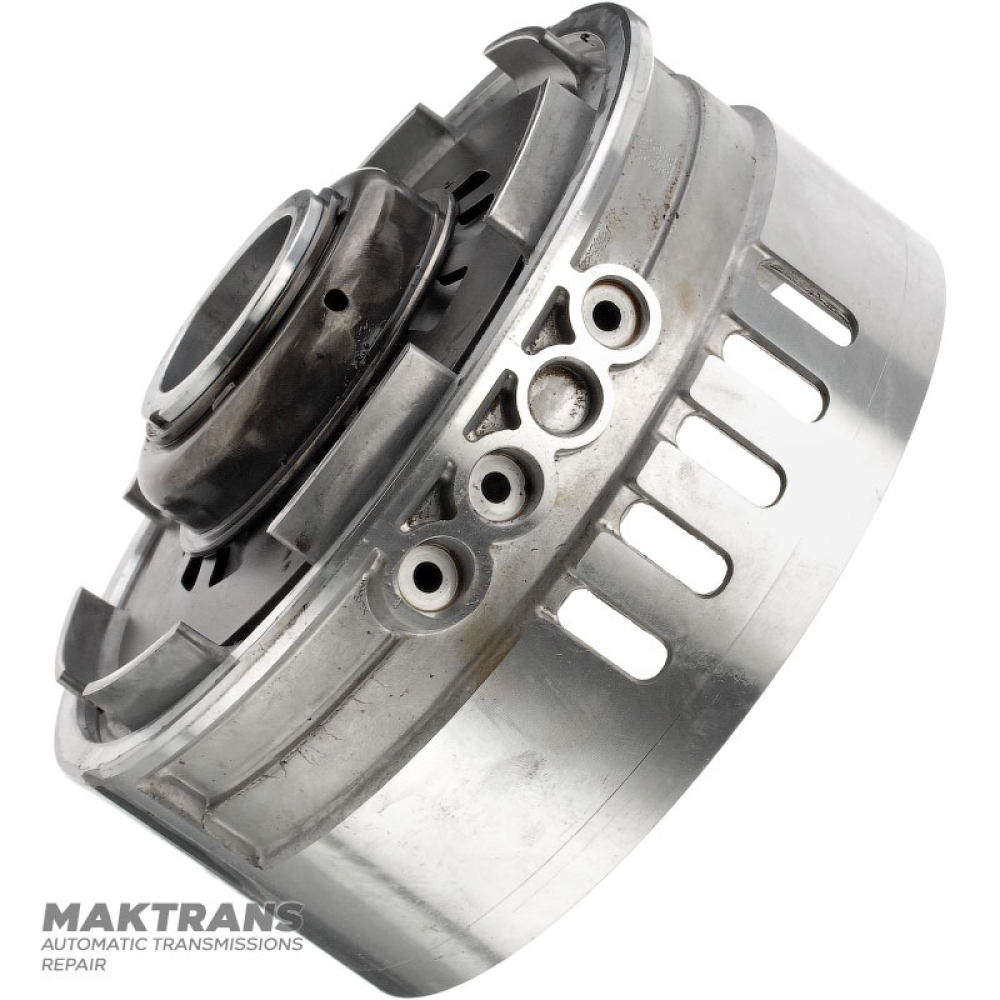

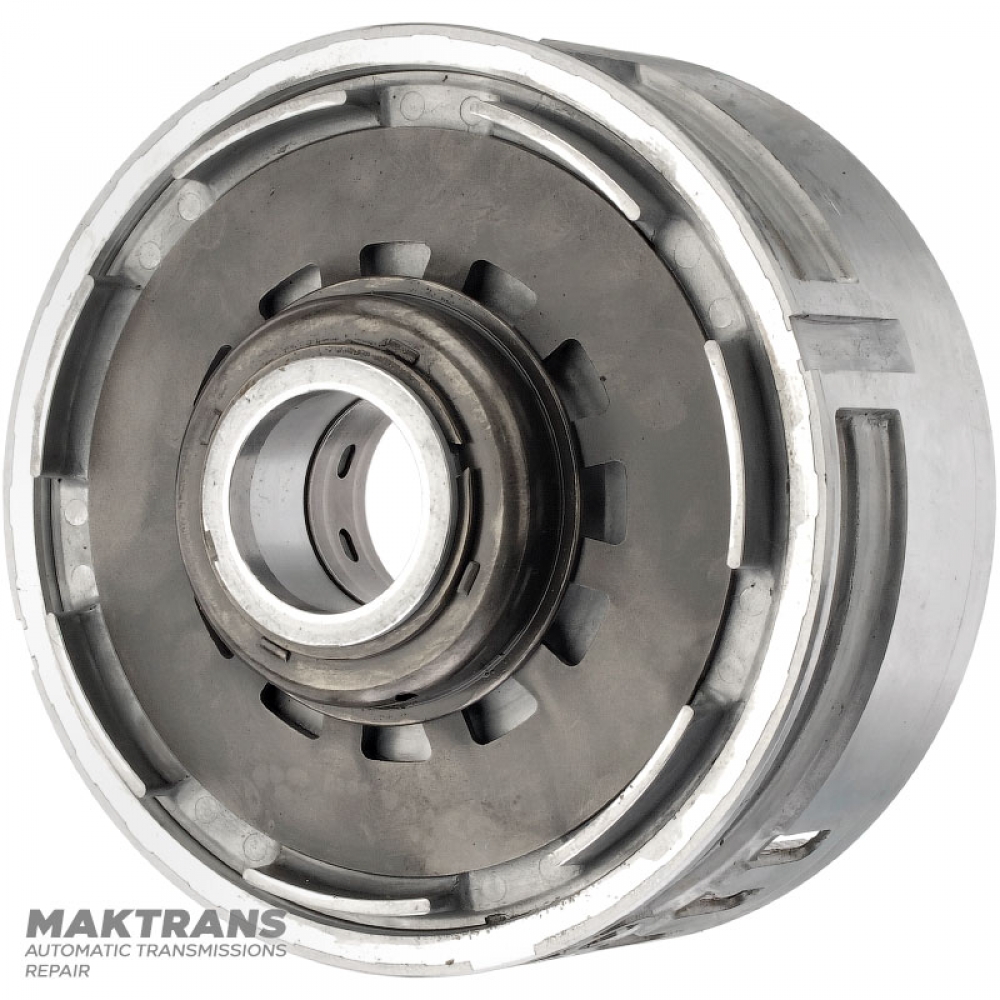

Drum:

• Overall height - 114 mm;
• Height to piston edge D Clutch - 95 mm;
• Piston tooth height D Clutch - 15 mm;
• Drum outer diameter - 202.35 mm;
• Inner diameter (piston side D Clutch) - 46.15 mm;
• Height from piston to retaining ring C Clutch - 32 mm;

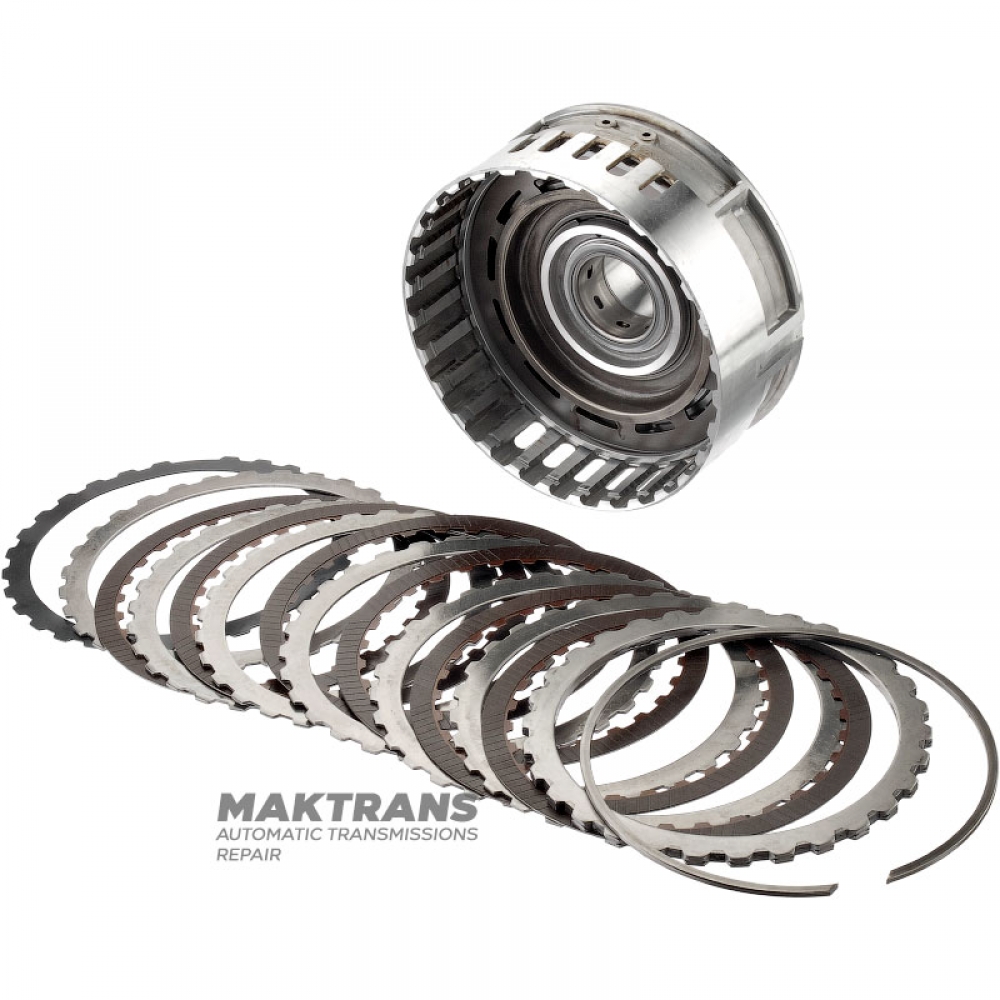

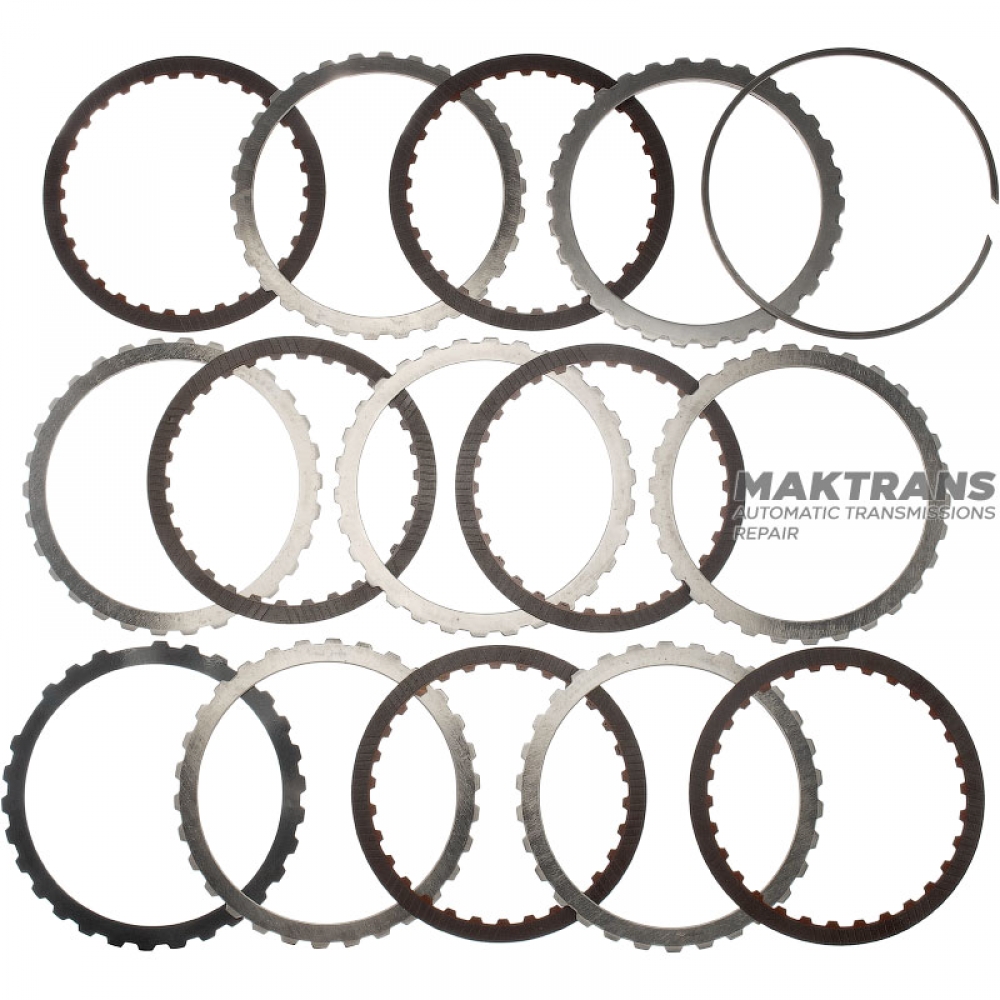

C Clutch Steel and Friction Disc Set:


• Total thickness of the set (without spring disc) - 28.40 mm;


Support disk:

• Thickness - 5.70 mm;
• Inner diameter - 163.80 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.05 mm;
• Inner diameter - 163.80 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 6 pcs.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 187.25 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 0.90 mm;
• Inner diameter - 163.85 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;
