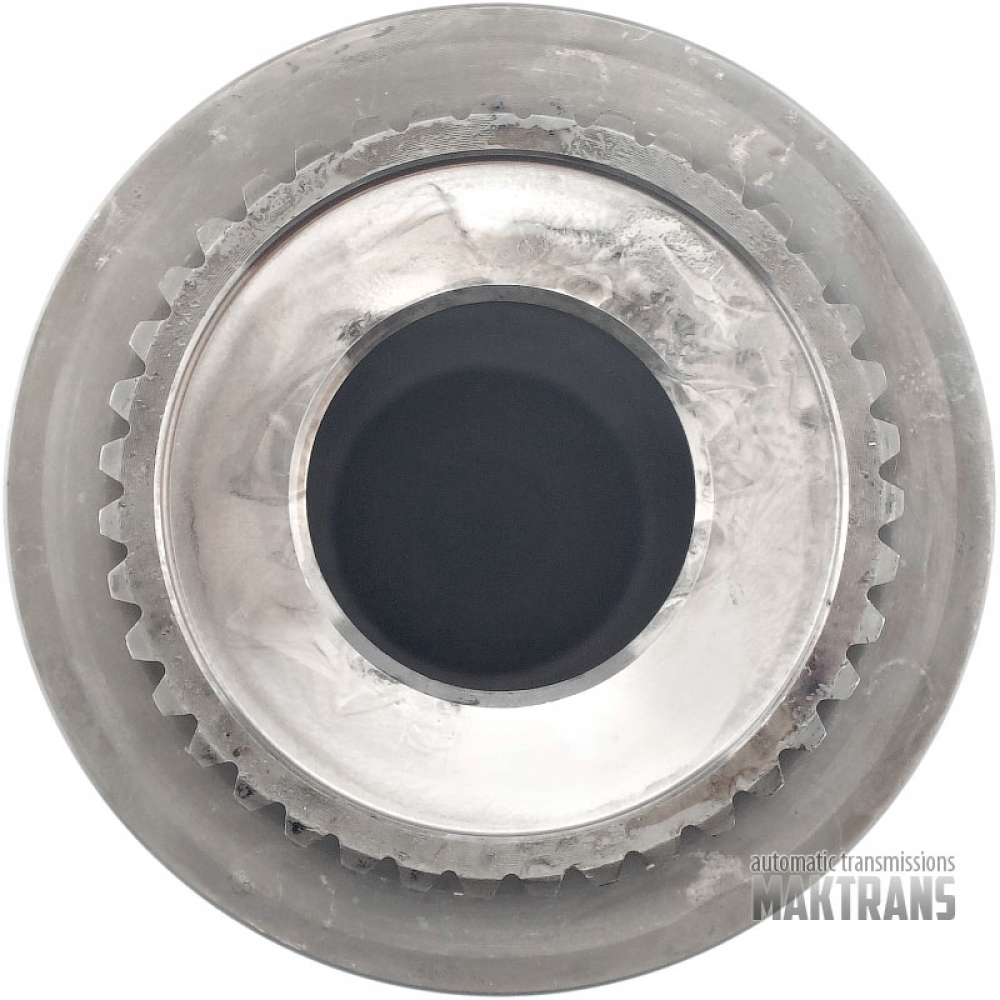

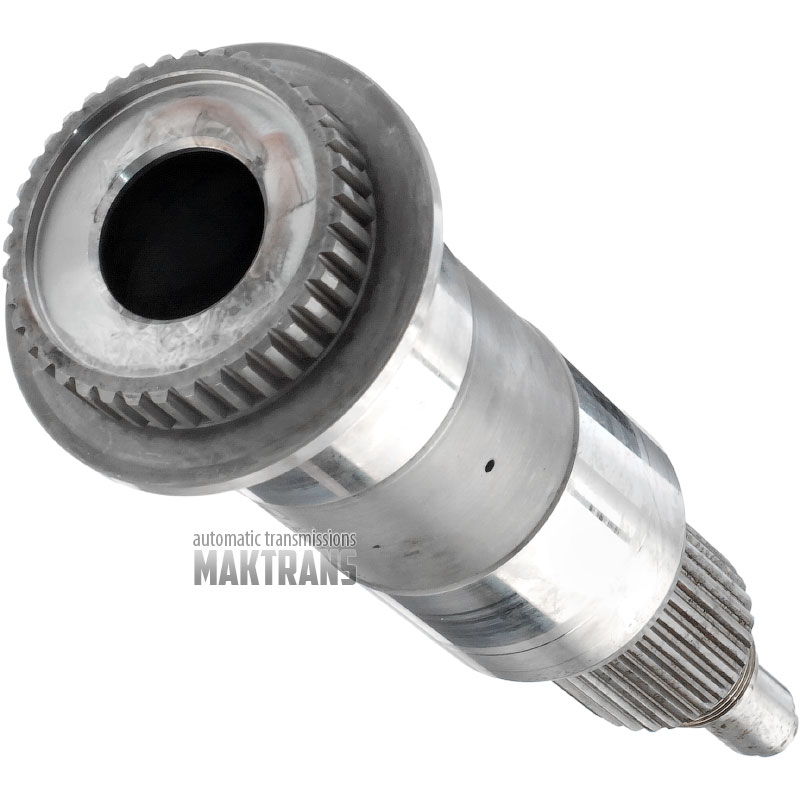

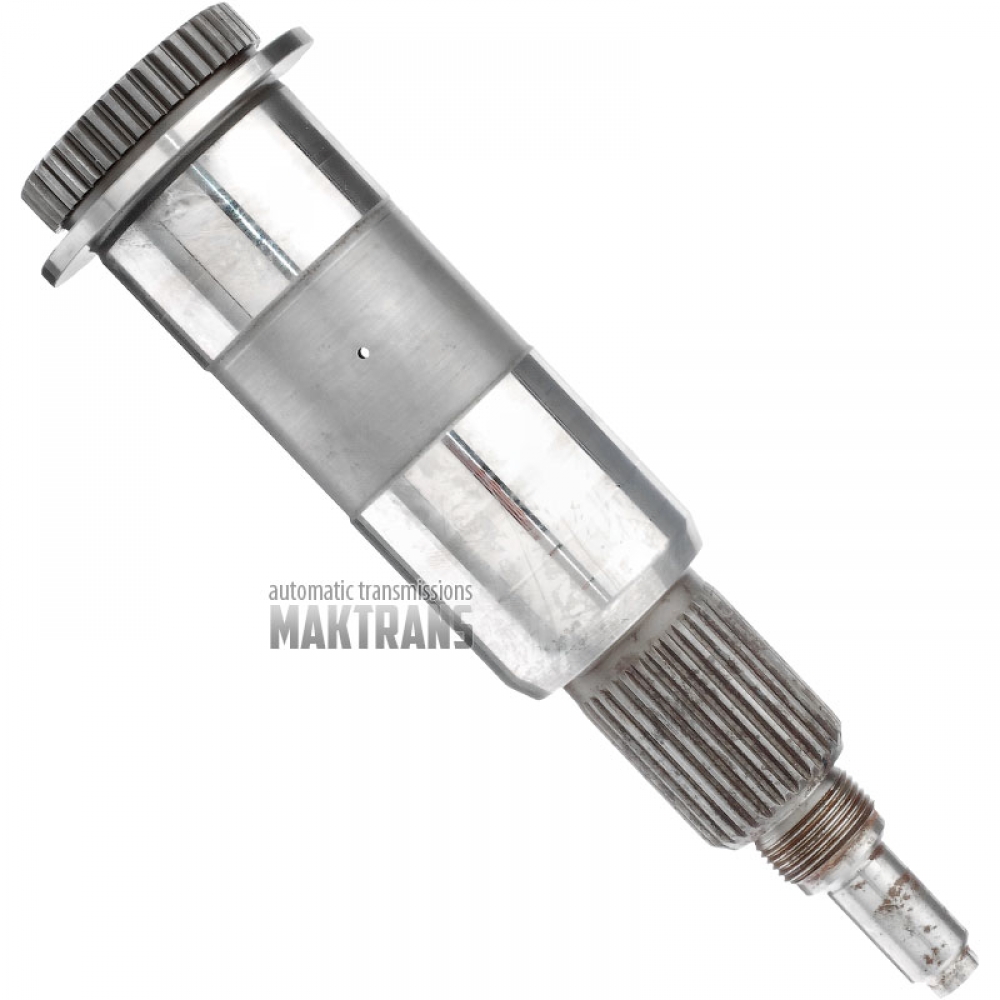

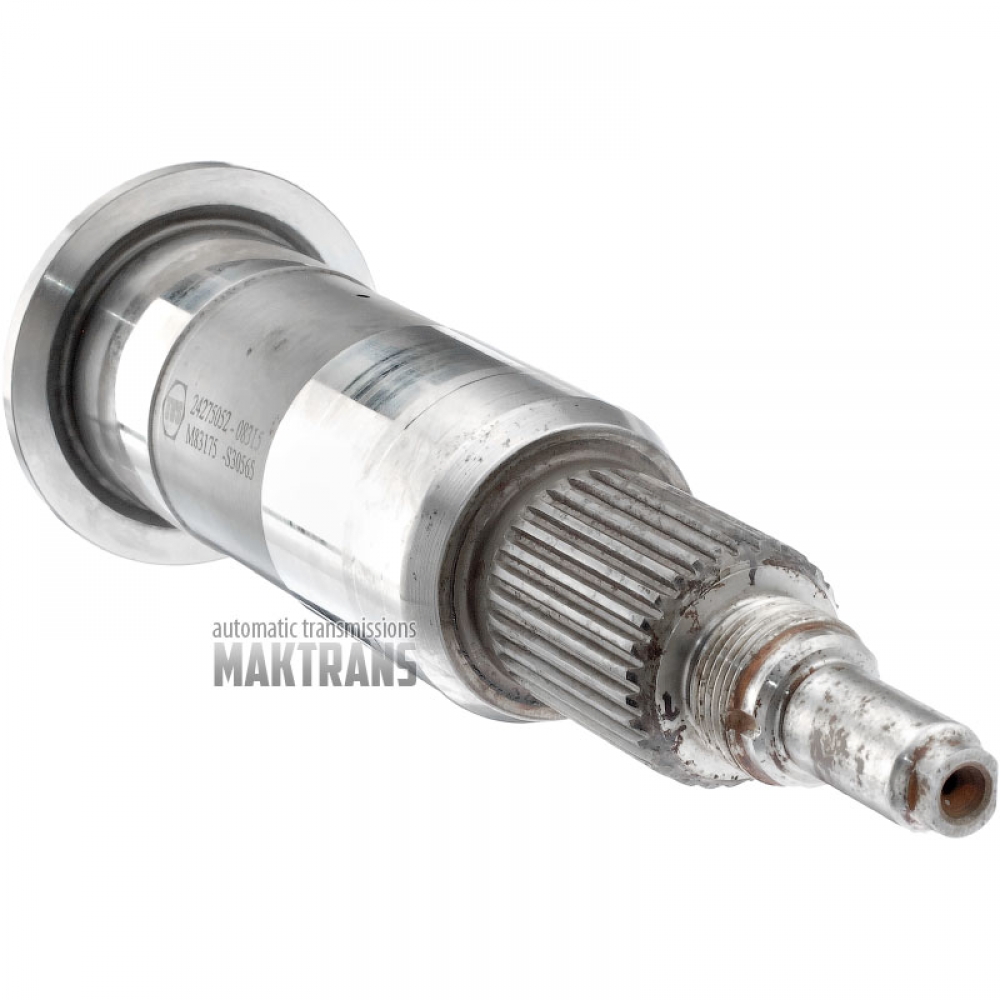

Output shaft 2WD GM 8L45 24275052 / length 215 mm, 30 splines / 39 splines (external)

Name: Output shaft 2WD GM 8L45 24275052 / length 215 mm, 30 splines / 39 splines (external)
Brand: GM
Price: 62.37 EUR
Availability: InStock

-40%

Discount

Output shaft 2WD GM 8L45 24275052 / length 215 mm, 30 splines / 39 splines (external)

Worldwide Shipping 🌎

Product Code:

24275052

Product model copied to clipboard

Brand

Availability: 4

Weight (kg): 1

€62.37

€103.95

Shipping Icon Shipping to United States from €50.51

Main Specifications

Condition (used, new): used and inspected

Type: output shaft

If you order more than 2 pcs - shipping time will be longer at few days

Stock Place:	Availability:	Price:	Qty:
Slovakia	2 pcs.	€62.37
Ukraine	2 pcs.	€62.37

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (2)

Total shaft length - 215 mm;
The outer diameter of the working parts of the shaft is 45 mm;
Number of splines on the shaft (flange side) - 30 pcs.;
The outer diameter of the spline part (flange side) is 32.45 mm;
The number of splines on the outer part is 39 pcs.;
The outer diameter of the outer spline part is 49.75 mm;
